Outside Rearview Mirror Glass Replacement

Removal Procedure

Outside Rearview Mirror Glass Replacement — figure 1
Outside Rearview Mirror Glass Replacement — figure 1
  1. Apply masking tape over the outside rearview mirror glass (1).
Outside Rearview Mirror Glass Replacement — figure 2
Outside Rearview Mirror Glass Replacement — figure 2
  1. Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Outside Rearview Mirror Glass Replacement — figure 3
Outside Rearview Mirror Glass Replacement — figure 3
  1. Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).

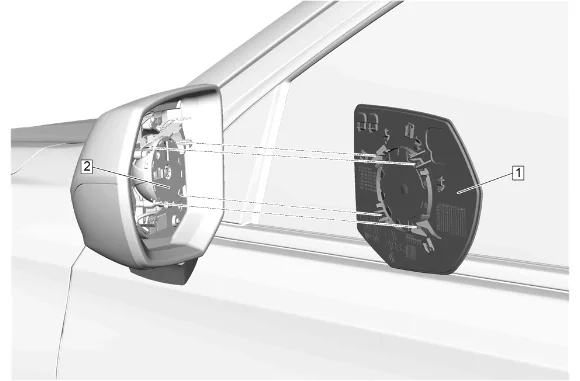

Outside Rearview Mirror Glass Replacement — figure 4
Outside Rearview Mirror Glass Replacement — figure 4

  1. Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).

  2. Disconnect all electrical connectors. Installation Procedure

  3. Connect all electrical connectors.

  4. Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).

  5. Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.

  6. Remove the masking tape from the outside rearview mirror glass (1).

  7. Inspect the outside rearview mirror for proper operation.
