Air Conditioning Evaporator Air Temperature Sensor Replacement

Air Conditioning Evaporator Air Temperature Sensor Replacement Removal Procedure

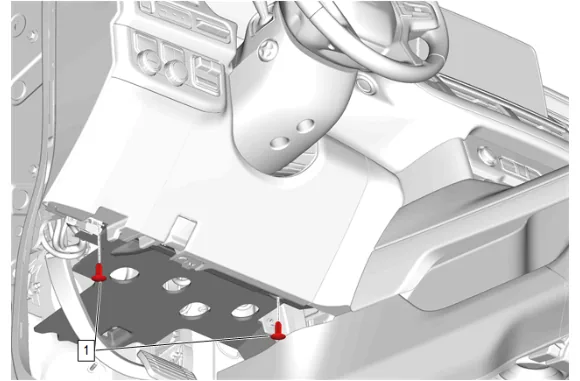

Air Conditioning Evaporator Air Temperature Sensor Replacement — figure 1

1. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

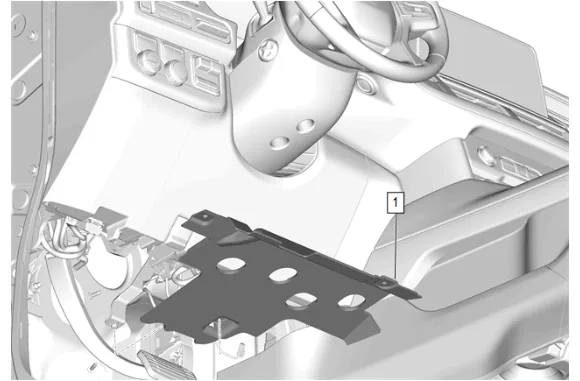

Air Conditioning Evaporator Air Temperature Sensor Replacement — figure 2

2. Instrument Panel Lower Trim Panel Insulator - Left Side (1) » Remove

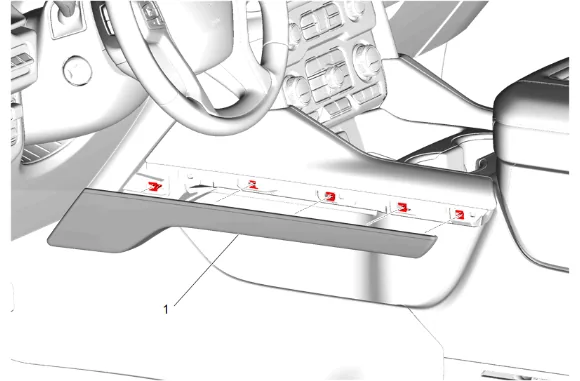

Air Conditioning Evaporator Air Temperature Sensor Replacement — figure 3

3. Front Floor Console Lower Applique (1) » Remove

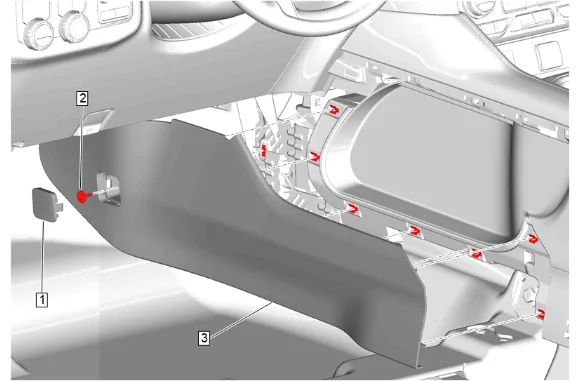

Air Conditioning Evaporator Air Temperature Sensor Replacement — figure 4

4. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
5. Front Floor Console Extension Bolt (2) » Remove
6. Position the front seat rearward to access the retainers.
7. Front Floor Console Extension Panel - Left Side (3) » Remove

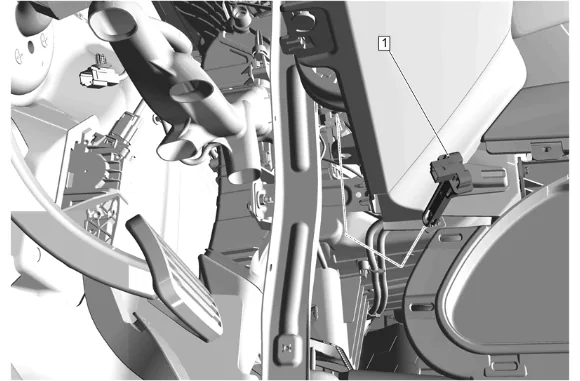

Air Conditioning Evaporator Air Temperature Sensor Replacement — figure 5

8. Air Conditioning Evaporator Air Temperature Sensor (1) » Remove

9. Disconnect the electrical connector. Installation Procedure

10. Air Conditioning Evaporator Air Temperature Sensor (1) » Install

11. Connect the electrical connector.

12. Front Floor Console Extension Panel - Left Side (3) » Install

Caution

Refer to Fastener Caution.

4. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

5. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

6. Front Floor Console Lower Applique (1) » Install

7. Instrument Panel Lower Trim Panel Insulator - Left Side (1) » Install

8. Instrument Panel Lower Insulator Retainer (1) » Install [2x]
