Evaporative Emission Canister Purge Solenoid Valve Replacement

Removal Procedure

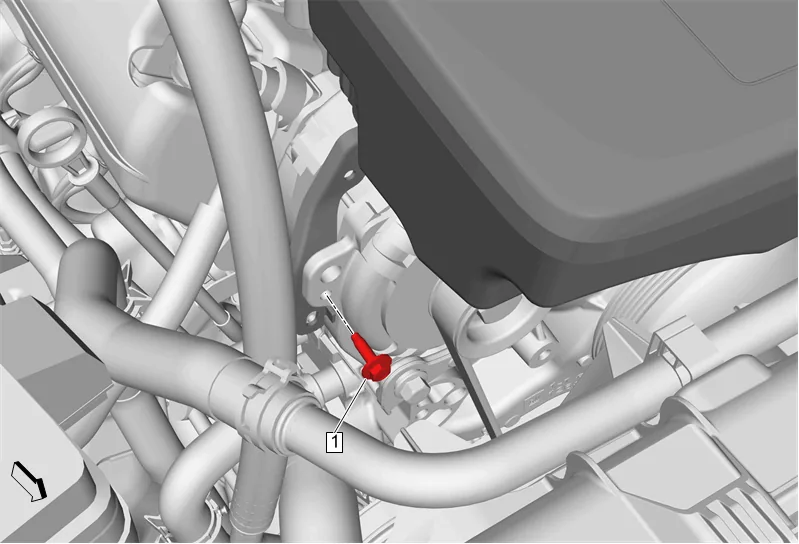

Evaporative Emission Canister Purge Solenoid Valve Replacement — figure 1

1. Air Cleaner Outlet Duct Bracket Bolt (1) » Remove
2. Remove engine wiring harness from air cleaner outlet duct bracket.

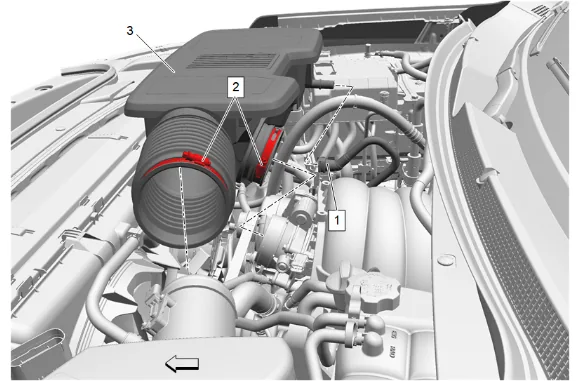

Evaporative Emission Canister Purge Solenoid Valve Replacement — figure 2

3. Positive Crankcase Ventilation Fresh Air Tube (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
4. Air Cleaner Outlet Duct Clamp (2) » Remove [2x]
5. Air Cleaner Outlet Duct (3) » Remove

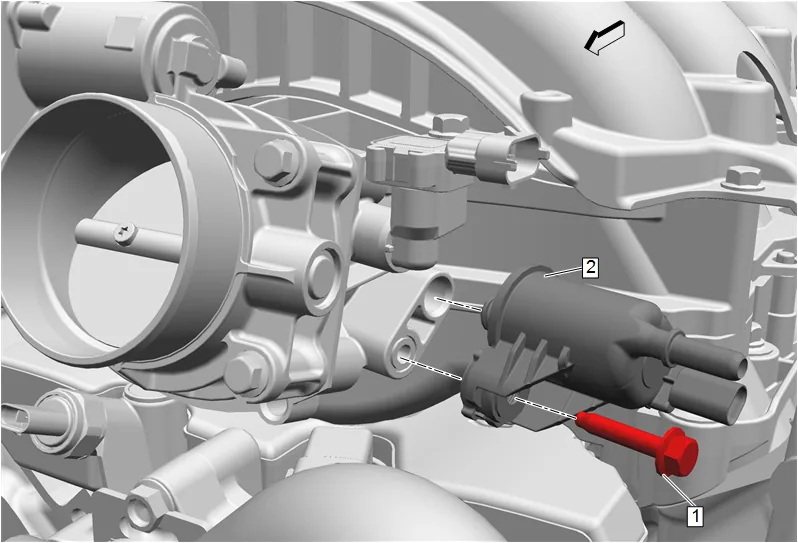

Evaporative Emission Canister Purge Solenoid Valve Replacement — figure 3

6. Disconnect the evaporative emission canister purge tube fitting. Plastic Collar Quick Connect Fitting Service

7. Disconnect the evaporative emission canister purge solenoid valve electrical connector.

8. Evaporative Emission Canister Purge Solenoid Valve Bolt (1) » Remove

9. Evaporative Emission Canister Purge Solenoid Valve (2) » Remove Installation Procedure

10. Evaporative Emission Canister Purge Solenoid Valve (2) » Install

Caution

Refer to Fastener Caution.

2. Evaporative Emission Canister Purge Solenoid Valve Bolt (1) » Install and tighten — Fastener Specifications

3. Connect the evaporative emission canister purge solenoid valve electrical connector.

4. Connect the evaporative emission canister purge tube fitting. Plastic Collar Quick Connect Fitting Service

5. Air Cleaner Outlet Duct (3) » Install

6. Air Cleaner Outlet Duct Clamp (2) » Install and tighten [2x] — Fastener Specifications

7. Positive Crankcase Ventilation Fresh Air Tube (1) » Connect — Plastic Collar Quick Connect Fitting Service

8. Air Cleaner Outlet Duct Bracket Bolt (1) » Install and tighten — Fastener Specifications

9. Install engine wiring harness to the air cleaner outlet duct bracket.
