Special Tools (3)
Special Tools Illustration Tool Number/Description
DT-35512 J-35512 Inner Pinion Bearing Installer
DT-36842 J-36842 Transaxle Holding Fixture
DT-42738 J-42738 Seal Installer
DT-44737 J-44737 Shift Rail Bearing Remover
DT-44907
Illustration Tool Number/Description J-44907 Bearing Installer
DT-45759 J-45759 Assembly Fixture
DT-48022 Output Bushing Installer
DT-48209 Bushing Remover
| Illustration | Tool Number/Description |
|---|---|
| DT-48210 Seal Installer | |
| DT-48211 Drive Sprocket Bearing Installer | |
| DT-48212 Input Shaft Pilot Bearing Installer | |
| DT-48213 Clutch Pack Height Gauge |
| Illustration | Tool Number/Description |
|---|---|
| DT-50228 Transfer Case Housing Separator | |
| DT-50648 Case Seal Installer | |
| DT-50648-A Seal Installer | |
| DT-50649 Seal Installer |
| Illustration | Tool Number/Description |
|---|---|
| DT-51329 Driveshaft Remover Adapter | |

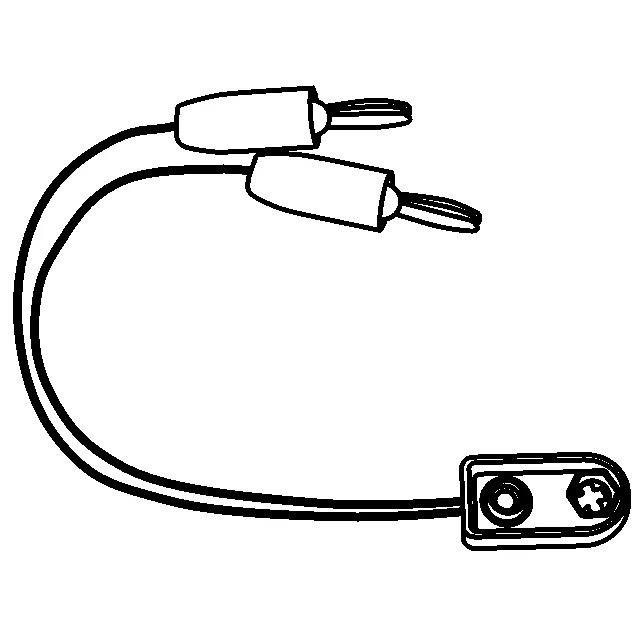

| EL-49741 9V + Power Source Harness | |

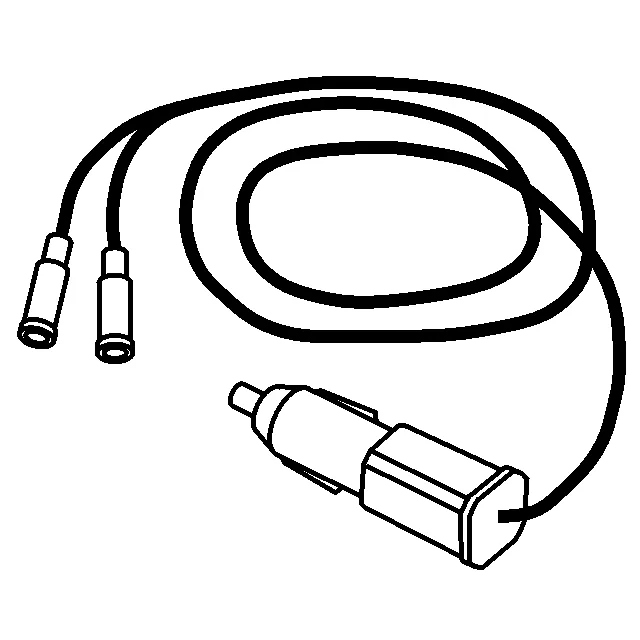

| EL-49742 Battery Voltage B+ and Ground Source Harness | |
| GE-8092 J-8092 Driver Handle |
| Illustration | Tool Number/Description |
|---|---|
| GE-02619-A J-02619-A Slide Hammer | |
| GE-3289-20 J-3289-20 Holding Fixture | |
| J-36614 Inner Pinion Bearing Installer | |
| J-44636-1 Front Output Shaft Seal Protector |
| Illustration | Tool Number/Description |
|---|---|
| J-44636-2 Front Output Shaft Seal Installer | |
| J-45278 Seal Remover | |
| J-25234 Gear and Bearing Installer |
