Rear Seat Belt Opening Bezel Replacement (3rd Row)

Removal Procedure

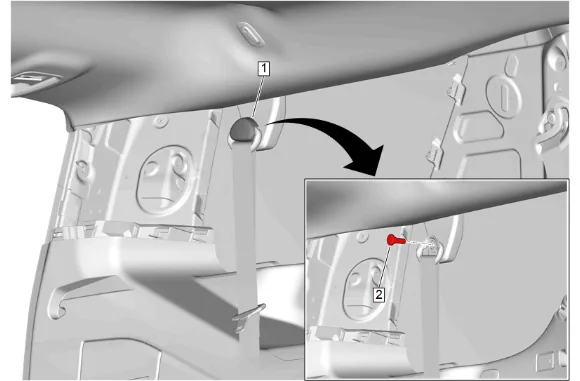

Rear Seat Belt Opening Bezel Replacement (3rd Row) — figure 1

1. 3rd Row Seat Belt Guide Cover (1) » Open
2. Rear Seat Belt Guide Bolt (2) » Remove

Rear Seat Belt Opening Bezel Replacement (3rd Row) — figure 2

3. 3rd Row Seat Belt Guide (1) » Reposition

4. Using a suitable trim tool, gently pry and pull downwards on the rear seat belt opening bezel (2) to release the retaining clip.

5. Rear Seat Belt Opening Bezel (2) » Remove Installation Procedure

6. Rear Seat Belt Opening Bezel (2) » Install

7. 3rd Row Seat Belt Guide (1) » Install

Caution

Refer to Fastener Caution.

3. Rear Seat Belt Guide Bolt (2) » Install and tighten — Fastener Specifications
4. 3rd Row Seat Belt Guide Cover (1) » Close
