Clutch Assemblies and Associated Parts

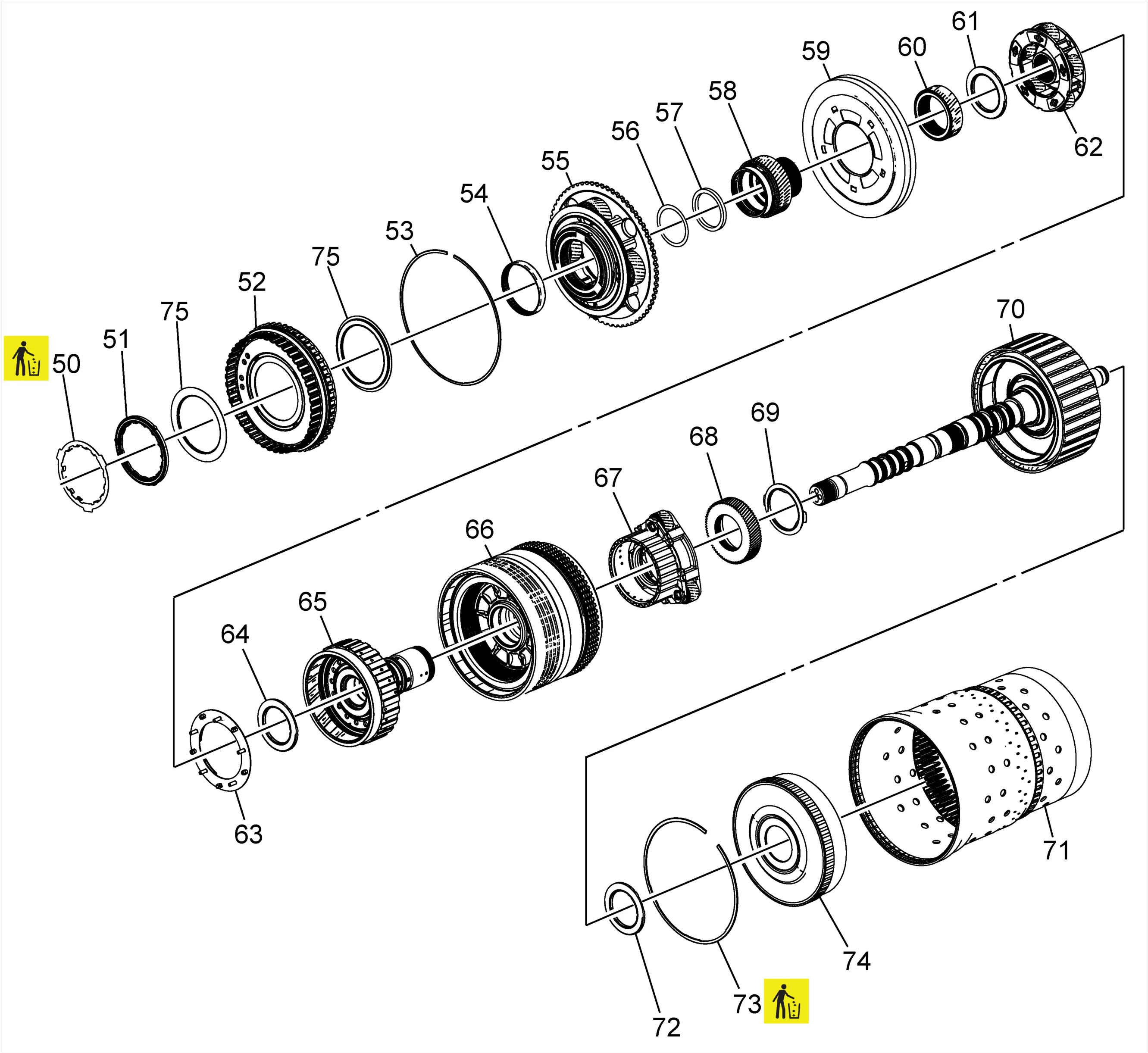

Clutch Assemblies and Associated Parts — figure 1

(50) Reaction Internal Gear Spacer Retainer (51) Reaction Internal Gear Spacer (52) Reaction Internal Gear (53) Reaction Carrier Hub Retaining Ring (54) Reaction Carrier Hub Bearing (55) Reaction Carrier (56) Transmission Case Washer (57) Reaction Sun Gear Thrust Bearing (58) Reaction Sun Gear (59) Automatic Transmission Input Shaft Speed Sensor Reluctor Wheel (60) Input Sun Gear (61) Input Sun Gear Thrust Bearing (62) Input Carrier (63) Input Carrier Lube Dam (64) Input Sun Gear Thrust Bearing (65) Direct Overdrive Sun Gear Shaft (66) Triple Clutch Housing (67) Direct Overdrive Carrier (68) Direct Overdrive Sun Gear (69) Direct Overdrive Sun Gear Thrust Bearing (70) Main Shaft (71) Output Carrier Internal Gear Transfer Shell (72) Output Carrier Thrust Bearing (73) Output Carrier Internal Gear Retaining Ring (74) Output Carrier Internal Gear (75) Reaction Internal Gear Thrust Bearing
