Tahoe / Yukon Service Manual

Underbody Splash Shield Replacement (With RC1)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

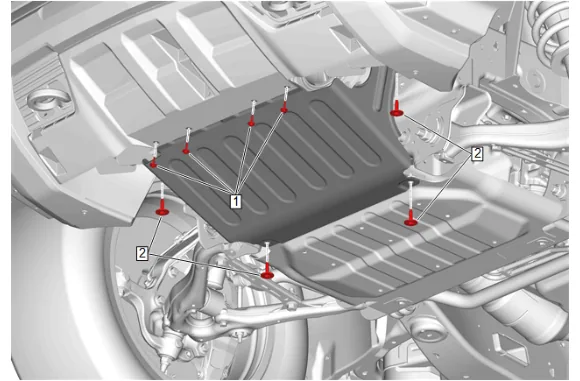

Underbody Splash Shield Replacement (With RC1) — figure 1
Underbody Splash Shield Replacement (With RC1) — figure 1
  1. Front Bumper Fascia Skid Plate Bolt (1) » Remove [4x]
  2. Underbody Skid Shield Bolt (2) » Remove [4x]

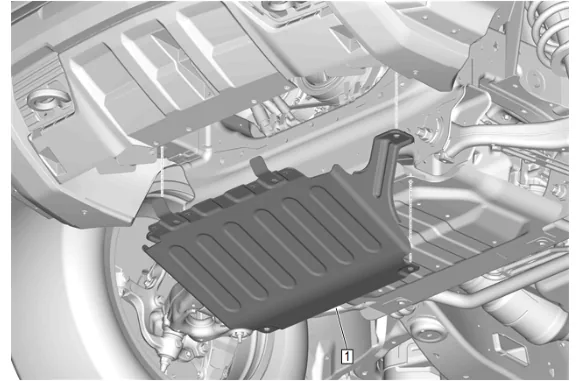

Underbody Splash Shield Replacement (With RC1) — figure 2
Underbody Splash Shield Replacement (With RC1) — figure 2

  1. Underbody Splash Shield (1) » Remove Installation Procedure

  2. Underbody Splash Shield (1) » Install

  1. Underbody Skid Shield Bolt (2) » Install and tighten [4x] — Fastener Specifications
  2. Front Bumper Fascia Skid Plate Bolt (1) » Install and tighten [4x] — Fastener Specifications
  3. Lower the vehicle.
