Front Side Door Window Frame Rear Applique Replacement

Front Side Door Window Frame Rear Applique Replacement Removal Procedure

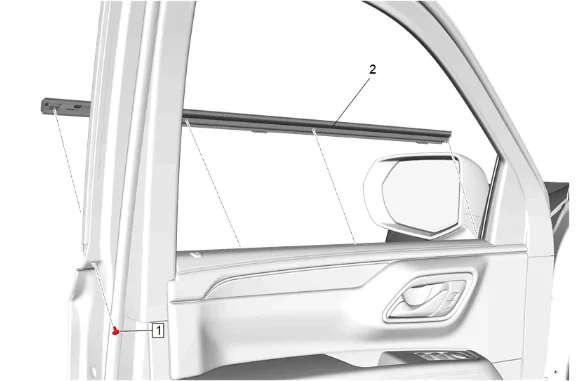

Front Side Door Window Frame Rear Applique Replacement — figure 1

1. Front Side Door Window Belt Reveal Molding Bolt (1) » Remove
2. Front Side Door Window Belt Reveal Molding (2) » Remove

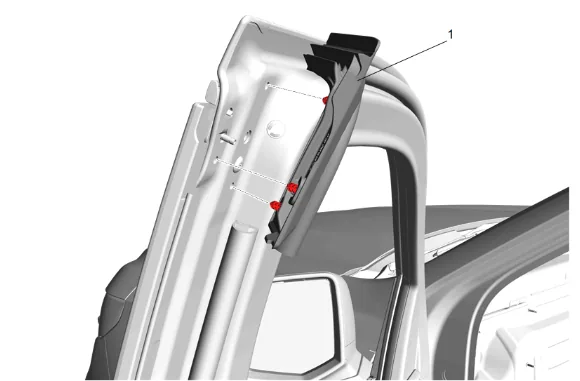

Front Side Door Window Frame Rear Applique Replacement — figure 2

3. Release the upper corner of the front side door window frame weatherstrip (1) to gain access to the front side door window frame rear applique bolt.

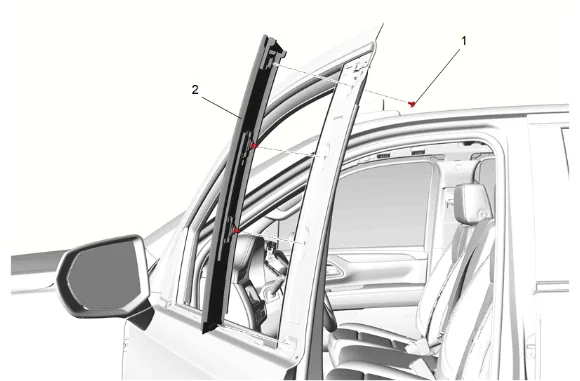

Front Side Door Window Frame Rear Applique Replacement — figure 3

4. Front Side Door Window Frame Rear Applique Bolt (1) » Remove

5. Front Side Door Window Frame Rear Applique (2) » Remove Installation Procedure

6. Front Side Door Window Frame Rear Applique (2) » Install

Caution

Refer to Fastener Caution.

2. Front Side Door Window Frame Rear Applique Bolt (1) » Install and tighten — Fastener Specifications

3. Install the upper corner of the front side door window frame weatherstrip (1) back onto the front side door window frame.

4. Front Side Door Window Belt Reveal Molding (2) » Install

5. Front Side Door Window Belt Reveal Molding Bolt (1) » Install and tighten — Fastener Specifications
