Rear Seat Riser Inner Finish Cover Replacement - Inboard (Bucket)

Rear Seat Riser Inner Finish Cover Replacement - Inboard (Bucket) Removal Procedure

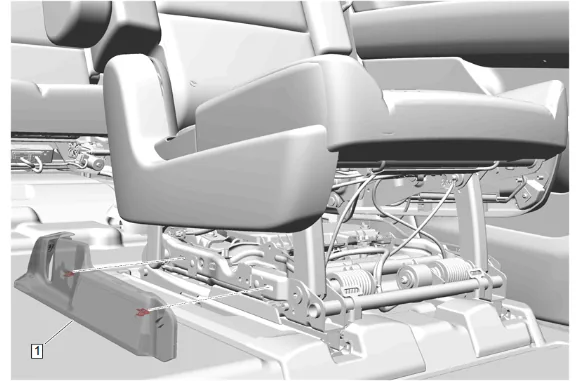

Rear Seat Riser Inner Finish Cover Replacement - Inboard (Bucket) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Rear Seat Riser Finish Cover (1) » Remove

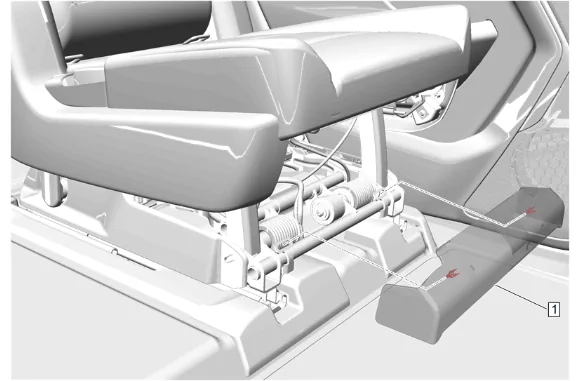

Rear Seat Riser Inner Finish Cover Replacement - Inboard (Bucket) — figure 2

Note

Left side shown, right side similar.

3. Using a flat-bladed plastic trim tool, release the retaining clip.
4. Rear Seat Riser Finish Cover (1) » Remove

Rear Seat Riser Inner Finish Cover Replacement - Inboard (Bucket) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.

6. Using a suitable plastic trim tool, release the retaining tabs.

7. Rear Seat Riser Inner Finish Cover - Inboard (1) » Remove Installation Procedure

8. Rear Seat Riser Inner Finish Cover - Inboard (1) » Install

Note

Left side shown, right side similar.

2. Rear Seat Riser Finish Cover (1) » Install

3. Rear Seat Riser Finish Cover (1) » Install
