Tahoe / Yukon Service Manual

Outside Rearview Mirror Turn Signal Lamp Replacement

Removal Procedure

Outside Rearview Mirror Turn Signal Lamp Replacement — figure 1
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 1
  1. Apply masking tape over the outside rearview mirror glass (1).
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 2
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 2
  1. Apply pressure inward at the top of the outside rearview mirror glass (1) until full travel is reached.
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 3
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 3
  1. Firmly grasp the outer bottom edge of the outside rearview mirror glass (1).

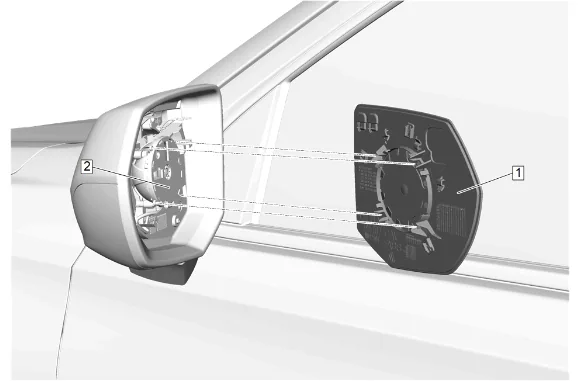

Outside Rearview Mirror Turn Signal Lamp Replacement — figure 4
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 4
  1. Retaining pressure on the outside rearview mirror glass (1), pull outward until the outside rearview mirror glass is released from the outside rearview mirror actuator (2).
  2. Disconnect all electrical connectors.

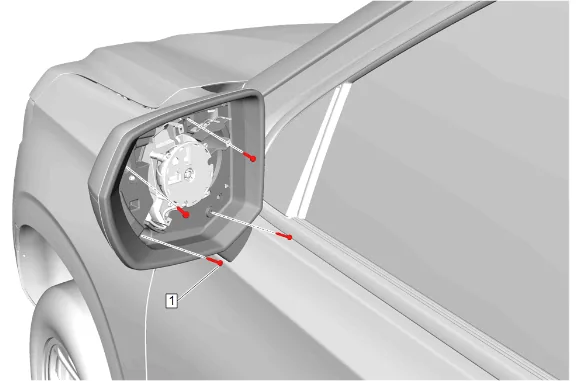

Outside Rearview Mirror Turn Signal Lamp Replacement — figure 5
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 5
  1. Outside Rearview Mirror Opening Applique Bolt (1) » Remove [4x]

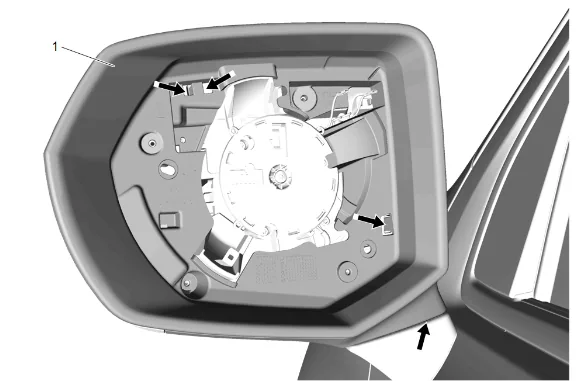

Outside Rearview Mirror Turn Signal Lamp Replacement — figure 6
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 6
  1. Release the retaining tabs on the outside rearview mirror housing bezel (1).

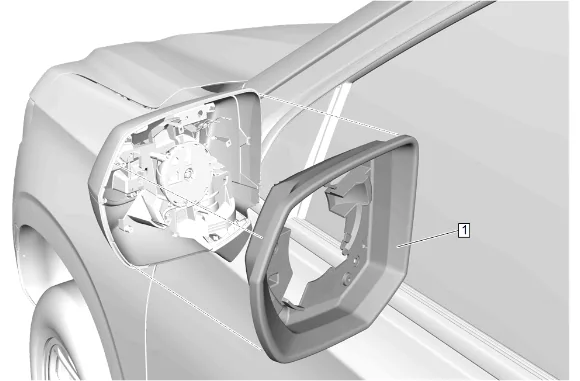

Outside Rearview Mirror Turn Signal Lamp Replacement — figure 7
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 7
  1. Outside Rearview Mirror Housing Bezel (1) » Remove

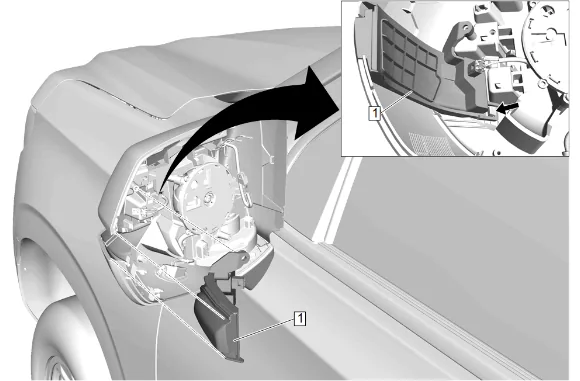

Outside Rearview Mirror Turn Signal Lamp Replacement — figure 8
Outside Rearview Mirror Turn Signal Lamp Replacement — figure 8

  1. Release the retaining tab.

  2. Outside Rearview Mirror Turn Signal Lamp (1) » Remove

  3. Disconnect the electrical connector. Installation Procedure

  4. Connect the electrical connector.

  5. Outside Rearview Mirror Turn Signal Lamp (1) » Install

  6. Secure the retaining tab.

  7. Outside Rearview Mirror Housing Bezel (1) » Install

  8. Ensure the retaining tabs on the outside rearview mirror housing bezel (1) have fully secured.

  1. Outside Rearview Mirror Opening Applique Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Connect all electrical connectors.

  3. Carefully align the outside rearview mirror glass (1) retainers with the outside rearview mirror actuator (2).

  4. Place one hand on the back of the mirror housing and carefully apply pressure to outside rearview mirror glass (1) until outside rearview mirror glass is fully secured.

  5. Remove the masking tape from the outside rearview mirror glass (1).

  6. Inspect the outside rearview mirror for proper operation.
