Front Grille Support Reinforcement Replacement
Removal Procedure

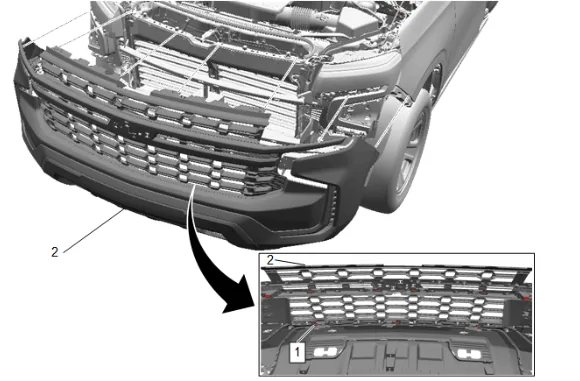

- Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

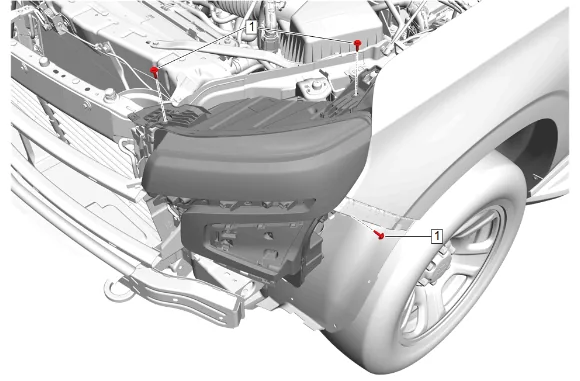

- Headlamp Bolt (1) » Remove [6x]
- Headlamp Bolt (1) » Remove [6x]

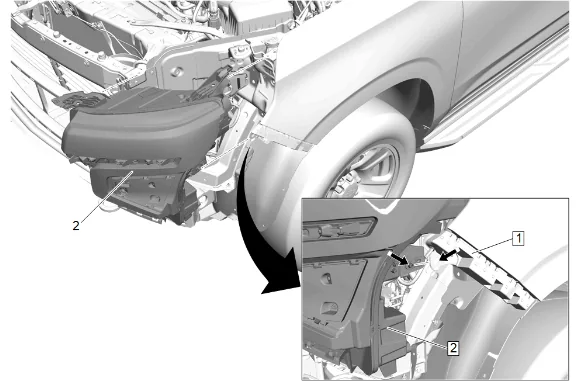

- Release the front headlamp guide pin from the front bumper fascia guide (1).
- Front Headlamp (2) » Remove [2x]

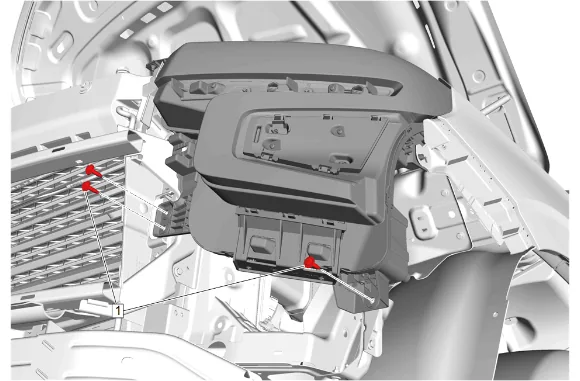

- Release the wiring harness retaining tab.
- Disconnect all electrical connectors.

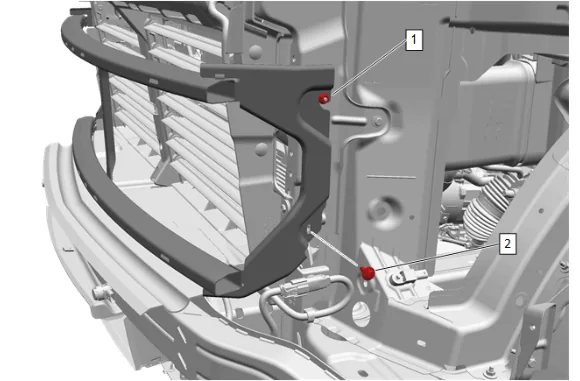

- Loosen the left and right side front bumper fascia upper stiffener nut (1).
- Remove the left and right side front bumper fascia upper stiffener bolt (2).

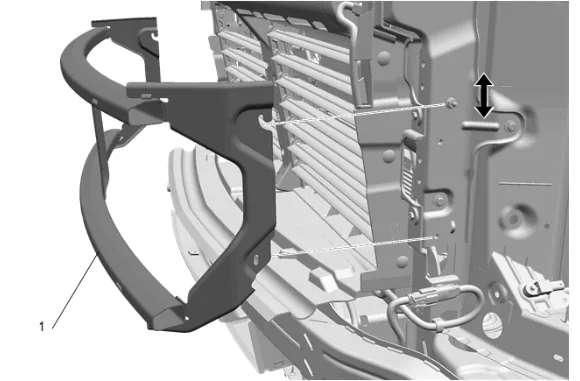

- Pull the front bumper fascia upper stiffener (1) up and out over the stud.

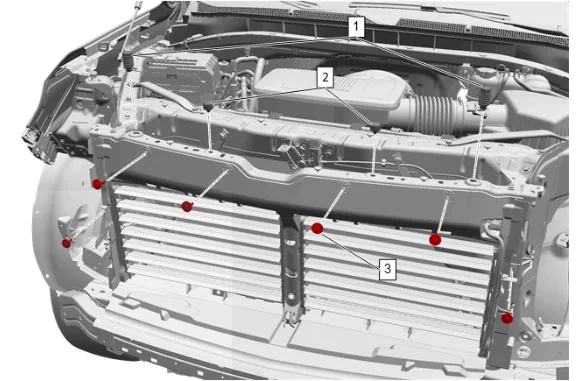

- Remove the 2 outer hood front bumpers (1).
- Hood Front Bumper (2) » Remove [2x]
- Remove the top 6 front bumper shutter bolts (3) and carefully reposition the front bumper shutter away from the front grille support reinforcement.
-

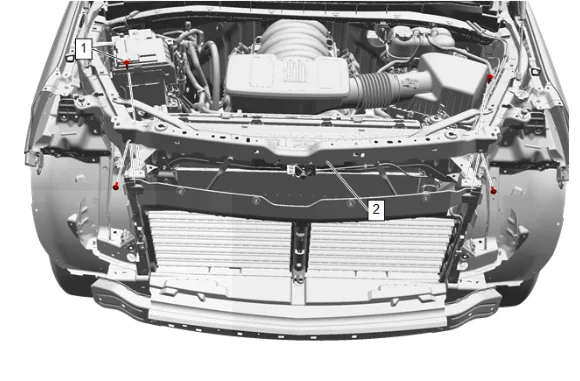

Front Grille Support Bracket Bolt (1) » Remove [4x]
-
Front Grille Support Reinforcement (2) » Remove Installation Procedure
-
Front Grille Support Reinforcement (2) » Install
-
Front Grille Support Bracket Bolt (1) » Install and tighten [4x] — Fastener Specifications
-
Front Bumper Shutter Bolt (3) » Install and tighten [6x] — Fastener Specifications
-
Hood Front Bumper (2) » Install [2x]
-
Install the 2 outer hood front bumpers (1).
-
Front Bumper Fascia Upper Stiffener (1) » Install
-
Install and tighten the left and right side front bumper fascia upper stiffener bolt (2). Fastener Specifications
-
Tighten the left and right side front bumper fascia upper stiffener nut (1). Fastener Specifications
-
Connect all electrical connectors.
-
Secure the wiring harness retaining tab.
-
Front Headlamp (2) » Install [2x]
-
Secure the front headlamp guide pin to the front bumper fascia guide (1).
-
Headlamp Bolt (1) » Install and tighten [6x] — Fastener Specifications
-
Headlamp Bolt (1) » Install and tighten [6x] — Fastener Specifications
-
Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
