Restraints Control Module Replacement

Removal Procedure

Warning

Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

Warning

Refer to SIR Warning.

1. Disable the SIR system. SIR Disabling and Enabling
2. Front Floor Console » Remove — Front Floor Console Removal and Installation

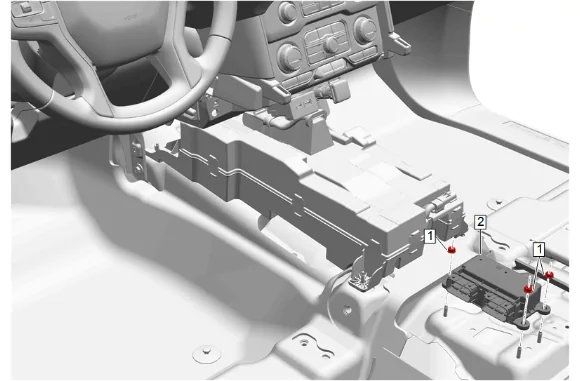

Restraints Control Module Replacement — figure 1

3. Airbag Sensing and Diagnostic Module Nut (1) » Remove [3x]

4. Restraints Control Module (2) » Remove

5. Disconnect the electrical connector. Installation Procedure

6. Connect the electrical connector.

7. Restraints Control Module (2) » Install

Caution

Refer to Fastener Caution.

3. Airbag Sensing and Diagnostic Module Nut (1) » Install and tighten [3x] — Fastener Specifications
4. Front Floor Console » Install — Front Floor Console Removal and Installation
5. Enable the SIR System. SIR Disabling and Enabling.
6. Perform the necessary programming and setup procedure: Control Module References
