Low Frequency Console Antenna Replacement (D07)

Removal Procedure

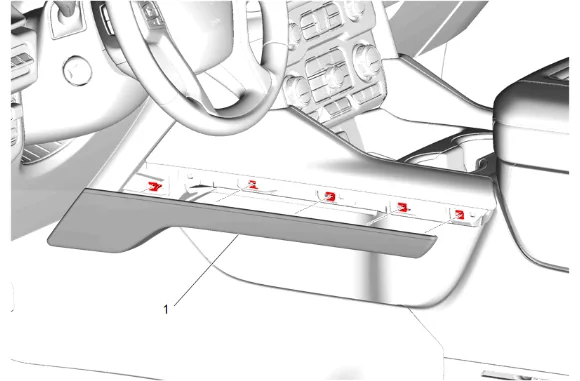

Low Frequency Console Antenna Replacement (D07) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

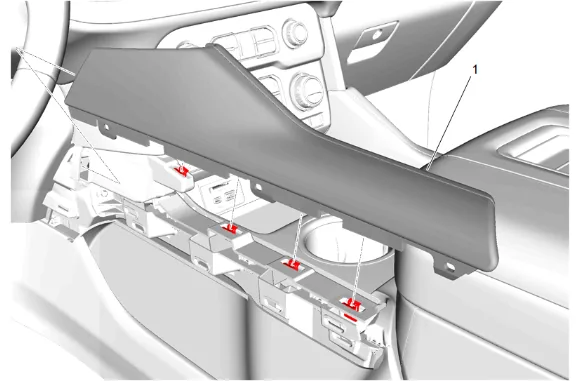

Low Frequency Console Antenna Replacement (D07) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

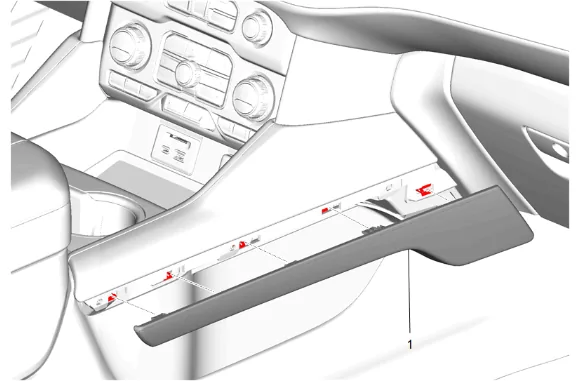

Low Frequency Console Antenna Replacement (D07) — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Front Floor Console Lower Applique (1) » Remove

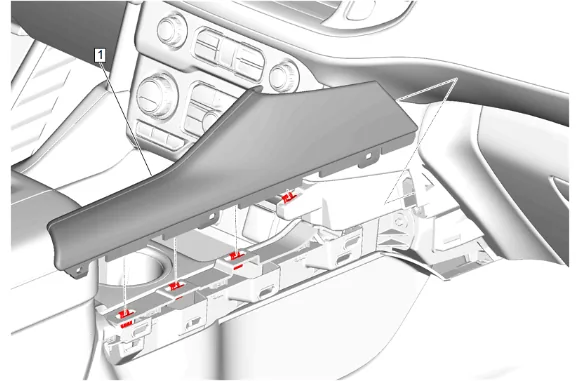

Low Frequency Console Antenna Replacement (D07) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Front Floor Console Applique (1) » Remove

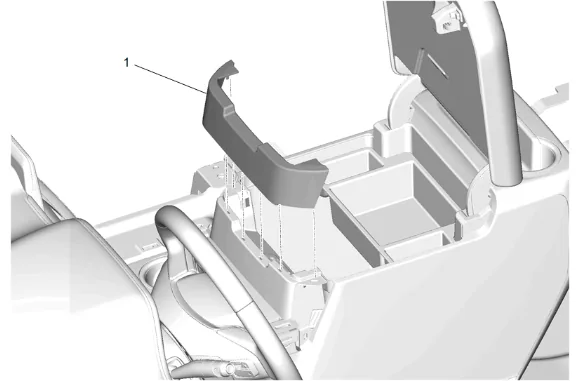

Low Frequency Console Antenna Replacement (D07) — figure 5

9. Using a suitable plastic trim tool, release the retaining tabs.
10. Front Floor Rear Console Side Trim Panel (1) » Remove

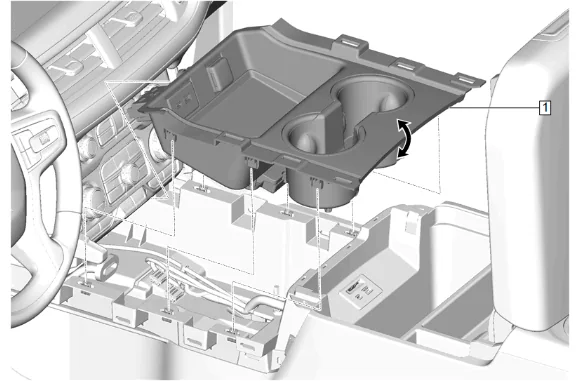

Low Frequency Console Antenna Replacement (D07) — figure 6

11. Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.
12. Disconnect the electrical connectors.
13. Front Floor Console Cup Holder Trim Plate (1) » Remove

Low Frequency Console Antenna Replacement (D07) — figure 7

14. Theft Deterrent Module Bolt (1) » Remove [2x]

15. Low Frequency Console Antenna (2) » Remove Installation Procedure

16. Low Frequency Console Antenna (2) » Install

Caution

Refer to Fastener Caution.

2. Theft Deterrent Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connectors.

4. Front Floor Console Cup Holder Trim Plate (1) » Install

5. Front Floor Rear Console Side Trim Panel (1) » Install

6. Front Floor Console Applique (1) » Install

7. Front Floor Console Lower Applique (1) » Install

8. Front Floor Console Applique (1) » Install

9. Front Floor Console Lower Applique (1) » Install
