Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe)

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) Single Use Fasteners and Components Air Conditioning Evaporator Seal - Small Air Conditioning Evaporator Seal - Large Removal Procedure

  1. Heater and Air Conditioning Evaporator and Blower Module » Remove — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation

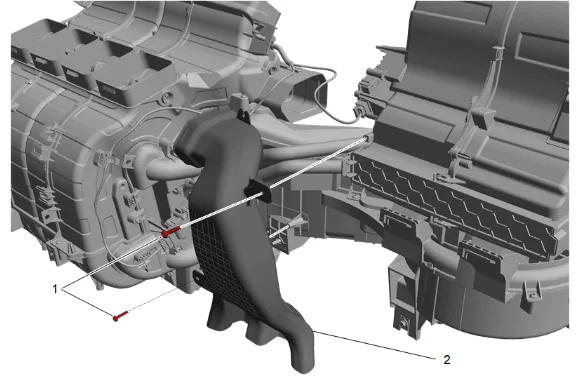

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 1
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 1
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
  2. Floor Front Air Outlet Duct - Right Side (2) » Remove

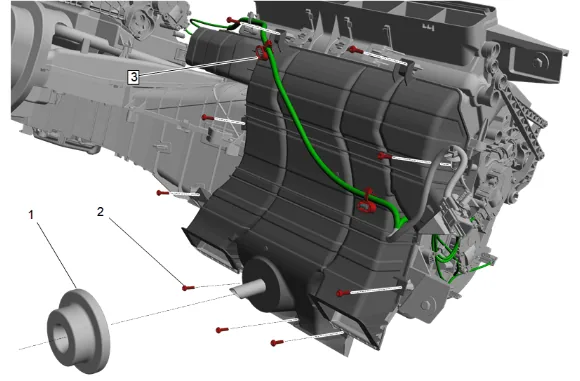

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 2
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 2
  1. Air Conditioning Evaporator Case Drain Tube Seal (1) » Remove
  2. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Remove [9x]
  3. Wiring Harness Retainer (3) » Remove [2x]

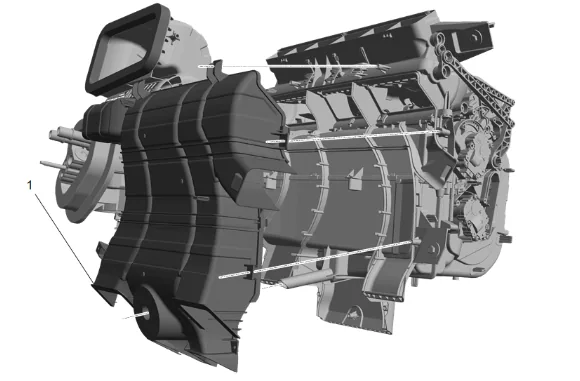

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 3
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 3
  1. Heater And Air Conditioning Evaporator Module Cover (1) » Remove

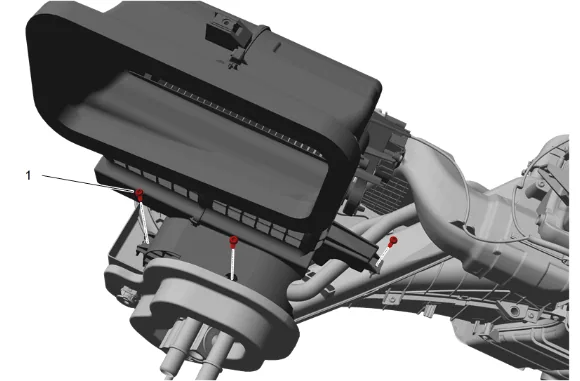

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 4
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 4
  1. Air Inlet Housing Bolt (1) » Remove [3x]

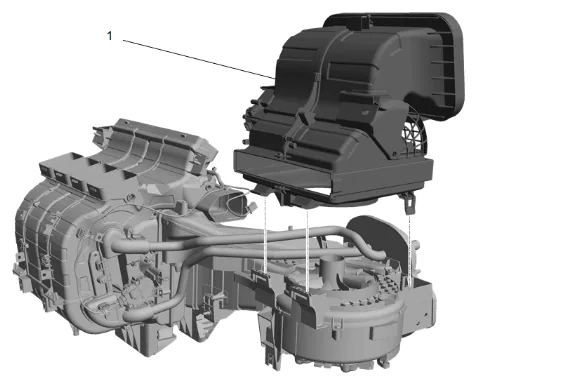

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 5
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 5
  1. Air Inlet Housing (1) » Remove
  2. Disconnect the electrical connector.

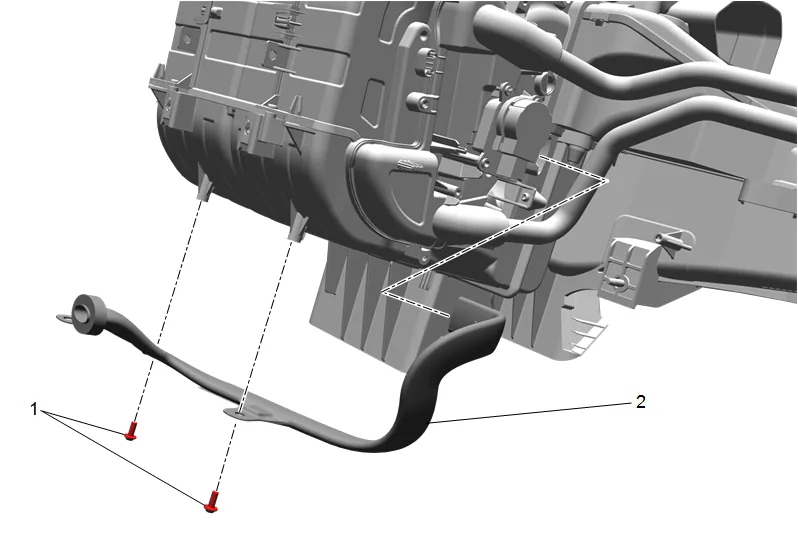

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 6
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 6
  1. { If equipped } Front Floor Console Auxiliary Cooling Duct Bolt (1) » Remove [2x]
  2. { If equipped } Front Floor Console Auxiliary Cooling Duct (2) » Remove

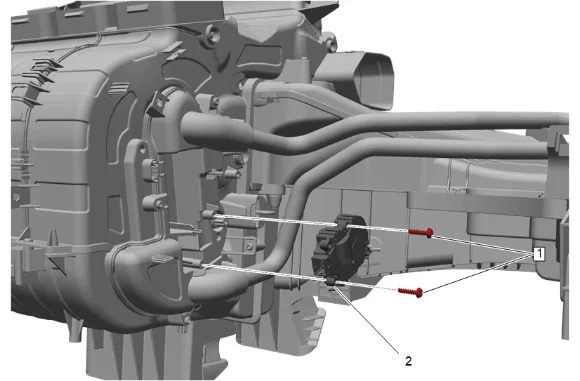

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 7
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 7
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]
  2. { If equipped } Temperature Valve Actuator - Right Side (2) » Remove
  3. Disconnect the electrical connector.

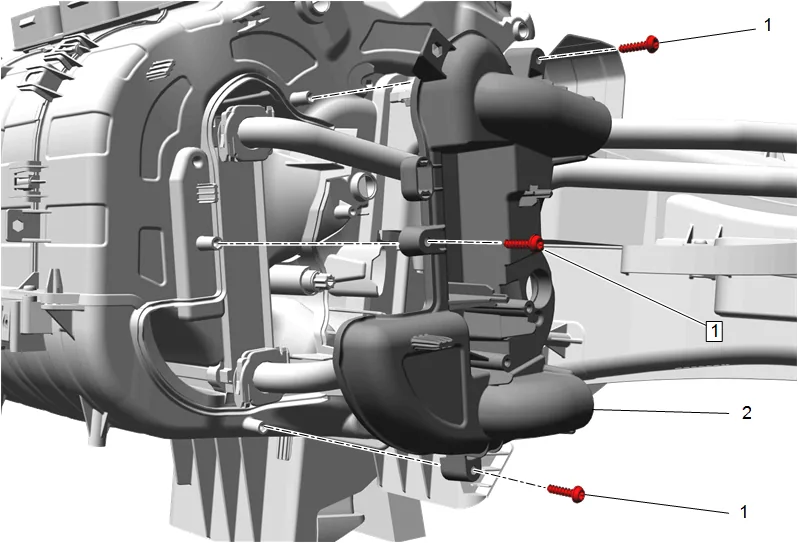

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 8
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 8
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [3x]
  2. Heater Cover (2) » Remove

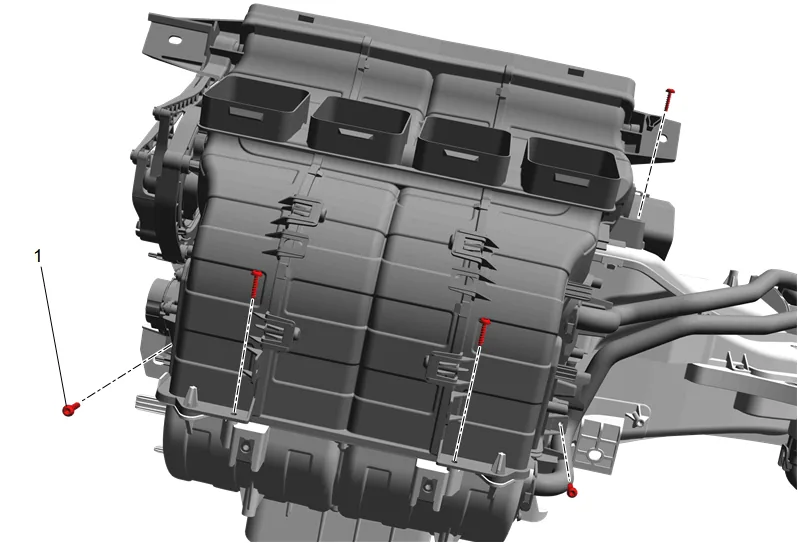

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 9
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 9
  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [5x]

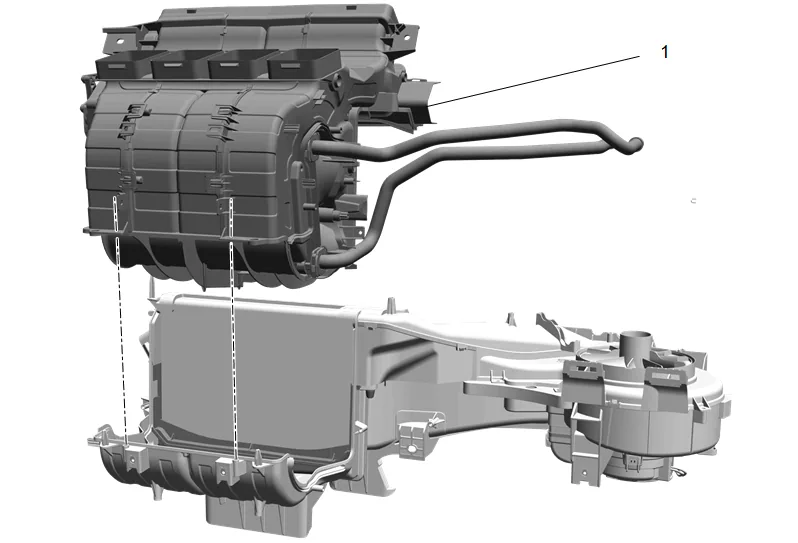

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 10
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 10
  1. Heater and Air Conditioning Evaporator Case (1) » Remove

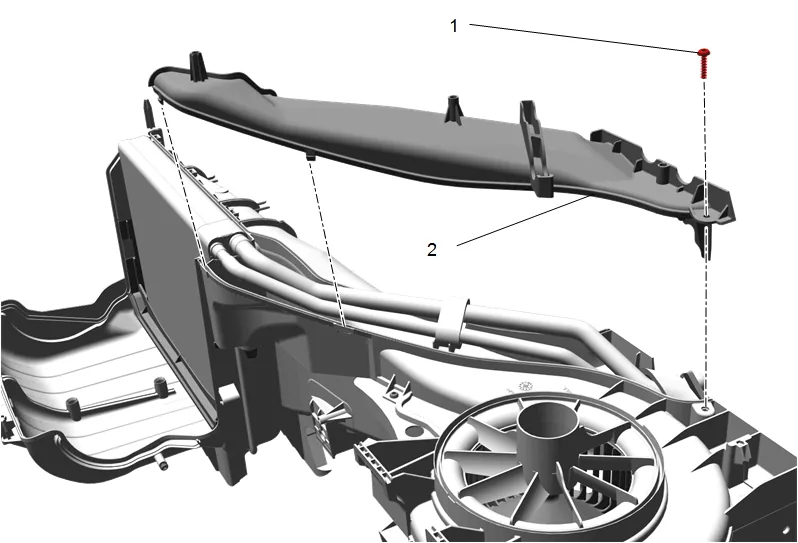

Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 11
Heater and Air Conditioning Evaporator Module Cover Replacement (Evaporator Pipe) — figure 11

  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove

  2. Heater And Air Conditioning Evaporator Module Cover (2) » Remove Installation Procedure

  3. Heater And Air Conditioning Evaporator Module Cover (2) » Install

  1. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten — Fastener Specifications

  2. Heater and Air Conditioning Evaporator Case (1) » Install

  3. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [5x] — Fastener Specifications

  4. Heater Cover (2) » Install

  5. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [3x] — Fastener Specifications

  6. { If equipped } Temperature Valve Actuator - Right Side » Install

  7. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  8. Connect the electrical connector.

  9. { If equipped } Front Floor Console Auxiliary Cooling Duct (2) » Install

  10. { If equipped } Front Floor Console Auxiliary Cooling Duct Bolt (1) » Install and tighten [2x] — Fastener Specifications

  11. Air Inlet Housing (1) » Install

  12. Air Inlet Housing Bolt (1) » Install and tighten [3x] — Fastener Specifications

  13. Connect the electrical connector.

  14. Heater And Air Conditioning Evaporator Module Cover (1) » Install

  15. Wiring Harness Retainer (3) » Install [2x]

  16. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Install and tighten [9x] — Fastener Specifications

  17. Air Conditioning Evaporator Case Drain Tube Seal (1) » Install

  18. Floor Front Air Outlet Duct - Right Side (2) » Install

  19. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

  20. Heater and Air Conditioning Evaporator and Blower Module » Install — Heater and Air Conditioning Evaporator and Blower Module Removal and Installation
