Radiator Surge Tank Outlet Hose Replacement (L84, L87)

Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling

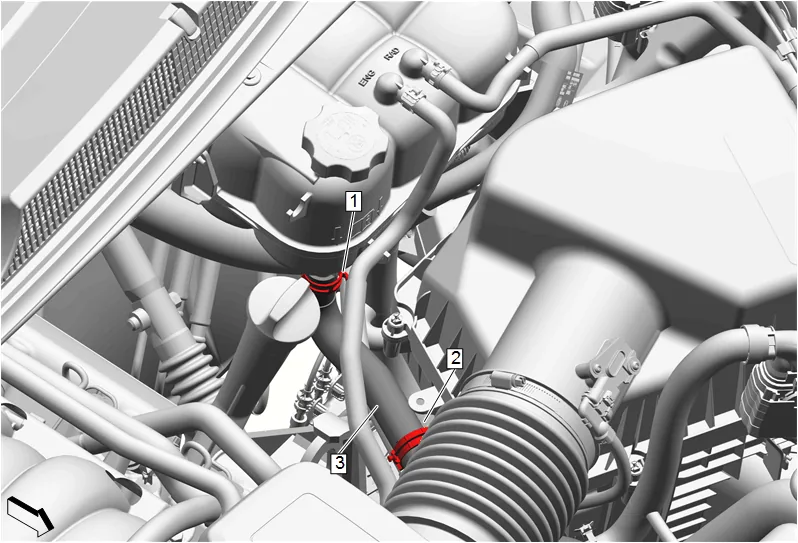

Radiator Surge Tank Outlet Hose Replacement (L84, L87) — figure 1

2. Radiator Surge Tank Outlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
3. Radiator Surge Tank Outlet Hose (3) @ Radiator Surge Tank » Remove
4. Engine Wiring Harness Clip (2) @ Radiator Surge Tank Outlet Hose (3) » Remove

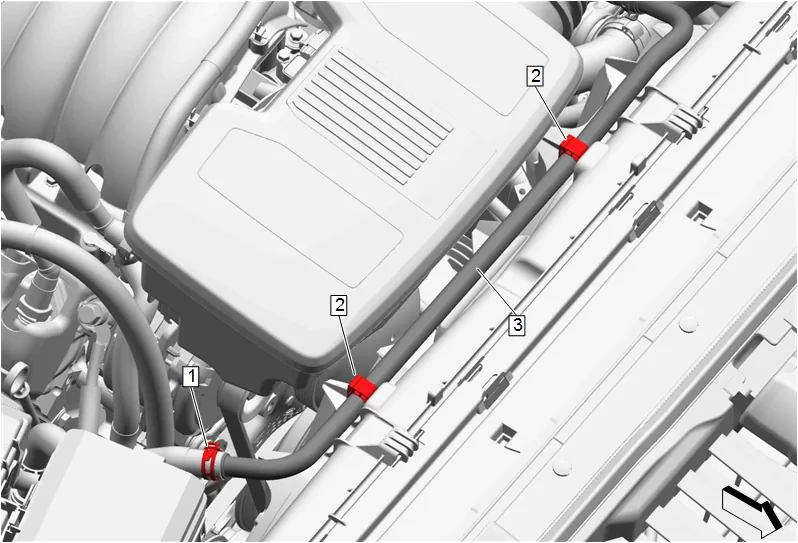

Radiator Surge Tank Outlet Hose Replacement (L84, L87) — figure 2

5. Heater Outlet Hose Clamp (1) @ Radiator Surge Tank Outlet Hose » Disengage — Hose Clamp Replacement Guidelines - Spring Type

6. Radiator Surge Tank Outlet Hose Clip (2) @ Engine Coolant Fan Rear Shroud » Remove [2x]

7. Radiator Surge Tank Outlet Hose (3) » Remove Installation Procedure

8. Radiator Surge Tank Outlet Hose (3) » Install

9. Radiator Surge Tank Outlet Hose Clip (2) @ Engine Coolant Fan Rear Shroud » Install [2x]

10. Heater Outlet Hose Clamp (1) @ Radiator Surge Tank Outlet Hose » Engage — Hose Clamp Replacement Guidelines - Spring Type

11. Engine Wiring Harness Clip (2) @ Radiator Surge Tank Outlet Hose (3) » Install

12. Radiator Surge Tank Outlet Hose (3) @ Radiator Surge Tank » Install

13. Radiator Surge Tank Outlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

14. Fill the cooling system to the proper level. Cooling System Draining and Filling

15. Start the engine and check for coolant leaks.
