Rear Seat Belt Buckle Replacement (40 Percent, Bucket with UH5)

Rear Seat Belt Buckle Replacement (40 Percent, Bucket with UH5) Removal Procedure

Rear Seat Belt Buckle Replacement (40 Percent, Bucket with UH5) — figure 1

1. Rear Seat Cushion Cover and Pad (1) Remove — Rear Seat Cushion Cover and Pad Removal and Installation

Rear Seat Belt Buckle Replacement (40 Percent, Bucket with UH5) — figure 2

2. Disconnect the electrical connector.

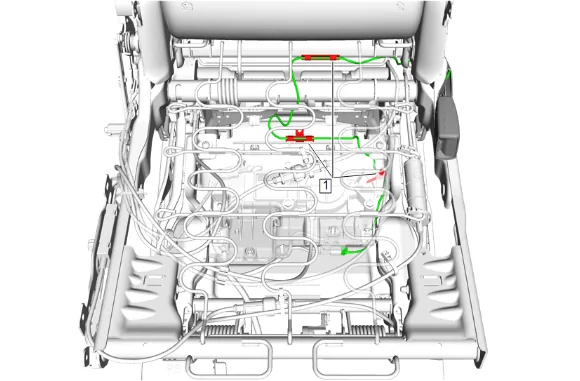

3. Disconnect the wiring harness retainers (1) and reposition the harness as necessary.

Rear Seat Belt Buckle Replacement (40 Percent, Bucket with UH5) — figure 3

4. Rear Seat Belt Buckle Bolt (1) » Remove

5. Rear Seat Belt Buckle (2) » Remove Installation Procedure

6. Rear Seat Belt Buckle (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Belt Buckle Bolt (1) » Install and tighten — Fastener Specifications

3. Position the wiring harness and connect the wiring harness retainers (1).

4. Connect the electrical connector.

5. Rear Seat Cushion Cover and Pad (1) Install — Rear Seat Cushion Cover and Pad Removal and Installation
