Tahoe / Yukon Service Manual

Front Bumper Fascia Lower Molding Replacement

Removal Procedure

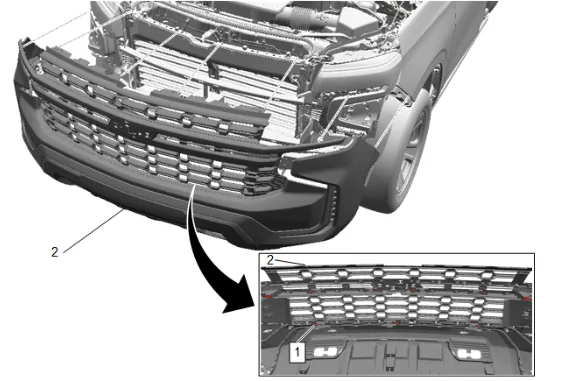

Front Bumper Fascia Lower Molding Replacement — figure 1
Front Bumper Fascia Lower Molding Replacement — figure 1
  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

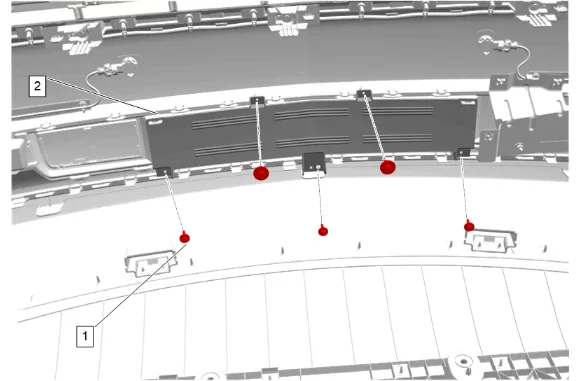

Front Bumper Fascia Lower Molding Replacement — figure 2
Front Bumper Fascia Lower Molding Replacement — figure 2
  1. { If equipped } Front Bumper Fascia Lower Bracket Bolt (1) » Remove [3x]
  2. { If equipped } Front Bumper Filler Retainer (2) Remove [2x]
  3. { If equipped } Front Grille Filler (3) » Remove

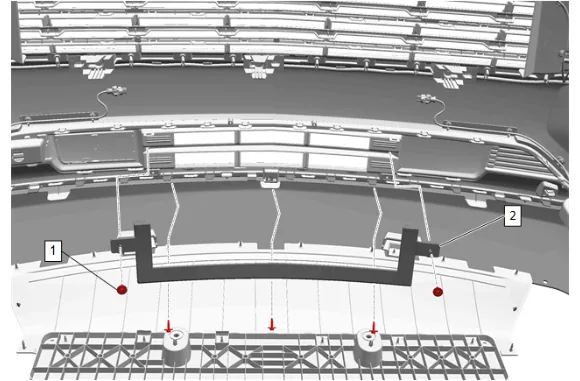

Front Bumper Fascia Lower Molding Replacement — figure 3
Front Bumper Fascia Lower Molding Replacement — figure 3
  1. { If equipped } Front Bumper Fascia Bolt (1) » Remove [5x]
  2. { If equipped } Front Bumper Fascia Seal (2) » Remove

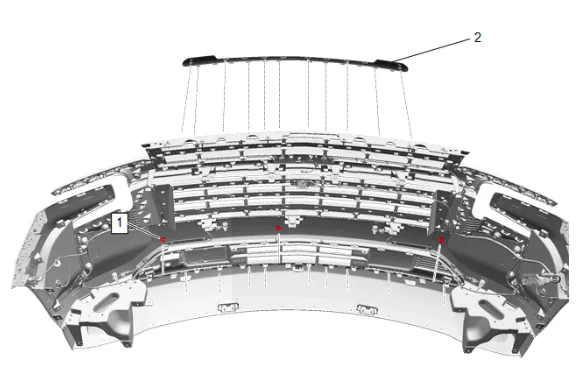

Front Bumper Fascia Lower Molding Replacement — figure 4
Front Bumper Fascia Lower Molding Replacement — figure 4

  1. Front Bumper Fascia Molding Retainer (1) » Remove [3x]

  2. Using the appropriate tool, release the front bumper fascia lower molding (2). Installation Procedure

  3. Front Bumper Fascia Lower Molding (2) » Install

  4. Front Bumper Fascia Molding Retainer (1) » Install [3x]

  5. { If equipped } Front Grille Filler (3) » Install { If equipped }

  6. { If equipped } Front Bumper Filler Retainer (2) Install [2x]

  1. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. { If equipped } Front Bumper Fascia Seal (2) » Install

  3. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten [5x] — Fastener Specifications

  4. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
