1-2-3-4-6-7-8-10 Reverse Clutch Assembly (1)

1-2-3-4-6-7-8-10 Reverse Clutch Assembly

1-2-3-4-6-7-8-10 Reverse Clutch Assembly (1) — figure 1
1-2-3-4-6-7-8-10 Reverse Clutch Assembly (1) — figure 1

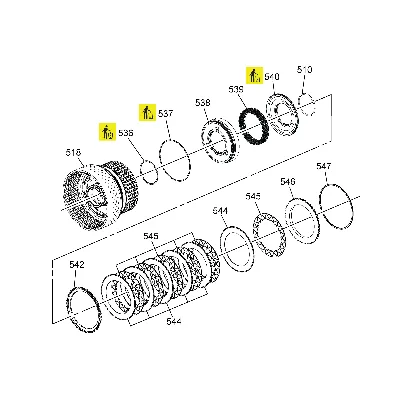

(510) 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring (518) Triple Clutch Housing (536) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Inner (537) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Outer (538) 1-2-3-4-6-7-8-10-Reverse Clutch Piston (539) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Return Spring (540) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Dam (542) 1-2-3-4-6-7-8-10-Reverse Clutch Apply Ring (544) 1-2-3-4-6-7-8-10-Reverse Steel Clutch Plate (545) 1-2-3-4-6-7-8-10-Reverse Fiber Clutch Plate (546) 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate (547) 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring — Selective
