Rear Axle Lubricant Level Inspection (G96)

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

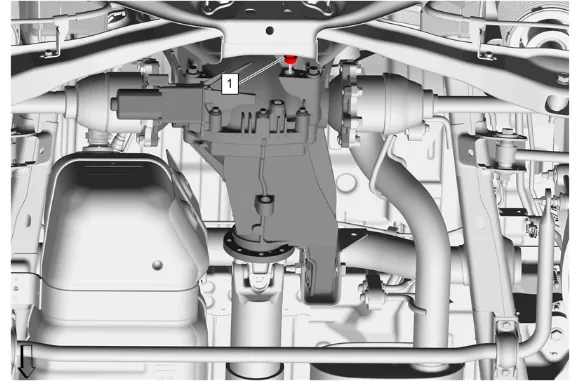

Rear Axle Lubricant Level Inspection (G96) — figure 1

2. Rear Axle Housing Fill Plug (1) » Remove
3. Inspect the gear lubricant level, it should be 1-2 mm (0.039-0.079 in) below the bottom of the fill plug opening.
4. If the level is low, add gear lubricant until the level is 1-2 mm (0.039-0.079 in) below the bottom of the fill plug opening. Use the appropriate axle lubricant: Adhesives, Fluids, Lubricants, and Sealers

Caution

Refer to Component Fastener Tightening Caution.

5. Rear Axle Housing Fill Plug (1) » Install and tighten — Fastener Specifications
6. Lower the vehicle.
