Exhaust Manifold, Turbocharger, and Components

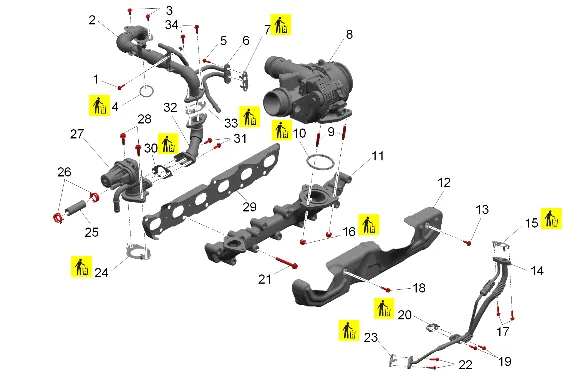

Exhaust Manifold, Turbocharger, and Components — figure 1

(1) Exhaust Gas Recirculation Cooler Bolt (2) Exhaust Gas Recirculation Cooler Outlet Pipe (3) Exhaust Gas Recirculation Cooler Outlet Pipe Bolt [2x] (4) Exhaust Gas Recirculation Pipe Seal (5) Turbocharger Oil Return Pipe Bolt [2x] (6) Turbocharger Coolant Feed Pipe (7) Turbocharger Coolant Feed and Return Pipe Gasket (8) Compressor Air Intake Turbocharger (9) Turbocharger Stud [2x] (10) Turbocharger Gasket (11) Exhaust Manifold (12) Exhaust Manifold Heat Shield (13) Exhaust Manifold Heat Shield Bolt (14) Turbocharger Oil Feed Pipe (15) Turbocharger Oil Return Pipe Gasket (16) Turbocharger Nut [3x] (17) Turbocharger Oil Return Pipe Bolt [2x] (18) Turbocharger Oil Feed Pipe Bracket Bolt (19) Turbocharger Oil Return Pipe Bolt [2x] (20) Turbocharger Oil Return Pipe Gasket (21) Exhaust Manifold Flange Bolt [12x] (22) Turbocharger Oil Feed Pipe Bolt [2x] (23) Turbocharger Oil Feed Pipe Gasket (24) Exhaust Gas Recirculation Valve Inlet Gasket (25) Exhaust Gas Recirculation Valve Cooling Feed Hose (26) Exhaust Gas Recirculation Valve Cooling Feed Hose Clamp [2x] (27) Exhaust Gas Recirculation Valve (28) Exhaust Gas Recirculation Valve Bolt [2x] (29) Exhaust Manifold Gasket (30) Exhaust Gas Recirculation Cooler Inlet Pipe Gasket (31) Exhaust Gas Recirculation Cooler Bolt [2x] (32) Exhaust Gas Recirculation Cooler Inlet Pipe (33) Exhaust Gas Recirculation Cooler Inlet Pipe Gasket (34) Exhaust Gas Recirculation Cooler Bolt [2x]
