Steering Wheel Horn Switch Wiring Harness Replacement

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning. Removal Procedure

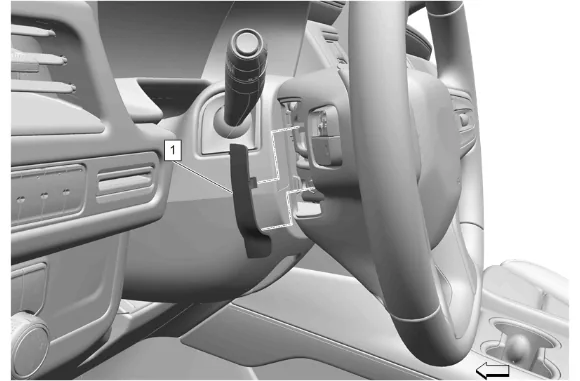

1. Disable the SIR system. SIR Disabling and Enabling

Steering Wheel Horn Switch Wiring Harness Replacement — figure 1

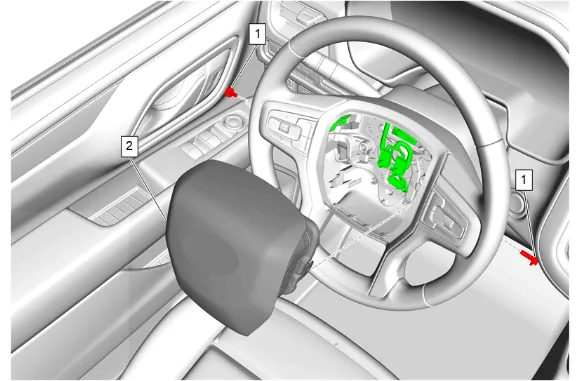

2. Use a flat bladed trim tool to depress the steering wheel airbag access hole cover detents to remove the 2 steering wheel airbag access hole covers (1).

Steering Wheel Horn Switch Wiring Harness Replacement — figure 2

3. Steering Wheel Airbag Bolt (1) » Remove [2x]
4. Release the connector position assurance (CPA) retainer.
5. Disconnect the electrical connectors.
6. Steering Wheel Airbag (2) » Remove

Steering Wheel Horn Switch Wiring Harness Replacement — figure 3

Caution

During steering wheel bolt removal, observe the following precautions: Do NOT use heat on the steering wheel bolt, steering wheel, or steering column. Using heat could cause damage to the steering related components. Do NOT hammer or apply excessive downward force on the steering wheel bolt, steering wheel, or steering column. Hammering or applying excessive downward force could cause damage to the steering related components.

Note

Steering wheel bolts installed during manufacturing require high torque efforts to remove. The ONLY acceptable bit for removing and installing the steering wheel bolt is a T50 Torx bit. Do NOT use any other size bit or a worn bit. If a power tool is used to remove the steering wheel bolt, the tool must have a minimum torque rating greater than 75 Nm (55 lb ft) and both the power tool and the T50 Torx bit MUST be positioned perpendicular to the bolt recess. Apply appropriate downward force to maintain engagement of bit to bolt recess during bolt removal.

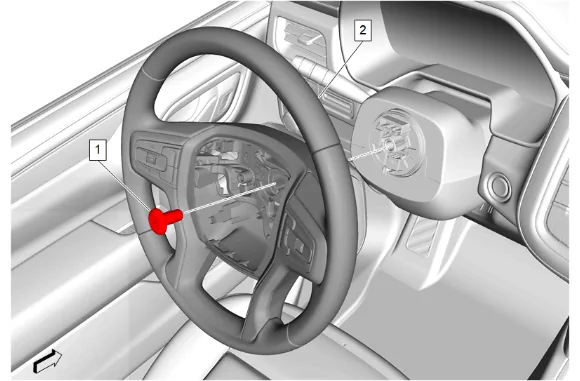

7. Loosen the steering wheel bolt (1) so that 2 - 3 threads are engaged.
8. Wiggle the steering wheel until the wheel disengages completely.
9. Steering Wheel Bolt (1) » Remove
10. Steering Wheel (2) » Remove

Steering Wheel Horn Switch Wiring Harness Replacement — figure 4

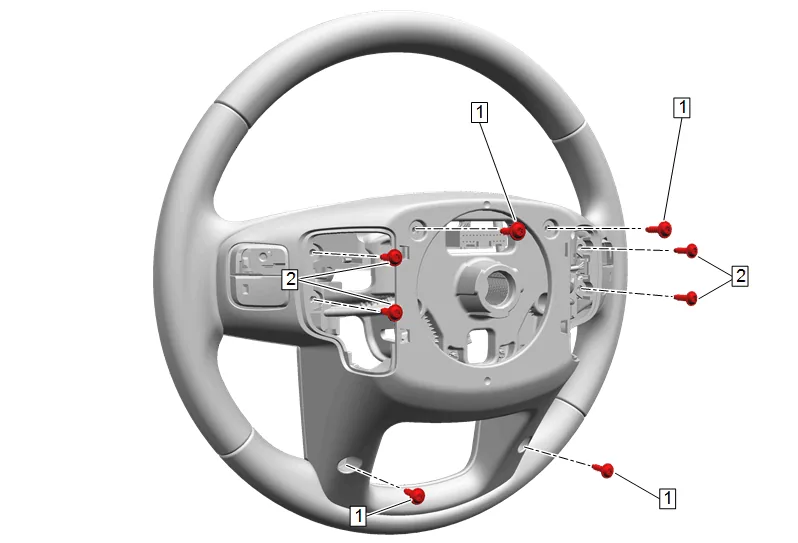

11. Steering Wheel Spoke Cover Bolt (1) » Remove [4x]
12. Steering Wheel Bolt (2) » Remove [4x]

Steering Wheel Horn Switch Wiring Harness Replacement — figure 5

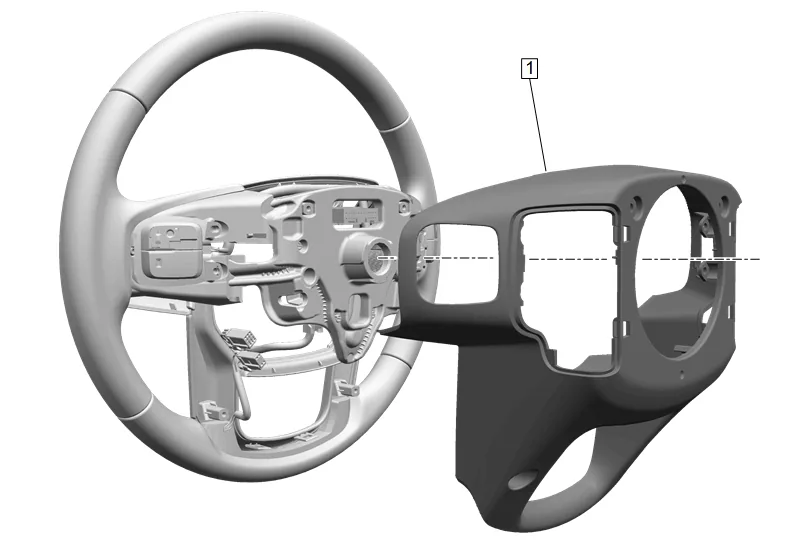

13. Steering Wheel Shroud (1) » Remove
14. Disconnect the heated steering wheel module electrical connectors, if equipped.

Steering Wheel Horn Switch Wiring Harness Replacement — figure 6

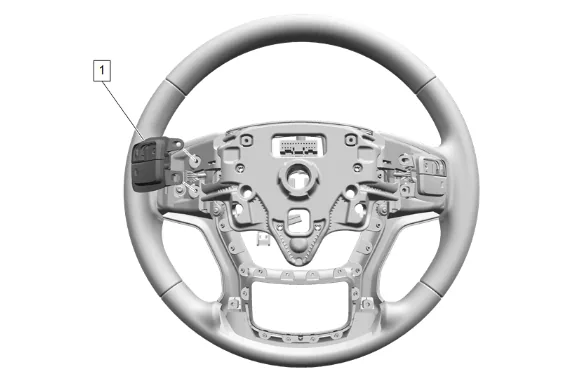

15. Disconnect the electrical connector.
16. Radio Volume Switch (1) » Remove

Steering Wheel Horn Switch Wiring Harness Replacement — figure 7

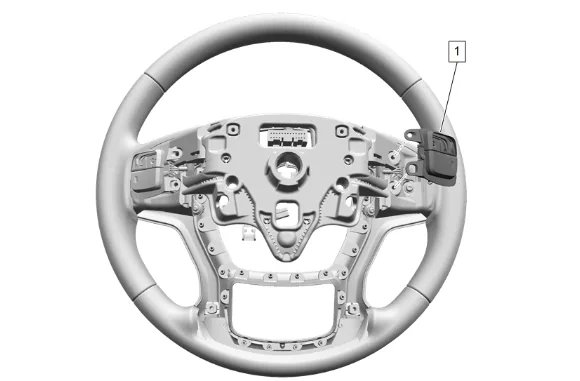

17. Disconnect the electrical connector.
18. Radio Favorites Switch (1) » Remove

Steering Wheel Horn Switch Wiring Harness Replacement — figure 8

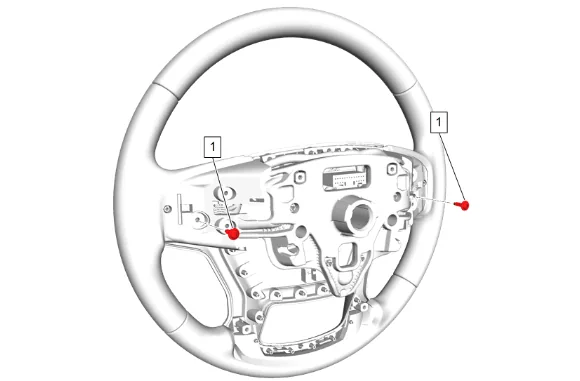

19. Steering Wheel Spoke Cover Bolt (1) » Remove [2x]

Steering Wheel Horn Switch Wiring Harness Replacement — figure 9

20. Steering Wheel Spoke Cover (1) » Remove
21. Disconnect the electrical connectors.

Steering Wheel Horn Switch Wiring Harness Replacement — figure 10

22. Remove the steering wheel horn switch wiring harness retainers from the steering wheel.

23. Steering Wheel Horn Switch Wiring Harness (1) » Remove Installation Procedure

24. Steering Wheel Horn Switch Wiring Harness (1) » Install

25. Install the steering wheel horn switch wiring harness retainers to the steering wheel.

26. Steering Wheel Spoke Cover (1) » Install

27. Connect the electrical connectors.

Caution

Refer to Fastener Caution.

5. Steering Wheel Spoke Cover Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Radio Favorites Switch (1) » Install

7. Connect the electrical connector.

8. Radio Volume Switch (1) » Install

9. Connect the electrical connector.

10. Steering Wheel Shroud (1) » Install

11. Connect the heated steering wheel module electrical connectors, if equipped.

12. Steering Wheel Spoke Cover Bolt (1) » Install and tighten [4x] — Fastener Specifications

13. Steering Wheel Bolt (2) » Install and tighten [4x] — Fastener Specifications

14. Steering Wheel (2) » Install

15. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 15.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 15.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 15.3. Remove loose debris from internal and external threads using compressed air. 15.4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers

16. Steering Wheel Bolt (1) » Install and tighten — Fastener Specifications

17. Connect the electrical connectors.

18. Install any connector position assurance (CPA) devices or secondary locks.

19. Steering Wheel Airbag (2) » Install

20. Steering Wheel Airbag Bolt (1) » Install and tighten [2x] — Fastener Specifications

21. Install the 2 steering wheel airbag access hole covers (1).

22. Enable the SIR System. SIR Disabling and Enabling
