Fastener Specifications (2)
Fastener Specifications Table 1: Low Frequency Console Antenna & Garage Door Opener Transmitter Table 2: Low Frequency Instrument Panel Antenna Fastener Specifications

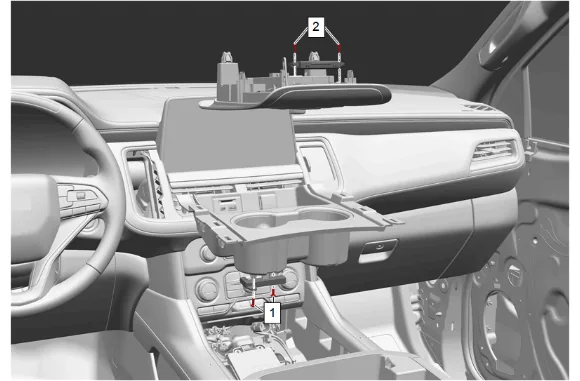

Low Frequency Console Antenna & Garage Door Opener Transmitter
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Theft Deterrent Module Bolt [2x] | — | — | 1.5 Y (13 lb in) | Low Frequency Console Antenna Replacement |
| 2 | Garage Door Opener Transmitter Bolt [2x] | — | — | 1.5 Y (13 lb in) | Garage Door Opener Transmitter Replacement |

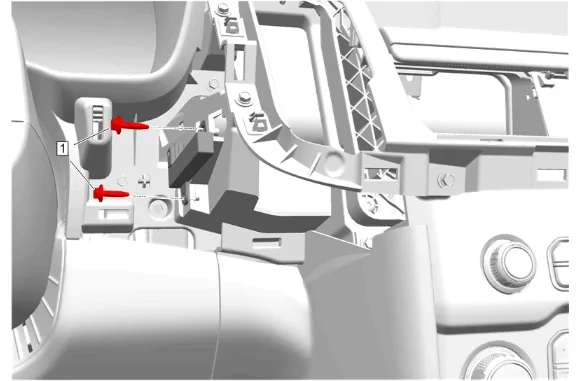

Low Frequency Instrument Panel Antenna
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Low Frequency Instrument Panel Antenna [2x] | — | — | 2.5 Y (22 lb in) | Low Frequency Instrument Panel Antenna Replacement |
