Fastener Specifications (3)
Fastener Specifications Table 1: Spare Wheel Hoist Replacement Table 2: Tire and Wheel Removal and Installation (Aluminum Wheel) Table 3: Tire and Wheel Removal and Installation (Steel Wheel) Table 4: Tire and Wheel Removal and Installation (Steel Wheel)

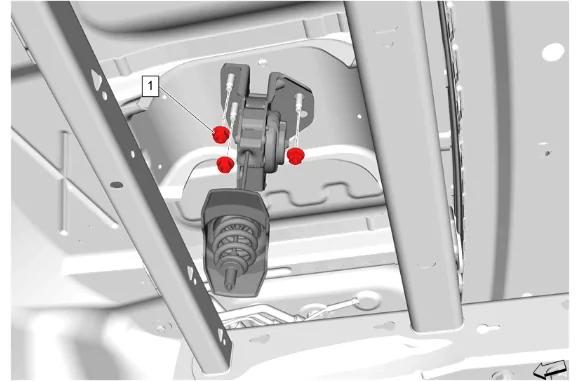

Spare Wheel Hoist Replacement
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Spare Wheel Hoist Nut [3x] | — | — | 32 Y (24 lb ft) | Spare Wheel Hoist Replacement |

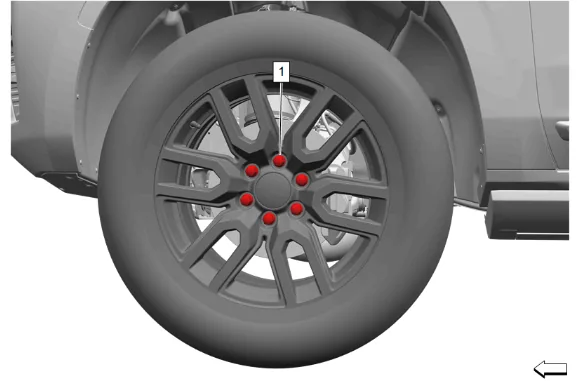

Tire and Wheel Removal and Installation (Aluminum Wheel)
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Wheel Nut [6x] | — | — | 190 Y (140 lb ft) | Tire and Wheel Removal and Installation |

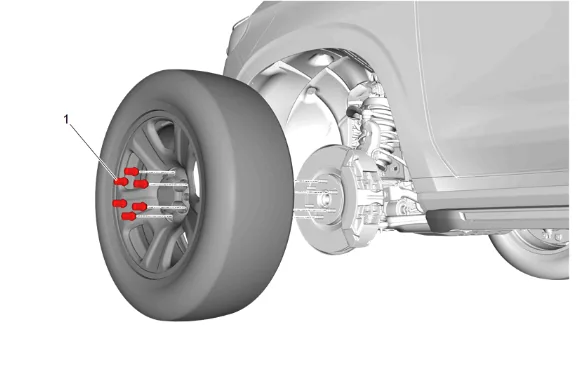

Tire and Wheel Removal and Installation (Steel Wheel)
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Wheel Nut [6x] | — | — | 190 Y (140 lb ft) | Tire and Wheel Removal and Installation |
Tire and Wheel Removal and Installation (Steel Wheel)
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Wheel Trim Cap Bolt [3x] | — | Yes | 30 Y (22 lb ft) | Tire and Wheel Removal and Installation |
