Rear Wheel Speed Sensor Replacement - Left Side

Warning

Brake Dust Warning Removal Procedure

1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

Rear Wheel Speed Sensor Replacement - Left Side — figure 1

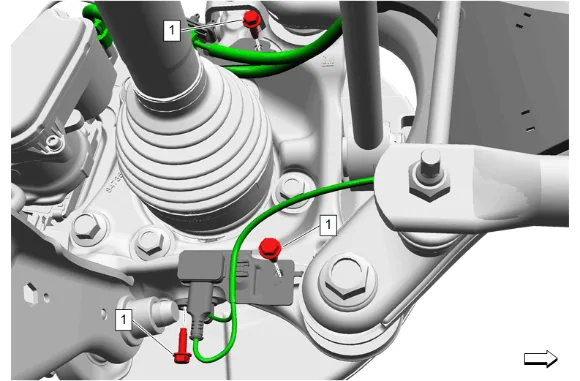

2. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove [3x]

Rear Wheel Speed Sensor Replacement - Left Side — figure 2

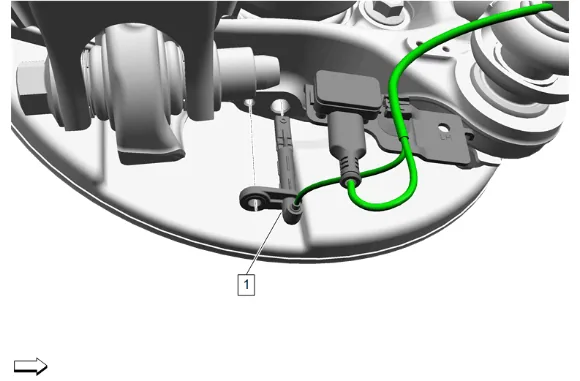

3. Rear Wheel Speed Sensor (1) » Remove

Rear Wheel Speed Sensor Replacement - Left Side — figure 3

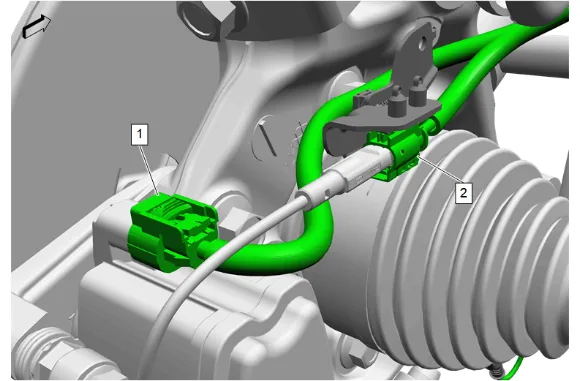

4. Electrical Connector (1) @ Rear Parking Brake Actuator » Disconnect
5. { If equipped } Electrical Connector (2) @ Rear Disc Brake Pad Wear Sensor » Disconnect

Rear Wheel Speed Sensor Replacement - Left Side — figure 4

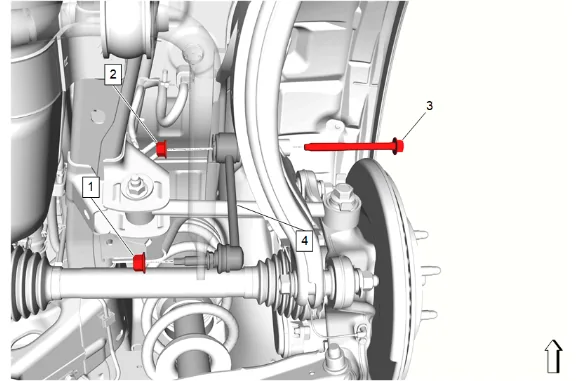

6. Rear Stabilizer Shaft Link Nut - Upper (2) » Remove
7. Rear Stabilizer Shaft Link Bolt (3) » Remove
8. Rear Stabilizer Shaft Link (4) @ Rear Suspension Trailing Arm » Reposition

Rear Wheel Speed Sensor Replacement - Left Side — figure 5

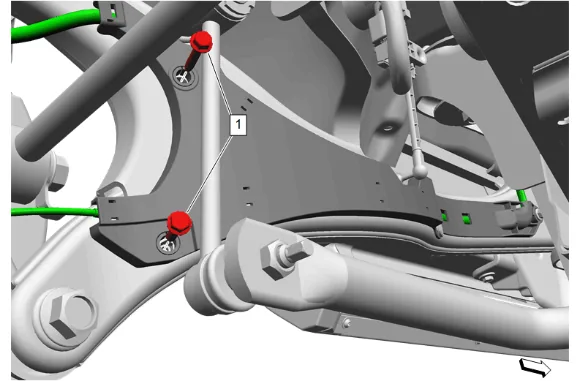

9. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove [2x]

Rear Wheel Speed Sensor Replacement - Left Side — figure 6

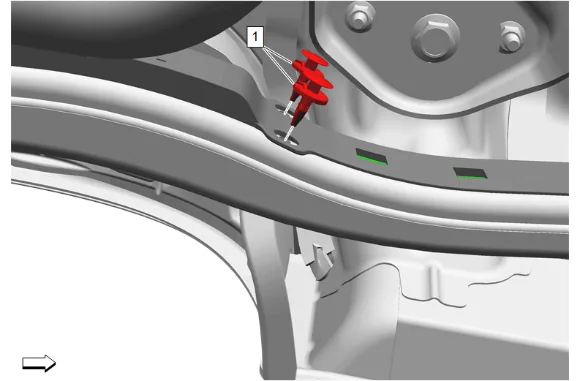

10. Chassis Rear Wiring Harness Clip (1) » Remove [2x]

Rear Wheel Speed Sensor Replacement - Left Side — figure 7

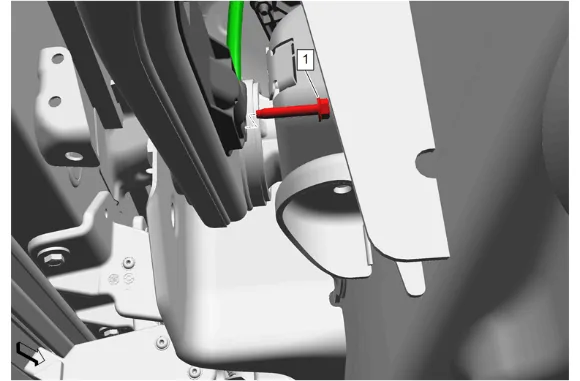

11. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove

Rear Wheel Speed Sensor Replacement - Left Side — figure 8

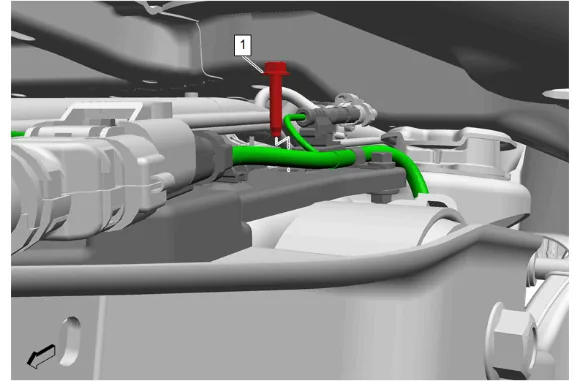

12. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove

Rear Wheel Speed Sensor Replacement - Left Side — figure 9

13. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove

Rear Wheel Speed Sensor Replacement - Left Side — figure 10

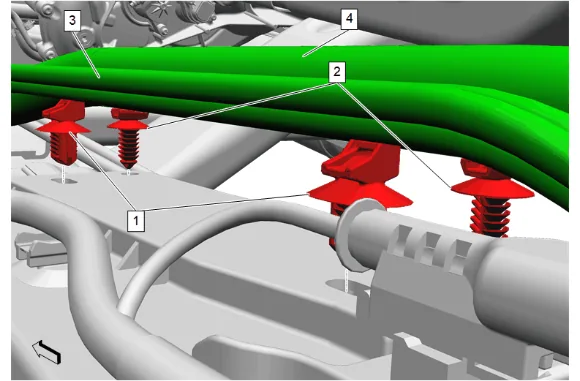

14. { If equipped } Retainer (1) » Remove [2x]
15. Wiring Harness Retainer (2) » Remove [2x]
16. { If equipped } Position the air suspension air line (3) out of the way.
17. Position the master chassis harness (4) out of the way.

Rear Wheel Speed Sensor Replacement - Left Side — figure 11

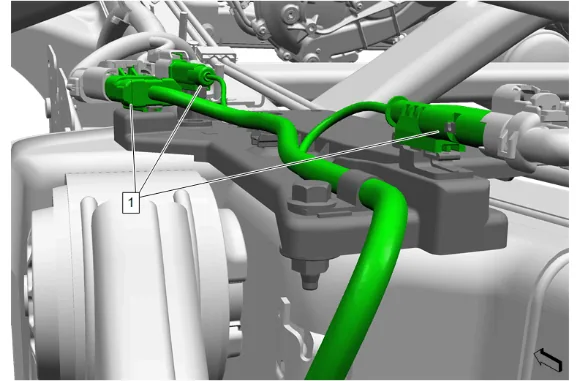

18. Disconnect the 3 chassis rear wiring harness extension harness connectors (1).

Rear Wheel Speed Sensor Replacement - Left Side — figure 12

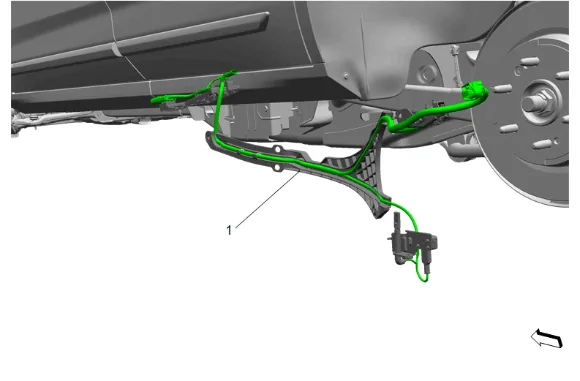

19. Remove the chassis rear wiring harness extension harness (1) from the vehicle. Installation Procedure

20. Install the chassis rear wiring harness extension harness (1).

21. Connect the 3 chassis rear wiring harness extension harness connectors (1).

22. Position the master chassis harness (4) into place.

23. { If equipped } Position the air suspension air line (3) into place.

24. Wiring Harness Retainer (2) » Install [2x]

25. { If equipped } Retainer (1) » Install [2x]

Caution

Fastener Caution

7. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten — Fastener Specifications

8. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten — Fastener Specifications

9. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten — Fastener Specifications

10. Chassis Rear Wiring Harness Clip (1) » Install [2x]

11. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

12. Rear Stabilizer Shaft Link (4) » Install

13. Rear Stabilizer Shaft Link Bolt (3) » Install

14. Rear Stabilizer Shaft Link Nut - Upper (2) » Install

15. Rear Stabilizer Shaft Link Bolt (3) » Tighten — Fastener Specifications

16. Electrical Connector (1) @ Rear Parking Brake Actuator » Connect

17. { If equipped } Electrical Connector (2) @ Rear Disc Brake Pad Wear Sensor » Connect

18. Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (1) and mounting pad on the rear steering knuckle.  Adhesives, Fluids, Lubricants, and Sealers

19. Rear Wheel Speed Sensor (1) » Install

20. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

21. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation

22. Remove the support and lower the vehicle.

23. Verify the repair is complete. Diagnostic Repair Verification
