Front Bumper Shutter Replacement

Removal Procedure

Front Bumper Shutter Replacement — figure 1
Front Bumper Shutter Replacement — figure 1

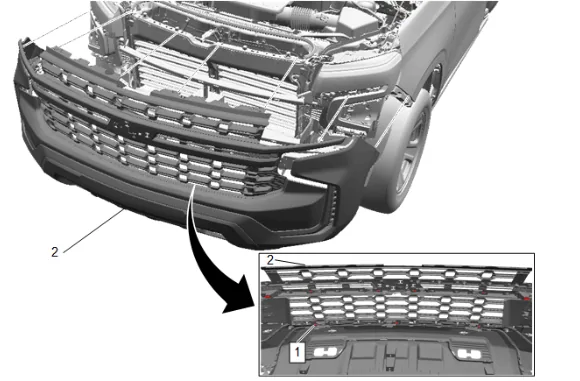

  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation
Front Bumper Shutter Replacement — figure 2
Front Bumper Shutter Replacement — figure 2

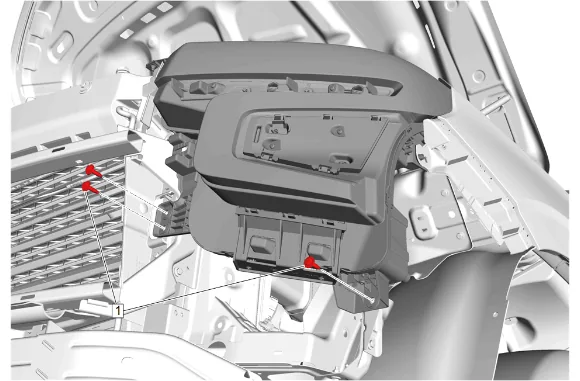

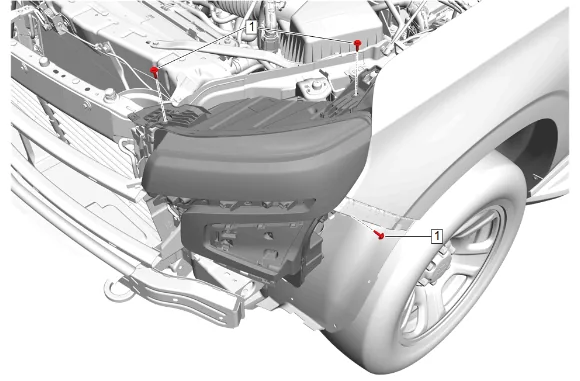

  1. Remove the 6 right and left side headlamp bolts (1).
Front Bumper Shutter Replacement — figure 3
Front Bumper Shutter Replacement — figure 3
  1. Remove the 6 right and left side headlamp bolts (1).
Front Bumper Shutter Replacement — figure 4
Front Bumper Shutter Replacement — figure 4

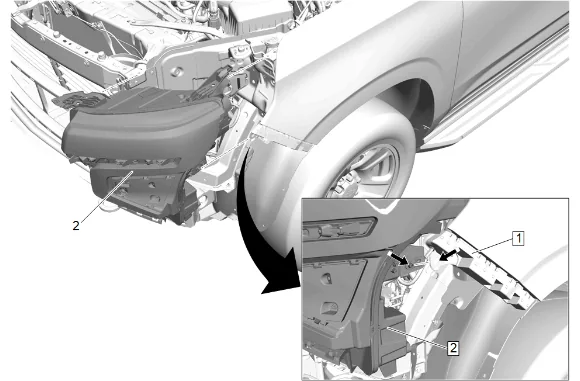

  1. Release the front headlamp guide pin from the front bumper fascia guide (1).
  2. Remove the right and left side headlamps (2).
  3. Release the wiring harness retaining tabs.
  4. Disconnect all electrical connectors.
Front Bumper Shutter Replacement — figure 5
Front Bumper Shutter Replacement — figure 5

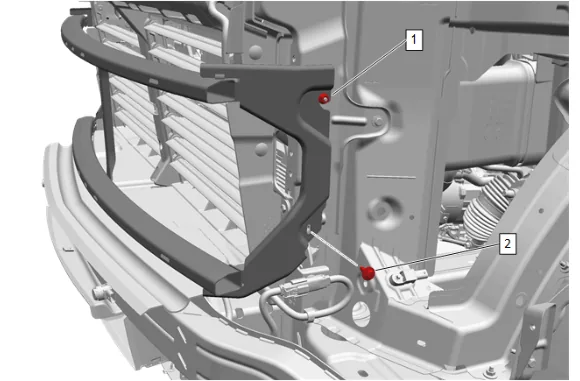

  1. Loosen the left and right side front bumper fascia upper stiffener nut (1).
  2. Remove the left and right side front bumper fascia upper stiffener bolt (2).
Front Bumper Shutter Replacement — figure 6
Front Bumper Shutter Replacement — figure 6

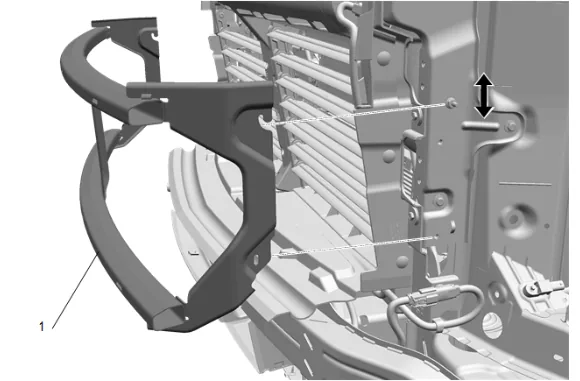

  1. Pull the front bumper fascia upper stiffener (1) up and out over the stud.
Front Bumper Shutter Replacement — figure 7
Front Bumper Shutter Replacement — figure 7

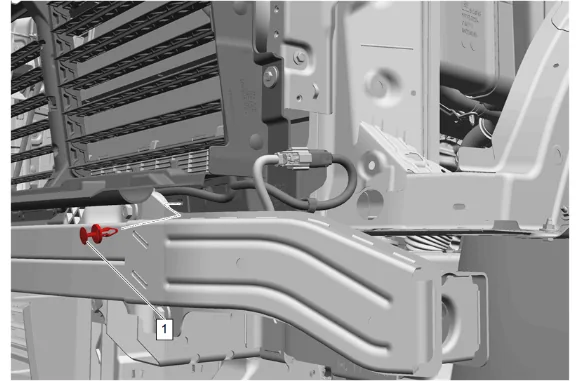

  1. Remove the left and right side outer front bumper shutter retainer (1).
  2. Disconnect the electrical connector and reposition wiring harness.
Front Bumper Shutter Replacement — figure 8
Front Bumper Shutter Replacement — figure 8

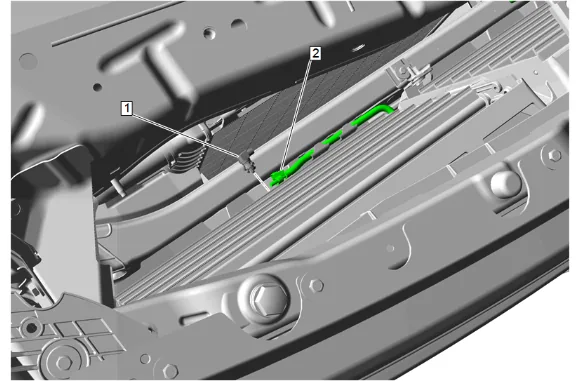

  1. Ambient Air Temperature Sensor (1) » Remove
  2. Disconnect the electrical connector. (2)
Front Bumper Shutter Replacement — figure 9
Front Bumper Shutter Replacement — figure 9

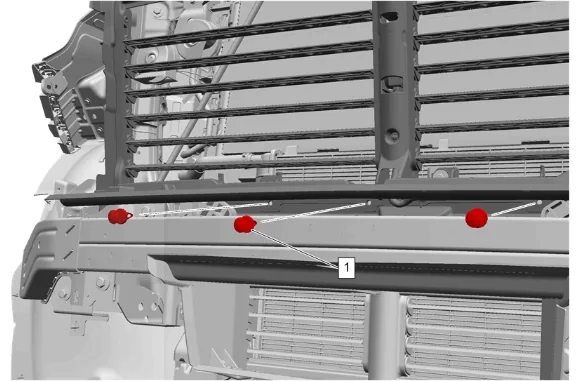

  1. Front Bumper Shutter Retainer (1) » Remove [3x]
Front Bumper Shutter Replacement — figure 10
Front Bumper Shutter Replacement — figure 10

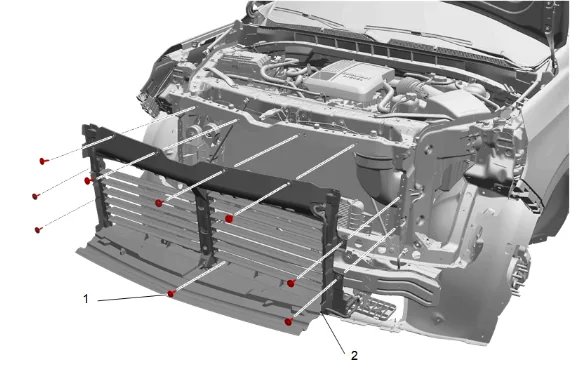

  1. Front Bumper Shutter Bolt (1) » Remove [9x]

  2. Front Bumper Shutter (2) » Remove Installation Procedure

  3. Front Bumper Shutter (2) » Install

  1. Front Bumper Shutter Bolt (1) » Install and tighten [9x] — Fastener Specifications

  2. Front Bumper Shutter Retainer (1) » Install [3x]

  3. Connect the electrical connectors and install wiring harness.

  4. Install the left and right side outer front bumper shutter retainer (1).

  5. Connect the electrical connector. (2)

  6. Ambient Air Temperature Sensor (1) » Install

  7. Front Bumper Fascia Upper Stiffener (1) » Install

  8. Install and tighten the left and right side front bumper fascia upper stiffener bolt (2). Fastener Specifications

  9. Tighten the left and right side front bumper fascia upper stiffener nut (1). Fastener Specifications

  1. Connect all electrical connectors.
  2. Secure the wiring harness retaining tab.
  3. Install the right and left side headlamps (2).
  4. Secure the front headlamp guide pin to the front bumper fascia guide (1).
  1. Install the 6 right and left side headlamp bolts (1). Fastener Specifications

  1. Install the 6 right and left side headlamp bolts (1). Fastener Specifications

  2. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
