Front Seat Stowage Compartment Replacement (Armrest Compartment)

Front Seat Stowage Compartment Replacement (Armrest Compartment) Removal Procedure

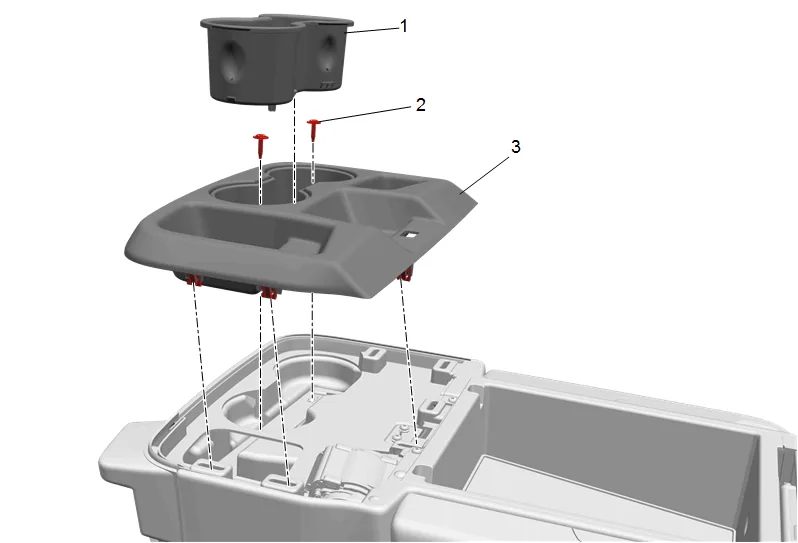

Front Seat Stowage Compartment Replacement (Armrest Compartment) — figure 1

1. Front Center Seat Cup Holder (1) » Remove
2. Front Seat Armrest Cup Holder Bolt (2) » Remove [2x]
3. Using a suitable trim tool, release the front seat armrest cup holder retainers.
4. Front Seat Armrest Cup Holder (3) » Remove

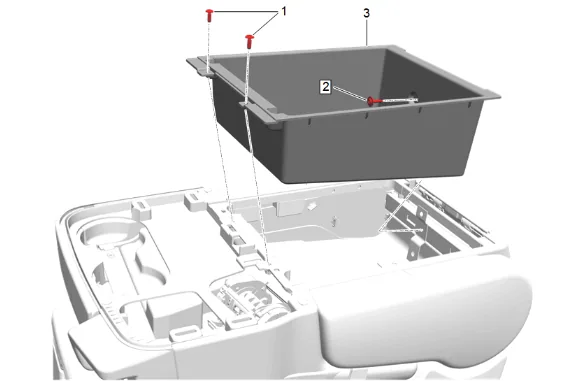

Front Seat Stowage Compartment Replacement (Armrest Compartment) — figure 2

5. Front Seat Stowage Compartment Bolt - Front (1) » Remove [2x]

6. Front Seat Stowage Compartment Bolt - Rear (2) » Remove

7. Front Seat Stowage Compartment (3) » Remove Installation Procedure

8. Front Seat Stowage Compartment (3) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Stowage Compartment Bolt - Rear (2) » Install and tighten — Fastener Specifications

3. Front Seat Stowage Compartment Bolt - Front (1) » Install and tighten [2x] — Fastener Specifications

4. Front Seat Armrest Cup Holder (3) » Install

5. Front Seat Armrest Cup Holder Bolt (2) » Install and tighten [2x] — Fastener Specifications

6. Front Center Seat Cup Holder (1) » Install
