Instrument Panel Lower Center Trim Panel Replacement

Removal Procedure

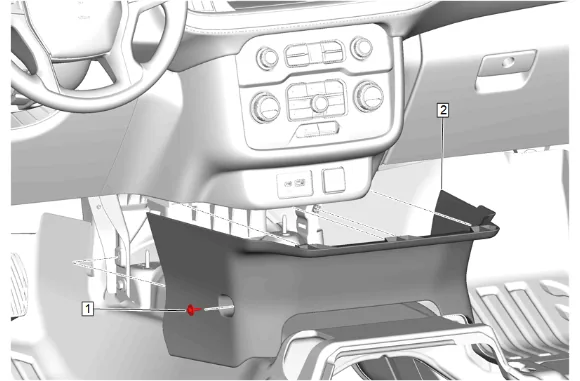

Instrument Panel Lower Center Trim Panel Replacement — figure 1

1. Instrument Panel Lower Trim Panel Bolt (1) » Remove

2. Using a flat-bladed plastic trim tool, release the retaining clips.

3. Instrument Panel Lower Center Trim Panel (2) » Remove Installation Procedure

4. Instrument Panel Lower Center Trim Panel (2) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications
