Tahoe / Yukon Service Manual

Rear Stabilizer Shaft Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
Rear Stabilizer Shaft Replacement — figure 1
Rear Stabilizer Shaft Replacement — figure 1

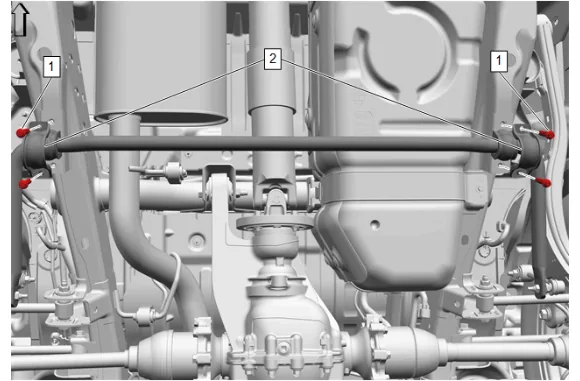

  1. Rear Stabilizer Shaft Insulator Clamp Bolt (1) » Remove [4x]
  2. Rear Stabilizer Shaft Clamp (2) » Remove [2x]
Rear Stabilizer Shaft Replacement — figure 2
Rear Stabilizer Shaft Replacement — figure 2

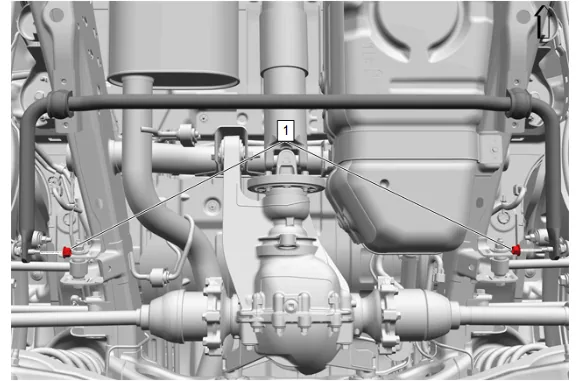

  1. Rear Stabilizer Shaft Link Nut - Lower (1) » Remove [2x]
Rear Stabilizer Shaft Replacement — figure 3
Rear Stabilizer Shaft Replacement — figure 3

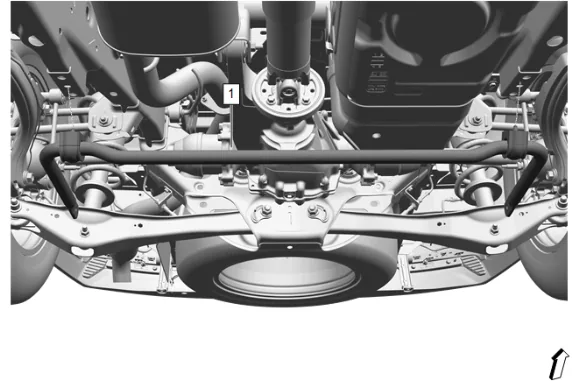

  1. Rear Stabilizer Shaft (1) » Remove
Rear Stabilizer Shaft Replacement — figure 4
Rear Stabilizer Shaft Replacement — figure 4
  1. Rear Stabilizer Shaft Insulator (1) » Remove [2x] Installation Procedure

  1. Rear Stabilizer Shaft Insulator (1) » Install [2x]

  2. Rear Stabilizer Shaft (1) » Install

  1. Rear Stabilizer Shaft Link Nut - Lower (1) » Install and tighten [2x] — Fastener Specifications

  2. Rear Stabilizer Shaft Clamp (2) » Install [2x]

  3. Rear Stabilizer Shaft Insulator Clamp Bolt (1) » Install and tighten [4x] — Fastener Specifications

  4. Remove the support and lower the vehicle.
