Dash Panel Outer Insulator Replacement - Upper (with LM2)

Dash Panel Outer Insulator Replacement - Upper (with LM2) Removal Procedure

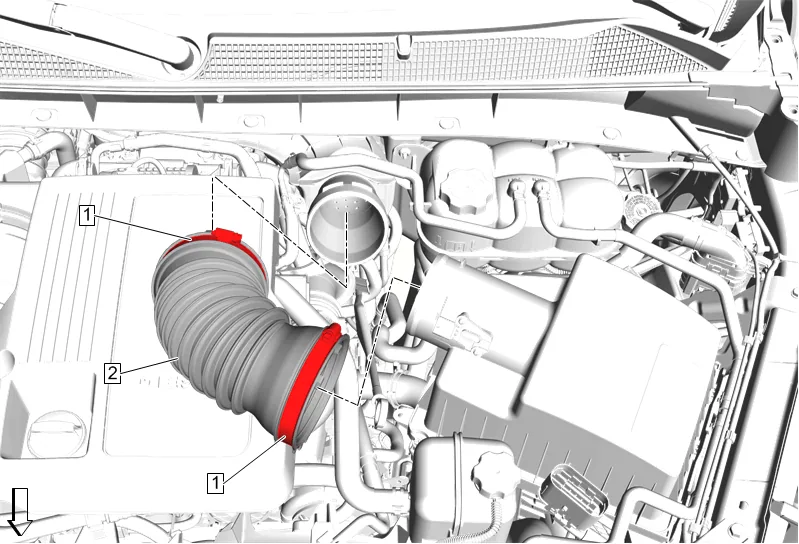

Dash Panel Outer Insulator Replacement - Upper (with LM2) — figure 1

1. Air Cleaner Outlet Duct Clamp (1) » Loosen [2x]
2. Air Cleaner Outlet Front Duct (2) » Remove

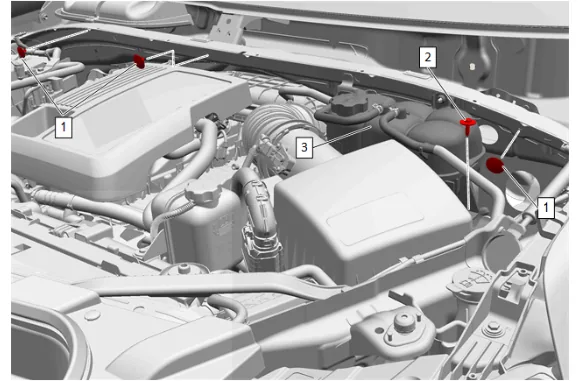

Dash Panel Outer Insulator Replacement - Upper (with LM2) — figure 2

3. Dash Panel Outer Insulator Retainer (1) » Remove [3x]
4. Radiator Surge Tank Bolt (2) » Remove
5. Radiator Surge Tank (3) » Reposition

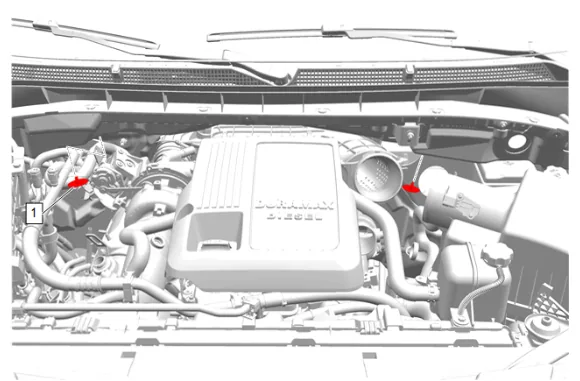

Dash Panel Outer Insulator Replacement - Upper (with LM2) — figure 3

6. Dash Panel Outer Insulator Retainer (1) » Remove [2x]

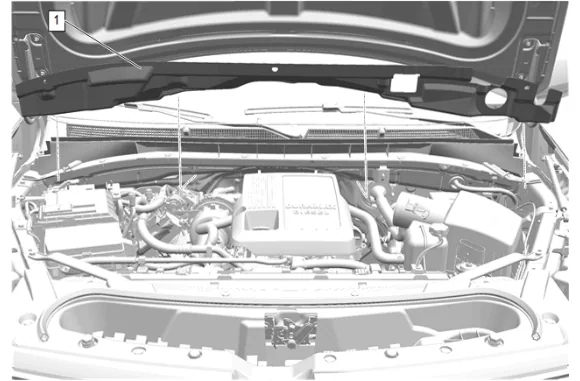

Dash Panel Outer Insulator Replacement - Upper (with LM2) — figure 4

7. Pull the dash panel outer insulator – upper (1) forward and upward to remove. Installation Procedure

8. Dash Panel Outer Insulator - Upper (1) » Install

9. Dash Panel Outer Insulator Retainer (1) » Install [2x]

10. Radiator Surge Tank (3) » Install

Caution

Refer to Fastener Caution.

4. Radiator Surge Tank Bolt (2) » Install and tighten — Fastener Specifications

5. Dash Panel Outer Insulator Retainer (1) » Install [3x]

6. Air Cleaner Outlet Front Duct (2) » Install

7. Air Cleaner Outlet Duct Clamp (1) » Tighten [2x] — Fastener Specifications
