Beverage Cooler Switch Replacement

Removal Procedure

Beverage Cooler Switch Replacement — figure 1

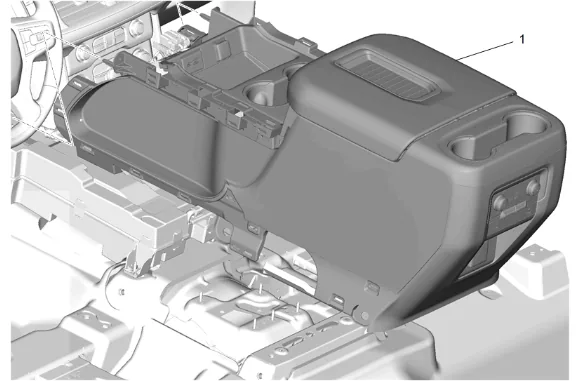

1. Front Floor Console » Remove — Front Floor Console Removal and Installation
2. Create a work area large enough to lay the front floor console out without damaging the panels.

Beverage Cooler Switch Replacement — figure 2

3. Front Floor Console Rear Cup Holder Liner (1) » Remove
4. Front Floor Console Cup Holder Bolt (2) » Remove
5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Front Floor Console Rear Cup Holder (3) » Remove

Beverage Cooler Switch Replacement — figure 3

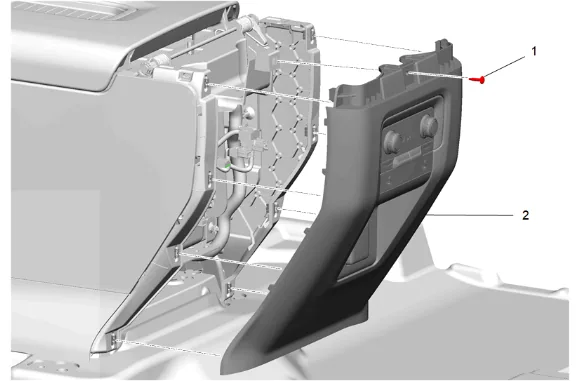

7. Front Floor Console Rear Cover Bolt (1) » Remove
8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Front Floor Console Rear Trim Panel (2) » Remove
10. Disconnect the electrical connectors.

Beverage Cooler Switch Replacement — figure 4

11. Using a suitable plastic trim tool, release the retaining tabs.
12. Front Floor Rear Console Side Trim Panel (1) » Remove
13. Front Floor Console Cup Holder Trim Plate (2) » Remove
14. Disconnect the electrical connectors.

Beverage Cooler Switch Replacement — figure 5

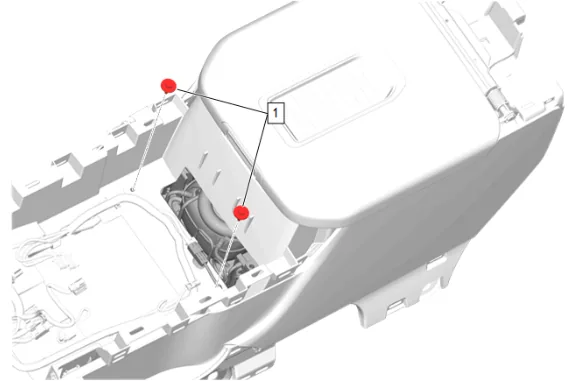

15. Front Floor Console Intermediate Bracket Bolt (1) » Remove [2x]

Beverage Cooler Switch Replacement — figure 6

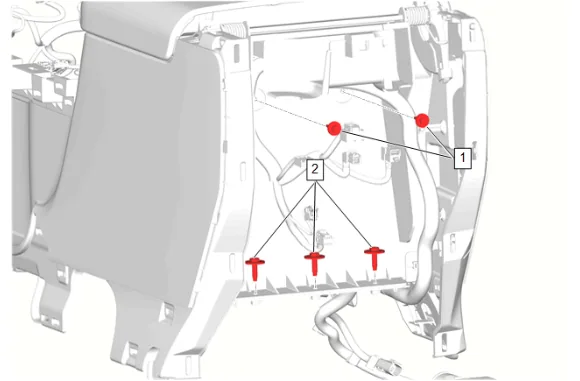

16. Front Floor Console Compartment Bolt (1) » Remove [2x]
17. Front Floor Console Rear Bracket Bolt (2) » Remove [3x]

Beverage Cooler Switch Replacement — figure 7

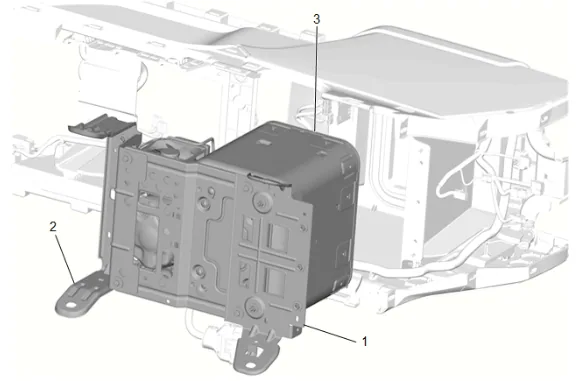

18. Disconnect the electrical connector and remove the front floor console bracket (1), front floor console intermediate bracket (2) and front floor console compartment cooler (3) as an assembly.

Beverage Cooler Switch Replacement — figure 8

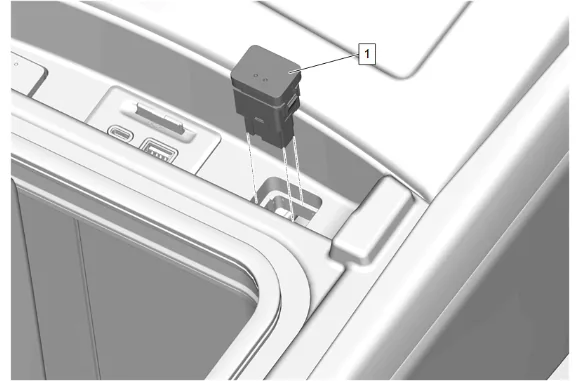

19. Open the front floor console armrest.

20. Disconnect the electrical connector.

21. Release the retaining tabs.

22. Beverage Cooler Switch (1) » Remove Installation Procedure

23. Beverage Cooler Switch (1) » Install

24. Secure the retaining tabs.

25. Connect the electrical connector.

26. Close the front floor console armrest.

27. Install front floor console bracket (1), front floor console intermediate bracket (2) and front floor console compartment cooler (3) as an assembly into the front floor console and connect the electrical connector.

Caution

Refer to Fastener Caution.

6. Front Floor Console Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

7. Front Floor Console Rear Bracket Bolt (2) » Install and tighten [3x] — Fastener Specifications

8. Front Floor Console Intermediate Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

9. Connect the electrical connectors.

10. Front Floor Console Cup Holder Trim Plate (2) » Install

11. Front Floor Rear Console Side Trim Panel (1) » Install

12. Connect the electrical connectors.

13. Front Floor Console Rear Trim Panel (2) » Install

14. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

15. Front Floor Console Rear Cup Holder (3) » Install

16. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

17. Front Floor Console Rear Cup Holder Liner (1) » Install

18. Front Floor Console » Install — Front Floor Console Removal and Installation
