Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9)

Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9)

  1. Disable the SIR system. SIR Disabling and Enabling
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 1
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 1
  1. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Remove
  2. Remove the driver seat. Front Seat Removal and Installation
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 2
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 2

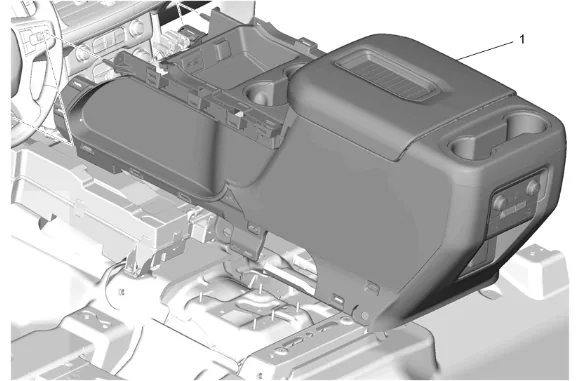

  1. Front Floor Console (1) » Remove — Front Floor Console Removal and Installation
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 3
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 3

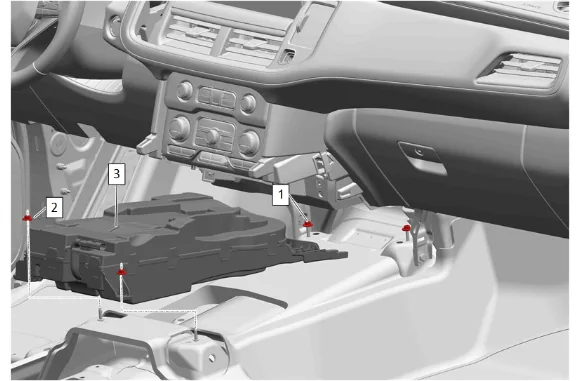

  1. Disconnect the electrical connector.
  2. Radio Front Floor Speaker Nut - Front (1) » Remove [2x]
  3. Radio Front Floor Speaker Nut - Rear (1) » Remove [2x]
  4. Front Floor Speaker (2) » Remove
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 4
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 4

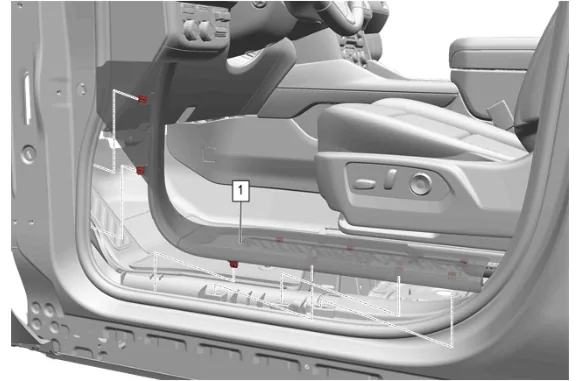

  1. Starting at the rear of the front side door sill garnish molding (1) pull upward at the B-pillar joint to disengage the garnish molding.
  2. Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.
  3. Front Side Door Sill Garnish Molding (1) » Remove [2x]
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 5
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 5

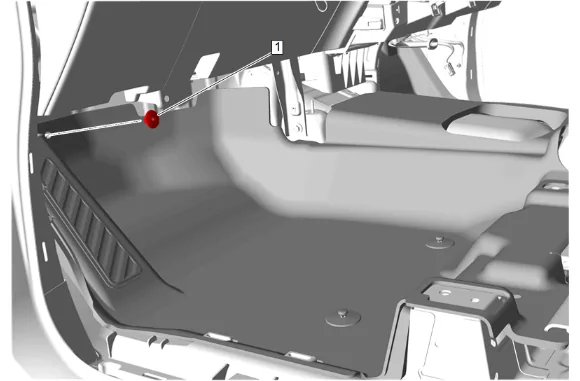

  1. Floor Carpet Retainer Button (1) » Remove
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 6
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 6

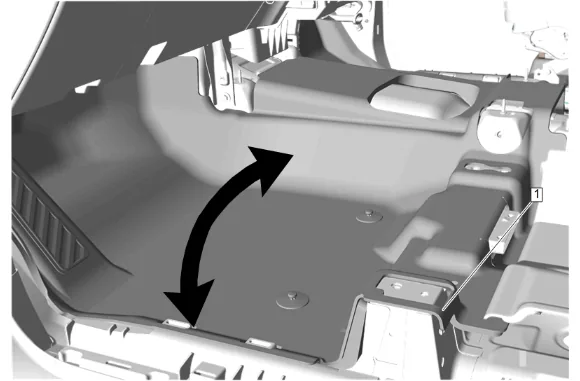

  1. Reposition the left side of the front floor panel carpet (1) towards the right side to access the floor rear air outlet duct.
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 7
Floor Rear Air Outlet Duct Replacement - Left Side (without 9C1, BG9) — figure 7

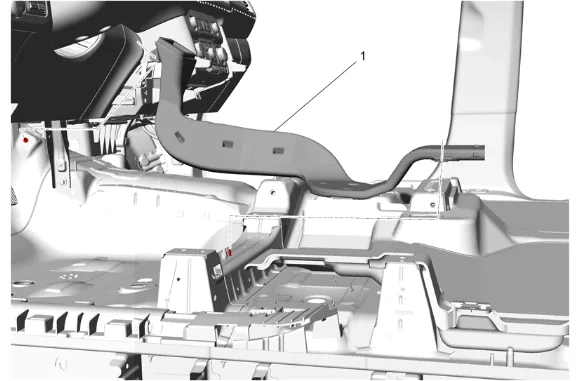

  1. Floor Rear Air Outlet Duct - Left Side (1) » Remove Installation Procedure

  2. Floor Rear Air Outlet Duct - Left Side (1) » Install

  3. Return the left side of the front floor panel carpet (1) back to the carpet original position.

  4. Floor Carpet Retainer Button (1) » Install

  5. Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.

  6. Work your way rearward engaging all the front side door sill garnish molding retaining clips.

  7. Front Side Door Sill Garnish Molding (1) » Install [2x]

  8. Front Floor Speaker (2) » Install

  1. Radio Front Floor Speaker Nut - Rear (1) » Install and tighten [2x] — Fastener Specifications

  2. Radio Front Floor Speaker Nut - Front (1) » Install and tighten [2x] — Fastener Specifications

  3. Connect the electrical connector.

  4. Front Floor Console (1) » Install — Front Floor Console Removal and Installation

  5. Install the driver seat. Front Seat Removal and Installation

  6. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Install

  7. Enable the SIR System. SIR Disabling and Enabling
