Tahoe / Yukon Service Manual

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket)

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) Single Use Fasteners and Components Tie Strap Removal Procedure

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) — figure 1
Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) — figure 1
  1. Rear Seat Cushion Cover and Pad (1) Remove — Rear Seat Cushion Cover and Pad Removal and Installation

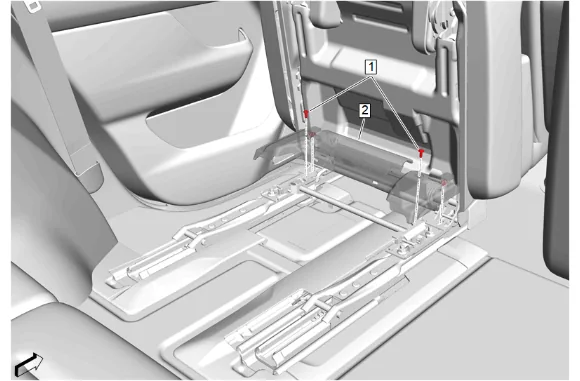

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) — figure 2
Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) — figure 2
  1. Place the rear seat in the fold and tumble position.
  2. Release the wiring harness retainers as necessary.
  3. Front Seat Bolt (1) » Remove [2x]
  4. Using a flat-bladed plastic trim tool, release the retaining clips.
  5. Rear Seat Track Finish Cover (2) » Remove

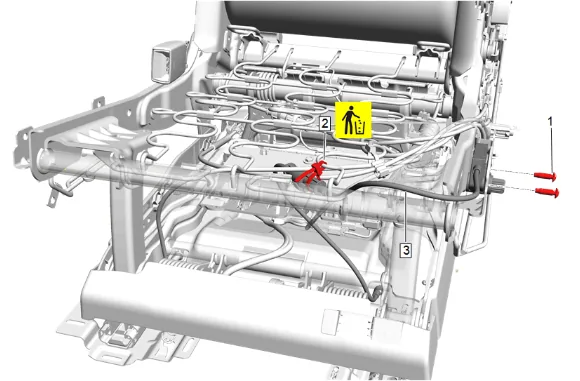

Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) — figure 3
Rear Seat Latch Cable Replacement - Track Release Comfort Adjustment (40 Percent, Bucket) — figure 3

  1. Using a suitable tool, release the seat cable retaining features.

  2. Release the cable end from the seat frame.

  3. Return the rear seat to the original position.

  4. Rear Seat Bolt (1) » Remove [2x]

  5. Tie Strap (2) » Remove and DISCARD

  6. Rear Seat Latch Cable - Track Release Comfort Adjustment (3) » Remove Installation Procedure

  7. Rear Seat Latch Cable - Track Release Comfort Adjustment (3) » Install

  8. Tie Strap (2) » Install NEW

  1. Rear Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Place the rear seat in the fold and tumble position.

  3. Install the cable end into the seat frame.

  4. Secure the seat cable retaining features.

  5. Following complete cable installation, push in the free length adjuster clip to set cable length.

  6. Rear Seat Track Finish Cover (2) » Install

  7. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications

  8. Connect the wiring harness retainers.

  9. Return the rear seat to the original position.

  10. Rear Seat Cushion Cover and Pad (1) Install — Rear Seat Cushion Cover and Pad Removal and Installation
