Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Automatic Transmission - 10L80 MHS MQC | Repair Instructions - On Vehicle | Document ID: 5579656 Automatic Transmission Fluid Pressure Test Hole Plug Replacement Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

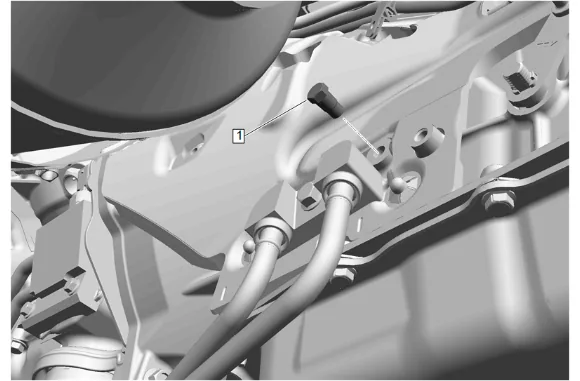

Automatic Transmission Fluid Pressure Test Hole Plug Replacement — figure 1

2. Clean the surrounding area of the automatic transmission fluid pressure test hole plug.
3. Automatic Transmission Fluid Pressure Test Hole Plug (1) » Remove Installation Procedure

Caution

Refer to Component Fastener Tightening Caution.

1. Automatic Transmission Fluid Pressure Test Hole Plug (1) » Install and tighten — Fastener Specifications
2. Check the transmission fluid level and fill as necessary. Transmission Fluid Level and Condition Check
3. Lower the vehicle.
