Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH)

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) Removal Procedure

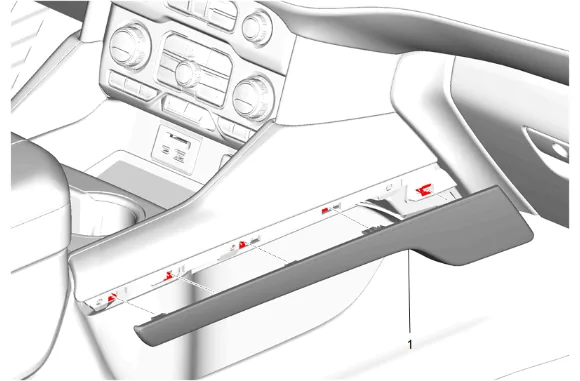

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

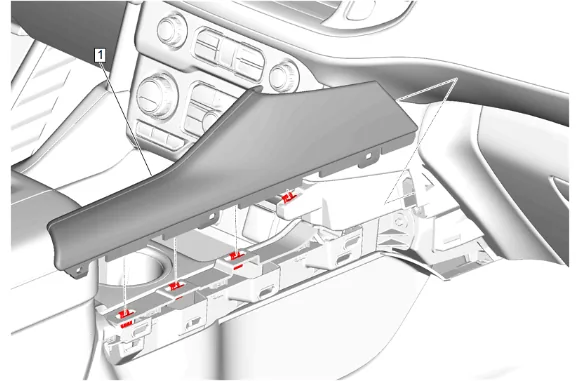

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

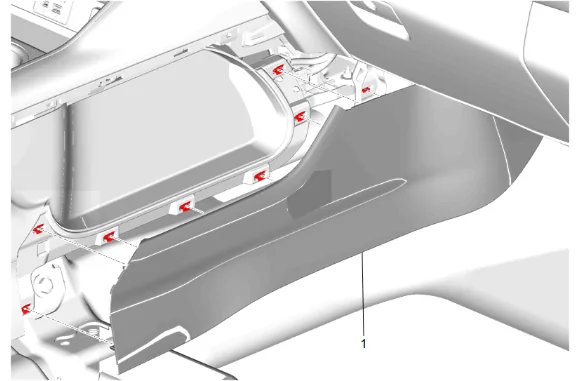

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) — figure 3

Note

Use a flat bladed plastic trim tool.

5. Move the front seat to access the retainers.
6. Front Floor Console Extension Panel (1) » Remove

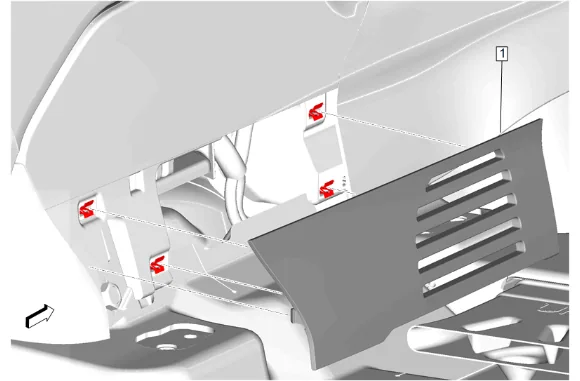

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Front Floor Console Bolt Access Hole Cover (1) » Remove

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) — figure 5

Note

You may have to slide the armrest back to better access the retainers.

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Rear Trim Lower Panel (1) » Remove

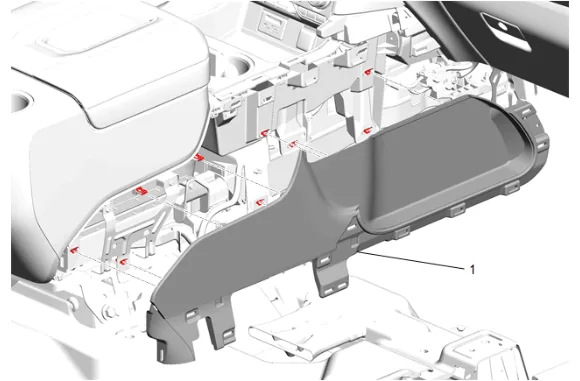

Front Floor Rear Console Side Trim Panel Replacement - Right Side (DCH) — figure 6

11. Using a flat-bladed plastic trim tool, release the retaining clips.

12. Disconnect and reposition harness as necessary.

13. Front Floor Rear Console Side Trim Panel (1) » Remove Installation Procedure

14. Connect and position the wiring harness.

15. Front Floor Rear Console Side Trim Panel (1) » Install

16. Front Floor Console Rear Trim Lower Panel (1) » Install

17. Front Floor Console Bolt Access Hole Cover (1) » Install

18. Front Floor Console Extension Panel (1) » Install

19. Front Floor Console Applique (1) » Install

20. Front Floor Console Lower Applique (1) » Install

21. Return the seat to its original position.
