Rear Seat Back Latch Strap Replacement (60 Percent)

Single Use Fasteners and Components Rear Seat Rivet Removal Procedure

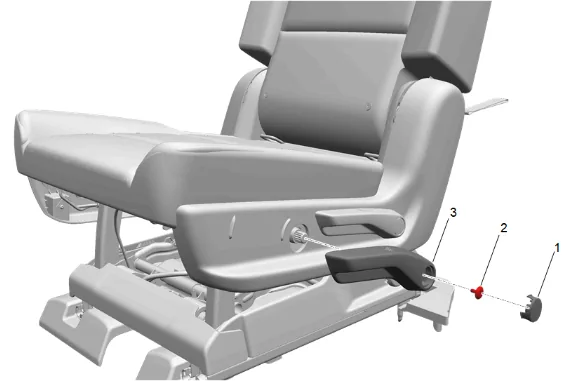

Rear Seat Back Latch Strap Replacement (60 Percent) — figure 1
Rear Seat Back Latch Strap Replacement (60 Percent) — figure 1
  1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
  2. Rear Seat Riser Bolt (2) » Remove
  3. Rear Seat Adjuster Handle (3) » Remove
Rear Seat Back Latch Strap Replacement (60 Percent) — figure 2
Rear Seat Back Latch Strap Replacement (60 Percent) — figure 2
  1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
  2. Rear Seat Riser Bolt (2) » Remove
  3. Rear Seat Recliner Handle (3) » Remove

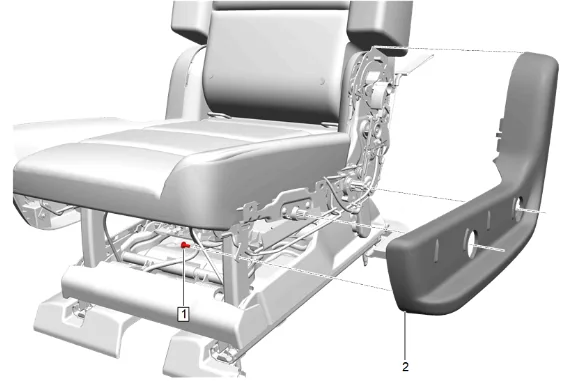

Rear Seat Back Latch Strap Replacement (60 Percent) — figure 3
Rear Seat Back Latch Strap Replacement (60 Percent) — figure 3
  1. Front Seat Bolt (1) » Remove
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove

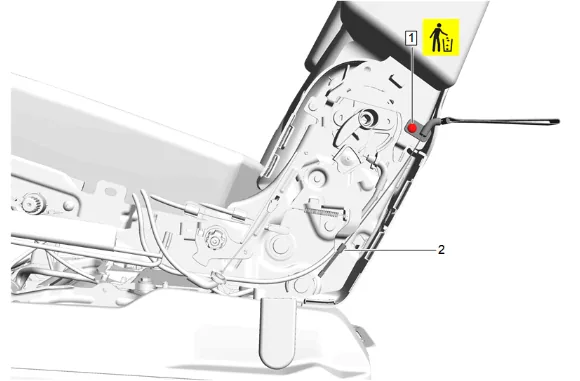

Rear Seat Back Latch Strap Replacement (60 Percent) — figure 4
Rear Seat Back Latch Strap Replacement (60 Percent) — figure 4

  1. Rear Seat Rivet (1) » Remove and DISCARD

  2. Release the cable end from the seat frame.

  3. Rear Seat Back Latch Strap (2) » Remove Installation Procedure

  4. Rear Seat Back Latch Strap (2) » Install

  5. Install the cable end into the seat frame.

  6. Rear Seat Rivet (1) » Install NEW

  7. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

  1. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

  2. Rear Seat Recliner Handle (3) » Install

  3. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

  4. Rear Seat Recliner Handle Bolt Cap (1) » Install

  5. Rear Seat Adjuster Handle (3) » Install

  6. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

  7. Rear Seat Recliner Handle Bolt Cap (1) » Install
