Transfer Case Skid Shield Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle.

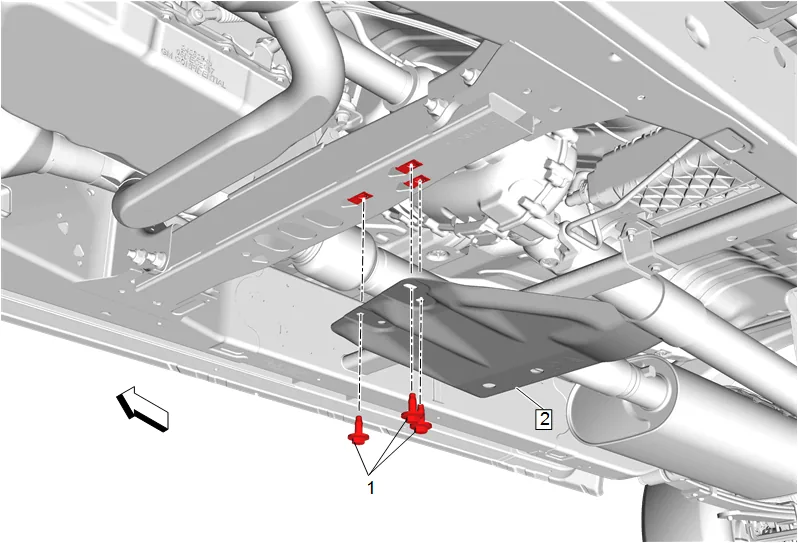

Transfer Case Skid Shield Replacement — figure 1
Transfer Case Skid Shield Replacement — figure 1

  1. Transfer Case Skid Shield Bolt (1) » Remove [3x]

  2. Transfer Case Skid Shield (2) » Remove Installation Procedure

  3. Transfer Case Skid Shield (2) » Install

  1. Transfer Case Skid Shield Bolt (1) » Install and tighten [3x] — Fastener Specifications
  2. Lower the vehicle.
