Front Wheelhouse Panel Bracket Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
Front Wheelhouse Panel Bracket Replacement — figure 1
Front Wheelhouse Panel Bracket Replacement — figure 1

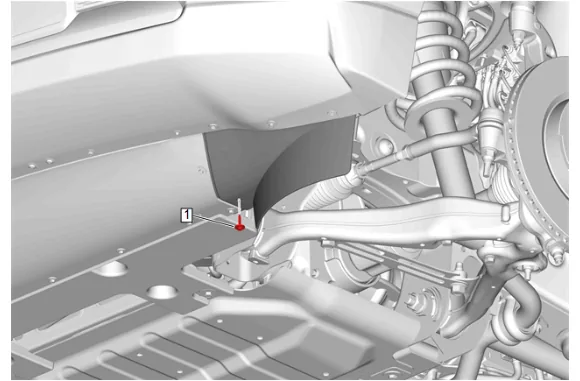

  1. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

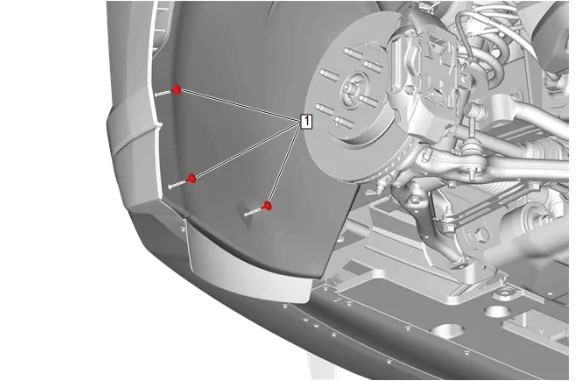

Front Wheelhouse Panel Bracket Replacement — figure 2
Front Wheelhouse Panel Bracket Replacement — figure 2
  1. Front Wheelhouse Liner Bolt (1) » Remove [3x]

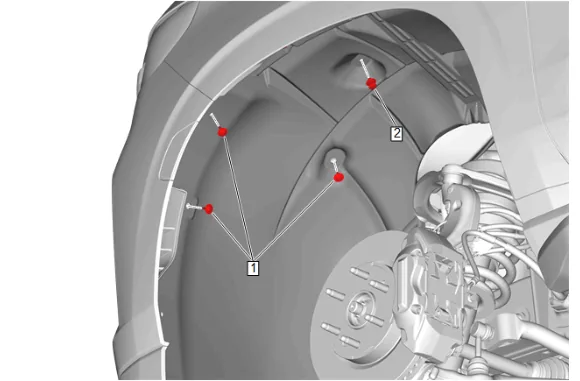

Front Wheelhouse Panel Bracket Replacement — figure 3
Front Wheelhouse Panel Bracket Replacement — figure 3
  1. Front Wheelhouse Liner Bolt (1) » Remove [3x]
  2. Front Wheelhouse Liner Retainer (2) » Remove
  3. Reposition the front half of the wheelhouse liner to gain access as needed.

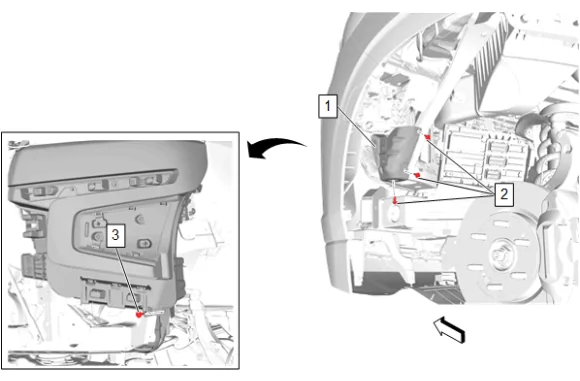

Front Wheelhouse Panel Bracket Replacement — figure 4
Front Wheelhouse Panel Bracket Replacement — figure 4

  1. Front Wheelhouse Front Panel Bolt (2) » Remove [3x]

  2. Headlamp Bolt (3) » Remove

  3. Front Wheelhouse Panel Bracket (1) » Remove Installation Procedure

  4. Front Wheelhouse Panel Bracket (1) » Install

  1. Headlamp Bolt (3) » Install and tighten — Fastener Specifications

  2. Front Wheelhouse Front Panel Bolt (2) » Install and tighten [3x] — Fastener Specifications

  3. Front Wheelhouse Liner Retainer (2) » Install

  4. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

  5. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

  6. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

  7. Lower the vehicle.
