Air Conditioning Compressor and Condenser Hose Replacement (LM2, 4WD)

Air Conditioning Compressor and Condenser Hose Replacement (LM2, 4WD) Single Use Fasteners and Components Air Conditioning Compressor and Condenser Hose Seal - Large [3x] Air Conditioning Compressor and Condenser Hose Seal - Small [2x] Transmission Fluid Cooler Seal [2x] Removal Procedure

1. Remove the charge air cooler, air conditioning condenser, engine cooler fan and engine radiator assembly. Charge Air Cooler, Condenser, Fan Motor, and Radiator Assembly Removal and Installation
2. Electrical Connector @ Air Conditioning Refrigerant Pressure Sensor » Disconnect

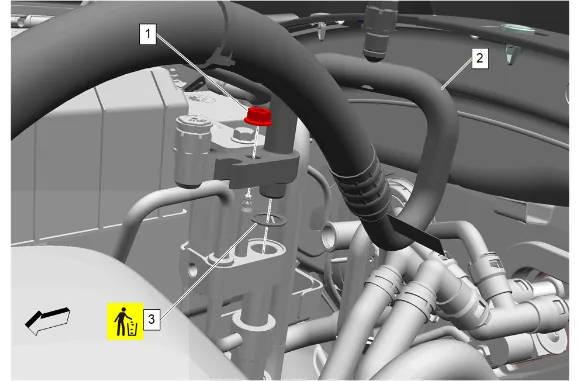

Air Conditioning Compressor and Condenser Hose Replacement (LM2, 4WD) — figure 1

3. Air Conditioning Compressor and Condenser Hose Nut (1) » Remove
4. Air Conditioning Compressor and Condenser Hose (2) » Remove
5. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Remove and DISCARD

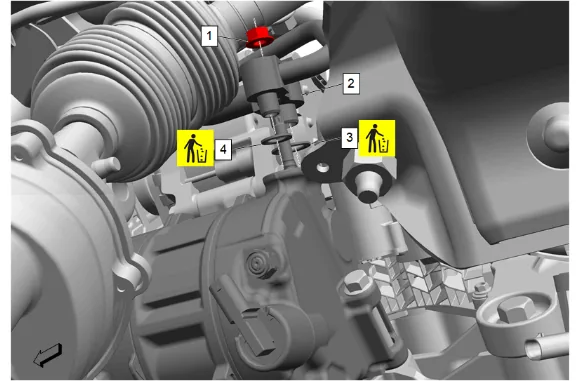

Air Conditioning Compressor and Condenser Hose Replacement (LM2, 4WD) — figure 2

6. Air Conditioning Compressor Nut (1) @ Air Conditioning Compressor » Remove
7. Air Conditioning Compressor and Condenser Hose (2) » Remove
8. Air Conditioning Compressor and Condenser Hose Seal - Large (3) @ Air Conditioning Compressor » Remove and DISCARD
9. Air Conditioning Compressor and Condenser Hose Seal - Small (4) @ Air Conditioning Compressor » Remove and DISCARD Installation Procedure

Caution

Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution.

1. Air Conditioning Compressor and Condenser Hose Seal - Large (3) @ Air Conditioning Compressor » Install NEW
2. Air Conditioning Compressor and Condenser Hose Seal - Small (4) @ Air Conditioning Compressor » Install NEW
3. Air Conditioning Compressor and Condenser Hose (2) @ Air Conditioning Compressor » Install

Caution

Refer to Fastener Caution.

4. Air Conditioning Compressor Nut (1) @ Air Conditioning Compressor » Install and tighten — Fastener Specifications

5. Air Conditioning Compressor and Condenser Hose Seal - Large (3) » Install NEW

6. Air Conditioning Compressor and Condenser Hose (2) » Install

7. Air Conditioning Compressor and Condenser Hose Nut (1) » Install and tighten — Fastener Specifications

8. Electrical Connector @ Air Conditioning Refrigerant Pressure Sensor » Connect

9. Install the charge air cooler, air conditioning condenser, engine cooler fan and engine radiator assembly. Charge Air Cooler, Condenser, Fan Motor, and Radiator Assembly Removal and Installation
