Front Compartment Side Rail Bracket Replacement

Materials Structure Adhesive Metal Panel Bonding Structural Rivet SR1 [4X] Fastener Specifications Removal Procedure

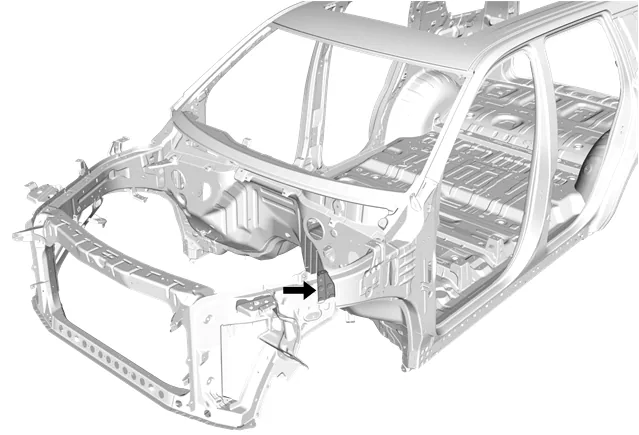

Front Compartment Side Rail Bracket Replacement — figure 1

Warning

Refer to Approved Equipment for Collision Repair Warning.

Warning

Refer to Collision Sectioning Warning.

Warning

Refer to Glass and Sheet Metal Handling Warning.

Note

Left shown, right similar.

Note

The fender bracket is mild steel. Mild Steel

Note

Refer to Collision Repair Specifications. Collision Repair Specifications

1. Disable the SIR system. SIR Disabling and Enabling.
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Remove all related panels and components.
4. Remove the sealers and anti-corrosion materials from the repair area as necessary. Anti-Corrosion Treatment and Repair

Front Compartment Side Rail Bracket Replacement — figure 2

Note

Do not damage or cut attaching panels and reinforcements.

5. Remove spot welds (1). [4x]

Front Compartment Side Rail Bracket Replacement — figure 3

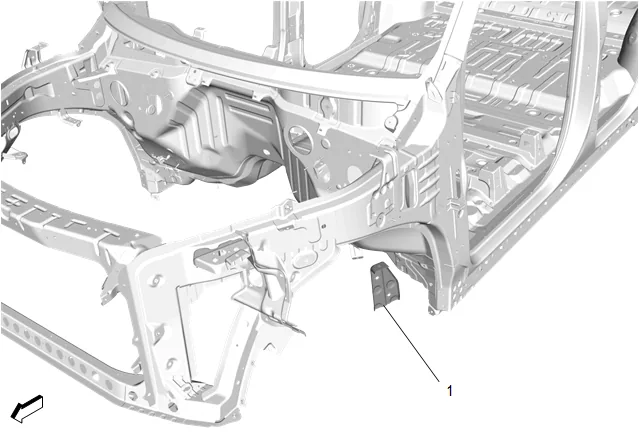

6. Remove fender bracket (1) from the vehicle. Installation Procedure

Note

Prepare fender bracket before installation.

1. Prepare fender bracket per installation requirements.

Note

Temporarily install the fender bracket for proper fit.

2. Position fender bracket (1) to vehicle using 3-dimensional measuring equipment.

Front Compartment Side Rail Bracket Replacement — figure 4

Note

There will be 2 holes predrilled in the new upper side rail to allow for proper alignment of the fender bracket.

Note

Use 6.7 mm (17/64”) holes for rivet installation.

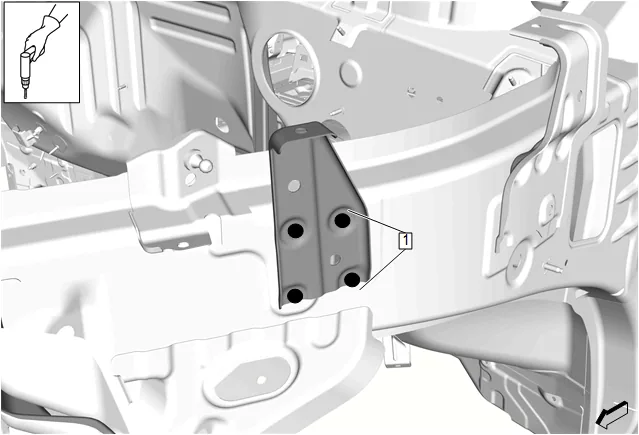

3. Drill 6.7 mm (17/64”) hole (1) through fender bracket for rivet installation. [4x]

4. Remove fender bracket (1) from the vehicle.

Front Compartment Side Rail Bracket Replacement — figure 5

Note

Only remove E-coat where adhesive will be applied.

5. Clean and prepare fender bracket and vehicle for adhesive according to adhesive manufacturer’s recommendations. Metal Panel Bonding

6. Apply structural adhesive (1) on the mating surfaces of fender bracket and vehicle according to adhesive manufacturer’s recommendations. Metal Panel Bonding

7. Install fender bracket (1) to vehicle and clamp into place.

Front Compartment Side Rail Bracket Replacement — figure 6

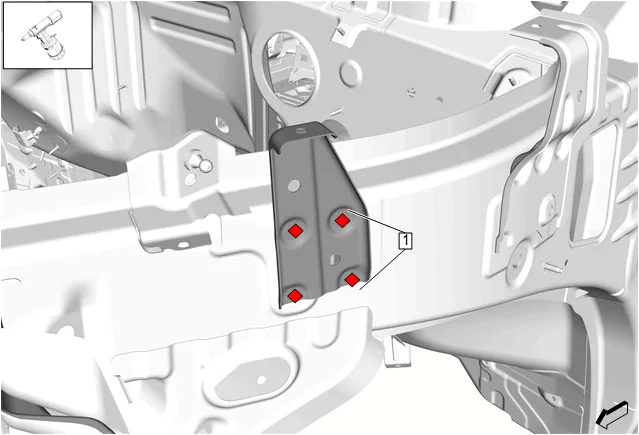

8. Install rivets (1) in fender bracket. [SR1 4x] Fastener Specifications
9. Apply the sealers and anti-corrosion materials to the repair area as necessary. Anti-Corrosion Treatment and Repair

Note

Before refinishing, refer to Anti-Corrosion Treatment and Repair

10. Paint the repaired area. Basecoat/Clearcoat Paint Systems.
11. Install all related panels and components.
12. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
13. Enable the SIR System. SIR Disabling and Enabling.
