Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back)

Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) Removal Procedure

Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 1
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 1

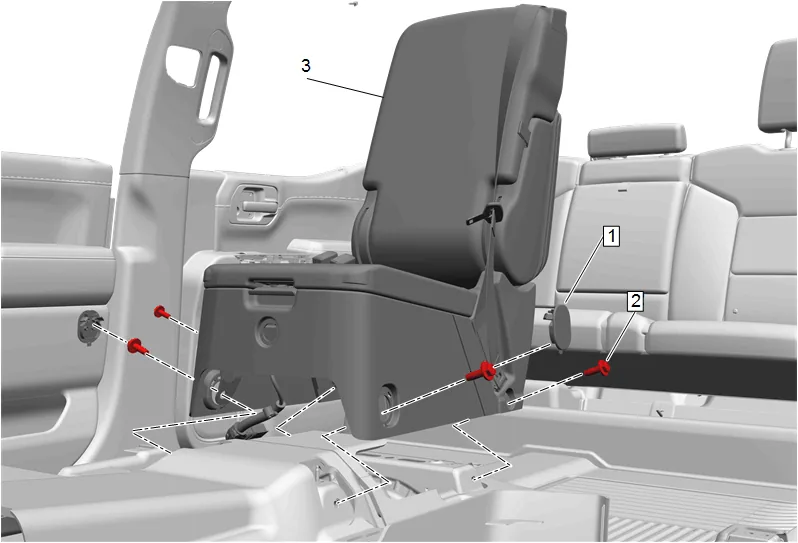

  1. Front Center Seat (3) » Remove — Front Center Seat Removal and Installation
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 2
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 2
  1. Using a suitable trim tool, release the retaining clips.

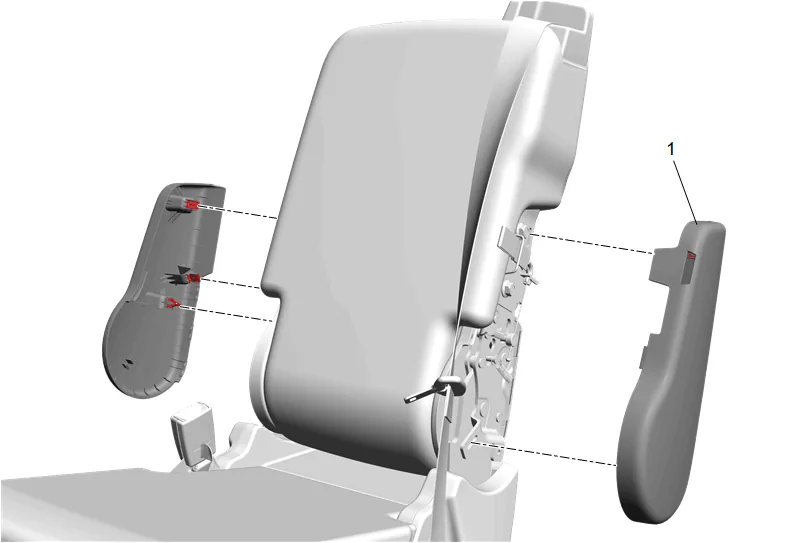

  2. Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Remove [2x]
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 3
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 3

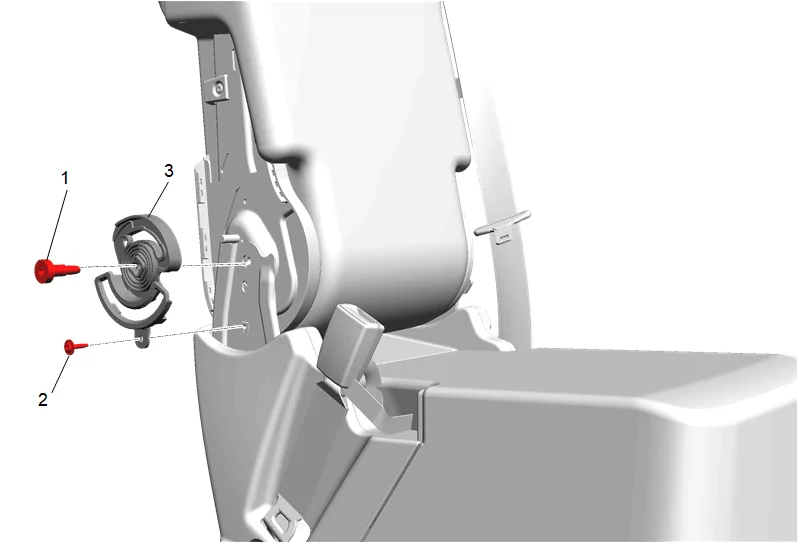

  1. Front Seat Center Armrest Pivot Bolt (1) » Remove
  2. Front Seat Armrest Adjust Retainer Bolt (2) » Remove
  3. Front Seat Armrest Adjust Retainer (3) » Remove
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 4
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 4
  1. Disconnect the latch release cable.
  2. Front Seat Center Armrest Bolt (1) » Remove [2x]
  3. Front Center Seat Armrest (2) » Reposition
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 5
Front Seat Center Armrest Hinge Finish Inner Cover Replacement (Seat Back) — figure 5

  1. Using a suitable trim tool, release the retaining clip.

  2. Front Seat Center Armrest Hinge Finish Inner Cover (1) » Remove Installation Procedure

  3. Front Seat Center Armrest Hinge Finish Inner Cover (1) » Install

  4. Front Center Seat Armrest (2) » Install

  1. Front Seat Center Armrest Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the latch release cable.

  3. Front Seat Armrest Adjust Retainer (3) » Install

  4. Front Seat Armrest Adjust Retainer Bolt (2) » Install and tighten — Fastener Specifications

  5. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 7.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 7.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 7.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 7.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

  6. Front Seat Center Armrest Pivot Bolt (1) » Install and tighten — Fastener Specifications

  7. Front Seat Center Armrest Hinge Finish Cover - Upper (1) » Install [2x]

  8. Front Center Seat (3) » Install — Front Center Seat Removal and Installation
