Rearview Driver Information Camera Replacement (with UV2)

Rearview Driver Information Camera Replacement (with UV2) Removal Procedure

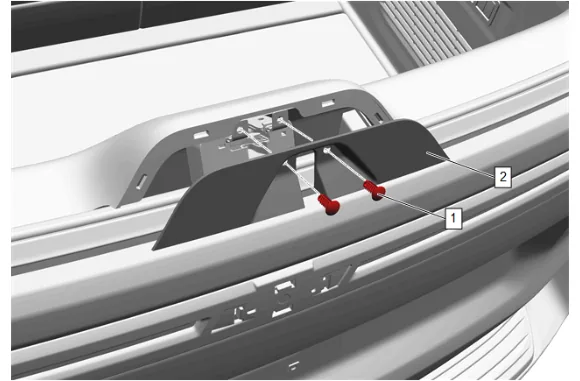

Rearview Driver Information Camera Replacement (with UV2) — figure 1

1. Open the liftgate window.
2. Use a small flat-bladed tool to remove the 2 panel locators (1).
3. Liftgate Lower Trim Finish Panel Access Hole Cover(2) » Remove

Rearview Driver Information Camera Replacement (with UV2) — figure 2

4. Use the appropriate trim tool to release the liftgate upper center trim finish panel (1) from the liftgate inner panel.
5. Liftgate Upper Center Trim Finish Panel (1) » Remove

Rearview Driver Information Camera Replacement (with UV2) — figure 3

6. Use a flat-bladed trim tool to aid in the removal of the liftgate upper side trim finish panels (1) from the liftgate.
7. Liftgate Upper Side Trim Finish Panel (1) » Remove [2x]

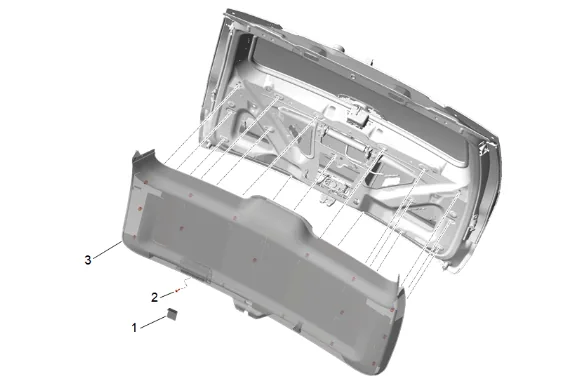

Rearview Driver Information Camera Replacement (with UV2) — figure 4

8. Use a flat-bladed trim tool to aid in the removal of the rear compartment lid inner panel trim hole plug (1).
9. Liftgate Lower Trim Finish Panel Bolt (2) » Remove
10. Disconnect the electrical connector.
11. Liftgate Lower Trim Finish Panel (3) » Remove

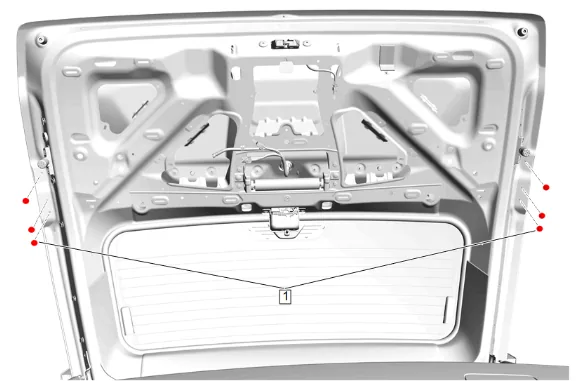

Rearview Driver Information Camera Replacement (with UV2) — figure 5

12. Disconnect the electrical connector.
13. Liftgate Side Sensor » Remove [2x]
14. Rear Closure Center Applique Bolt (1) » Remove [6x]

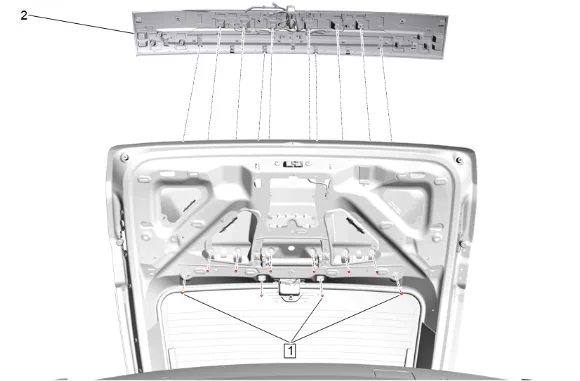

Rearview Driver Information Camera Replacement (with UV2) — figure 6

Note

Observe the mounting and location of the grommet to ensure proper reinstallation.

15. Disconnect all electrical connectors.
16. Disconnect the washer hose, If equipped.
17. Rear Closure Center Applique Nut (1) » Remove [10x]
18. Release the retainers.
19. Rear Closure Center Applique (2) » Remove

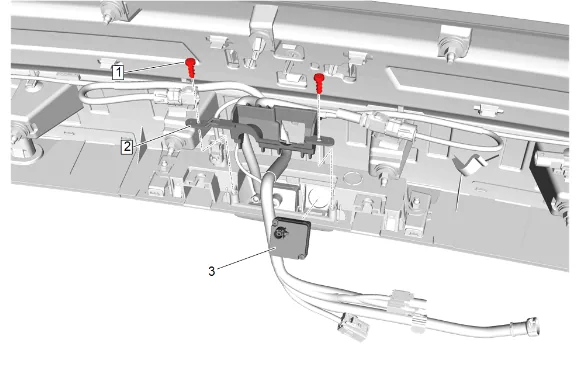

Rearview Driver Information Camera Replacement (with UV2) — figure 7

20. Disconnect the electrical connector.
21. Rearview Driver Information Camera Bracket Bolt (1) » Remove [2x]
22. Rearview Driver Information Camera Bracket (2) » Remove

Note

Observe the mounting and location of the rearview driver information camera to ensure proper reinstallation.

23. Rearview Driver Information Camera (3) » Remove Installation Procedure

24. Rearview Driver Information Camera (3) » Install

25. Rearview Driver Information Camera Bracket (2) » Install

Caution

Refer to Fastener Caution.

3. Rearview Driver Information Camera Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

4. Rear Closure Center Applique (2) » Install

5. Rear Closure Center Applique Nut (1) » Install and tighten [10x] — Fastener Specifications

6. Connect the washer hose, If equipped.

7. Connect all electrical connectors.

8. Rear Closure Center Applique Bolt (1) » Install and tighten [6x] — Fastener Specifications

9. Liftgate Side Sensor » Install [2x]

10. Connect the electrical connector.

11. Connect the electrical connector.

12. Liftgate Lower Trim Finish Panel (3) » Install

13. Liftgate Lower Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

14. Rear Compartment Lid Inner Panel Trim Hole Plug(1) » Install

15. Liftgate Upper Side Trim Finish Panel (1) » Install [2x]

16. Liftgate Upper Center Trim Finish Panel (1) » Install

17. Liftgate Lower Trim Finish Panel Access Hole Cover(2) » Install

18. Liftgate Trim Finish Panel Locator(1) » Install [2x]

19. Close the liftgate window.

20. Perform the camera calibration procedure. Video Processing Control Module Calibration
