Timing Chain and Components

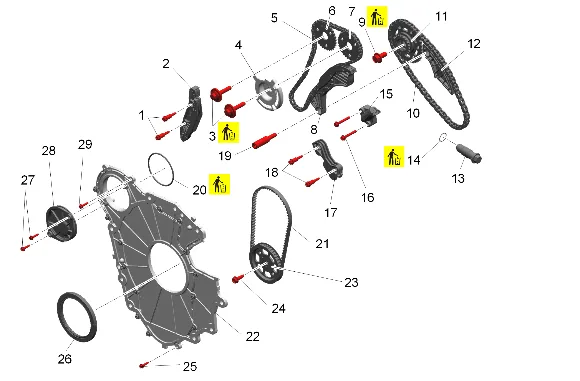

Timing Chain and Components — figure 1

(1) Timing Chain Guide Bolt [2x] (2) Timing Chain Guide (3) Camshaft Sprocket Bolt [2x] (4) Camshaft Position Sensor Exciter Wheel (5) Secondary Timing Chain (6) Camshaft Sprocket (7) Camshaft Sprocket (8) Timing Chain Guide (9) Fuel Injection Pump Bolt (10) Timing Chain (11) Fuel Injection Pump Driven Sprocket (12) Timing Chain Guide (13) Timing Chain Tensioner (14) Timing Chain Tensioner Gasket (15) Timing Chain Tensioner (16) Timing Chain Tensioner Bolt [2x] (17) Timing Chain Guide (18) Timing Chain Guide Bolt [2x] (19) Timing Chain Tensioner Shoe Bolt (20) Fuel Pump Access Hole Cover Seal (21) Timing Belt (22) Timing Chain Lower Cover (23) Oil Pump Sprocket (24) Oil Pump Drive Bolt (25) Timing Chain Cover Bolt [15x] (26) Crankshaft Rear Oil Seal (27) Timing Chain Cover Bolt [2x] (28) Fuel Pump Access Hole Cover (29) Timing Chain Cover Bolt
