Engine Oil Cooler Connector Replacement - Lower

Removal Procedure

1. Front Wheelhouse Liner - Right Side » Remove — Front Wheelhouse Liner Replacement

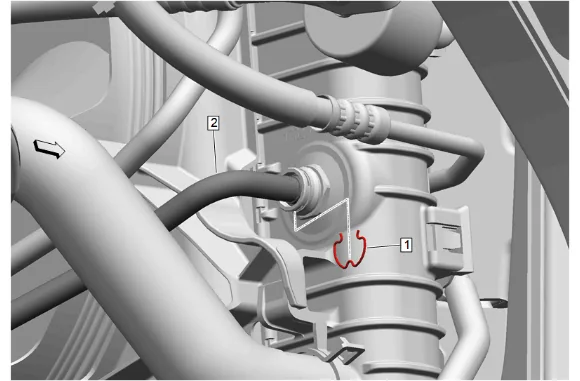

Engine Oil Cooler Connector Replacement - Lower — figure 1

2. Engine Oil Cooler Connector Retainer (1) » Remove
3. Engine Oil Cooler Hose (2) @ Engine Oil Cooler Connector » Disconnect

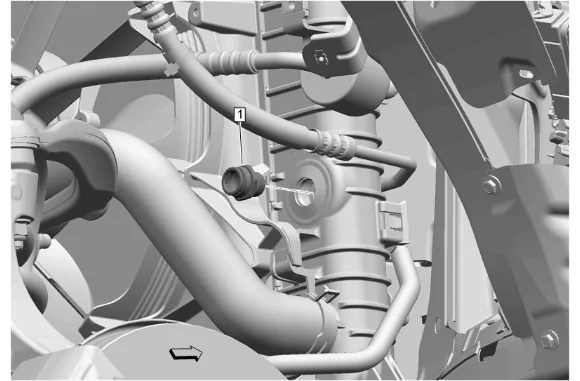

Engine Oil Cooler Connector Replacement - Lower — figure 2

4. Engine Oil Cooler Connector (1) » Remove Installation Procedure

Caution

Refer to Component Fastener Tightening Caution.

1. Engine Oil Cooler Connector (1) » Install — Fastener Specifications

2. Engine Oil Cooler Hose (2) @ Engine Oil Cooler Connector » Connect

3. Engine Oil Cooler Connector Retainer (1) » Install

4. Front Wheelhouse Liner - Right Side » Install — Front Wheelhouse Liner Replacement
