Tahoe / Yukon Service Manual

Front Grille Filler Replacement

Removal Procedure

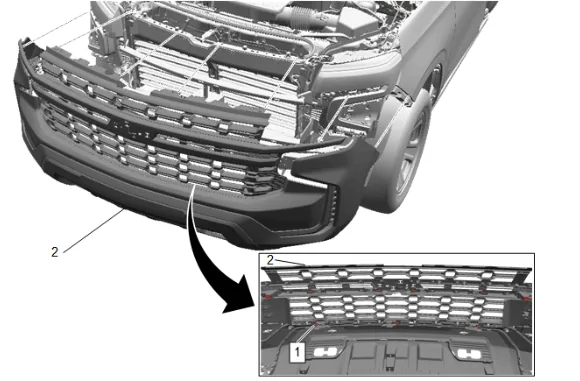

Front Grille Filler Replacement — figure 1
Front Grille Filler Replacement — figure 1
  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

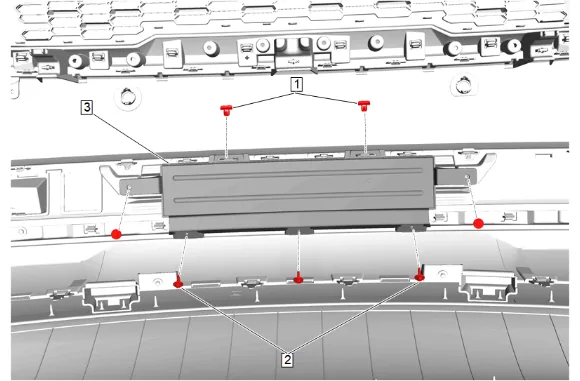

Front Grille Filler Replacement — figure 2
Front Grille Filler Replacement — figure 2

  1. Front Bumper Fascia Lower Bracket Bolt (2) » Remove [5x]

  2. Front Bumper Filler Retainer (1) » Remove [2x]

  3. Front Grille Filler (3) » Remove Installation Procedure

  4. Front Grille Filler (3) » Install

  5. Front Bumper Filler Retainer (1) » Install [2x]

  1. Front Bumper Fascia Bolt (2) » Install and tighten [5x] — Fastener Specifications

  2. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
