Column Lock Module Replacement

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Warning

After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result. Removal Procedure

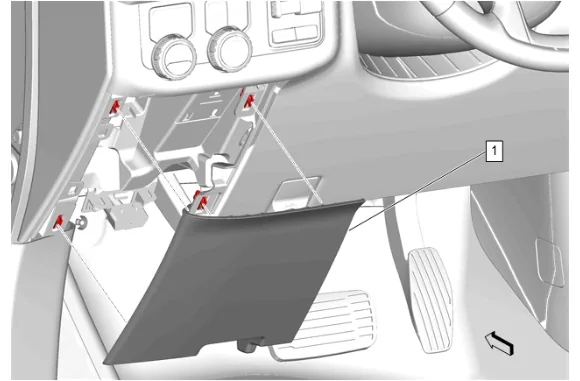

Column Lock Module Replacement — figure 1

1. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

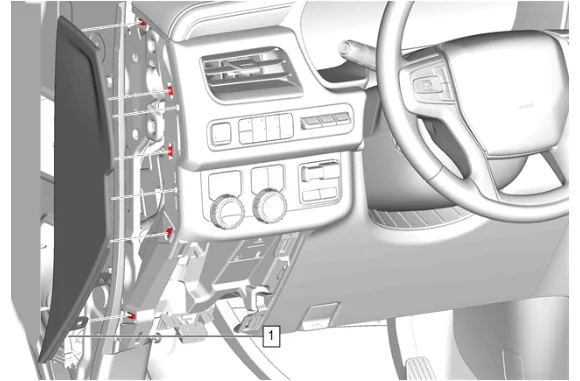

Column Lock Module Replacement — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

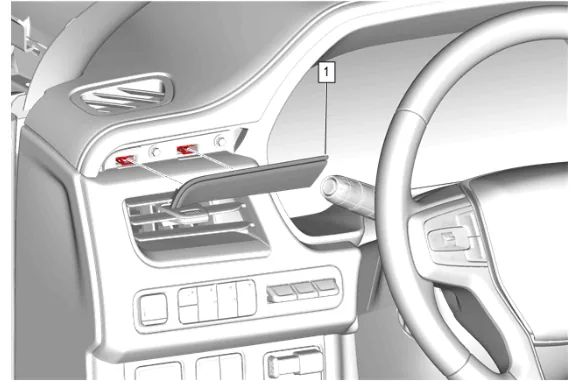

Column Lock Module Replacement — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Instrument Panel Trim Plate Applique (1) » Remove

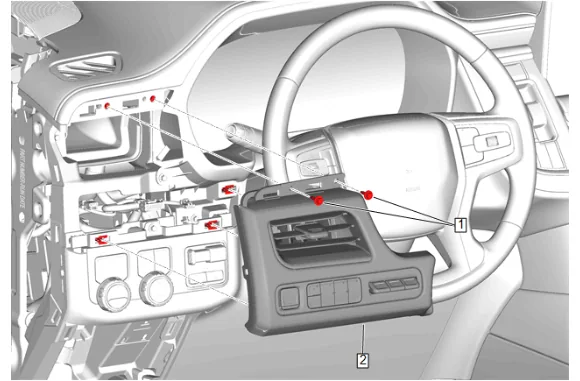

Column Lock Module Replacement — figure 4

6. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
7. Disconnect the electrical connectors.
8. Instrument Panel Trim Pad (2) » Remove

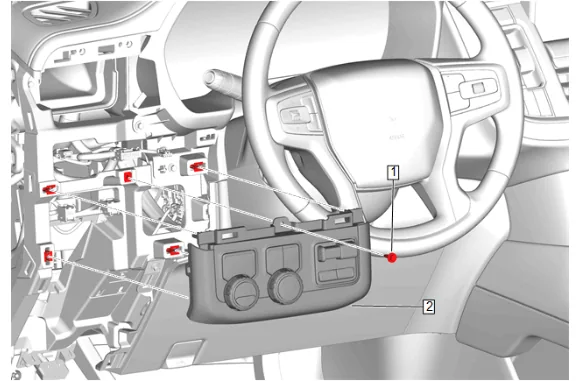

Column Lock Module Replacement — figure 5

9. Instrument Panel Switch Trim Plate Bolt (1) » Remove
10. Disconnect the electrical connectors.
11. Instrument Panel Switch Trim Plate (2) » Remove

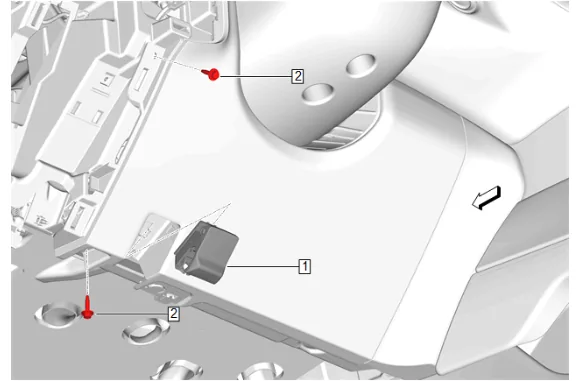

Column Lock Module Replacement — figure 6

12. Hood Primary Latch Release Cable Handle (1) » Release
13. Instrument Panel Knee Bolster Bolt (2) » Remove [2x]

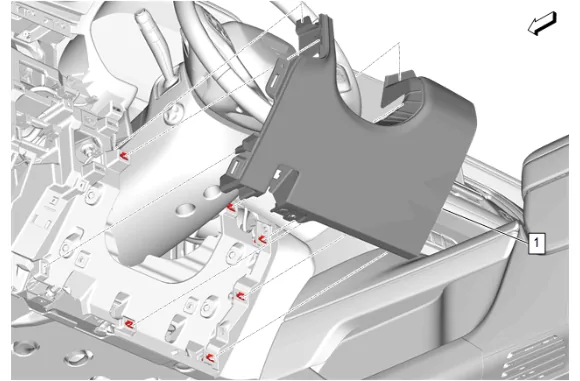

Column Lock Module Replacement — figure 7

Note

You may have to push down on the lower steering column closeout to clear the instrument panel cluster trim plate.

14. Instrument Panel Knee Bolster (1) » Remove

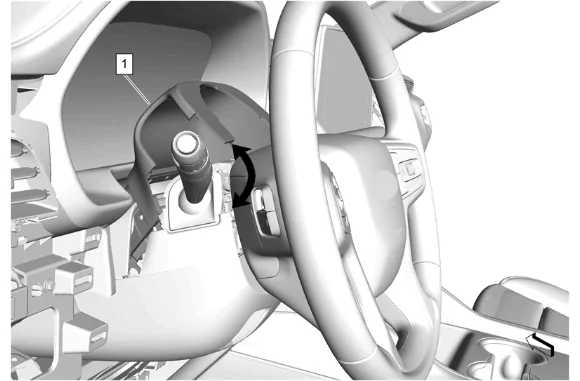

Column Lock Module Replacement — figure 8

15. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

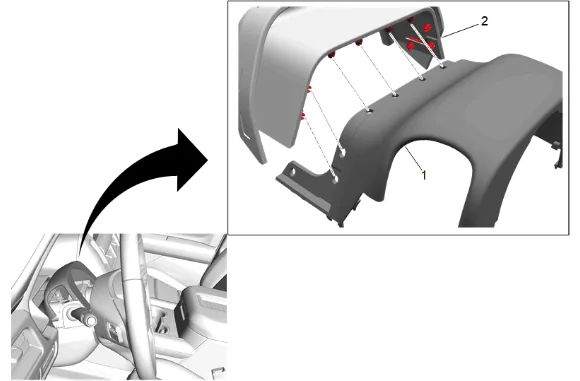

Column Lock Module Replacement — figure 9

16. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2).

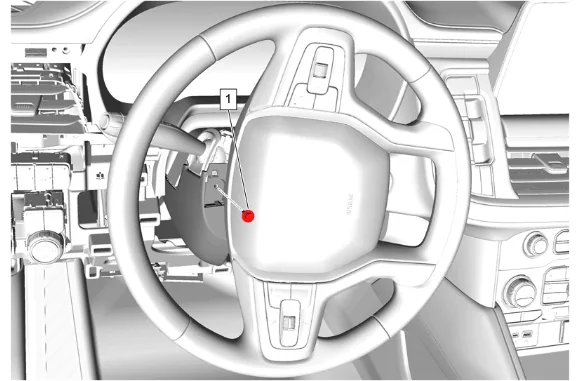

Column Lock Module Replacement — figure 10

17. Turn the steering wheel approximately 90 degrees to the left of the centered position.
18. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove

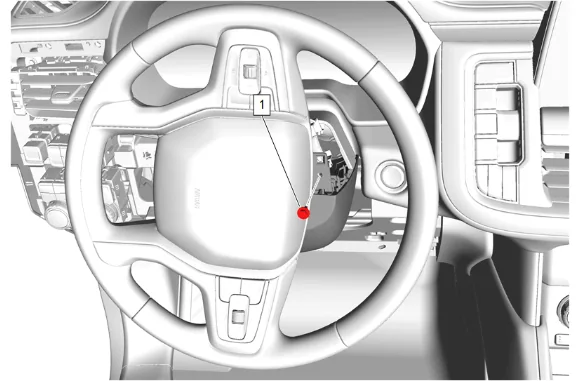

Column Lock Module Replacement — figure 11

19. Turn the steering wheel approximately 90 degrees to the right of the centered position.
20. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
21. Turn the steering wheel to the centered position.

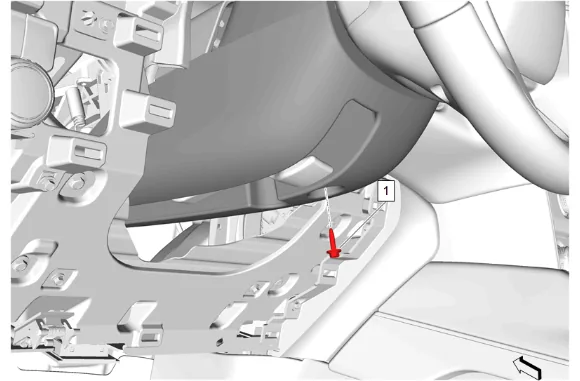

Column Lock Module Replacement — figure 12

22. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
23. { If equipped } Electrical Connector » Disconnect

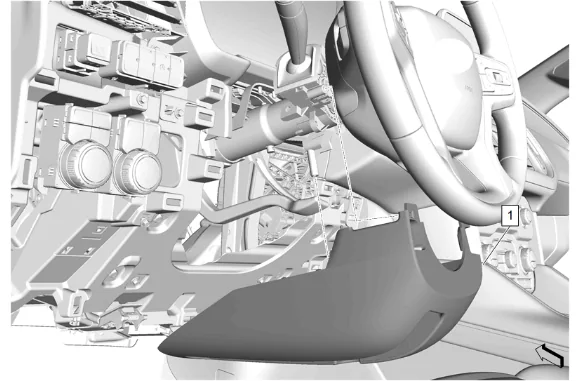

Column Lock Module Replacement — figure 13

24. Instrument Panel Steering Column Lower Trim Cover (1) » Remove

Caution

With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: The steering column The intermediate shaft(s) The steering gear After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil’s centering procedure to re-center SIR Coil.

25. Install an appropriate device to prevent steering column from rotating.
26. Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation

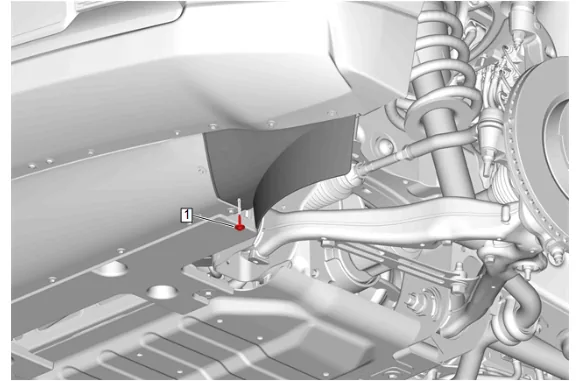

Column Lock Module Replacement — figure 14

27. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

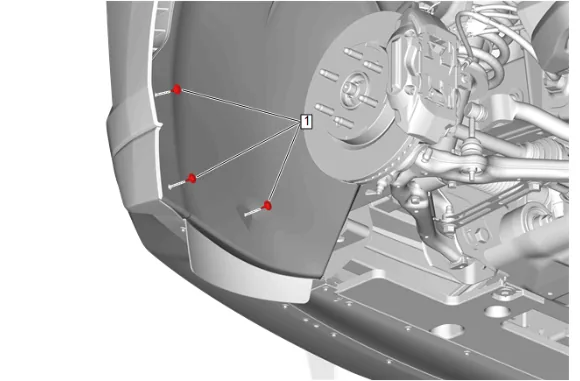

Column Lock Module Replacement — figure 15

28. Front Wheelhouse Liner Bolt (1) » Remove [3x]

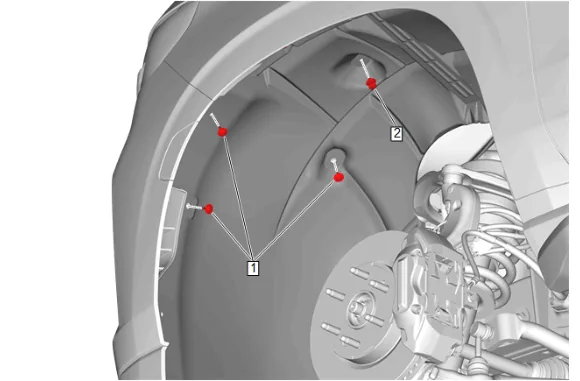

Column Lock Module Replacement — figure 16

Note

Quantity of fasteners may vary based on option content.

29. Front Wheelhouse Liner Bolt (1) » Remove [3x]
30. Front Wheelhouse Liner Retainer (2) » Remove

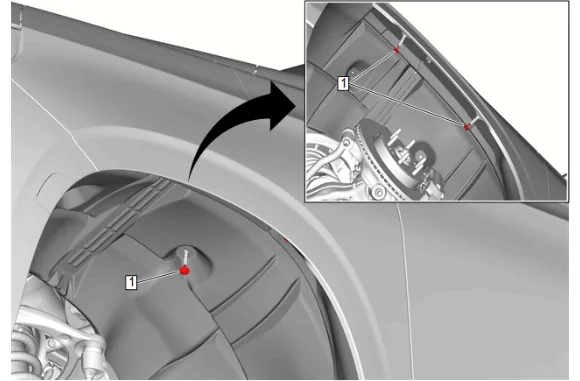

Column Lock Module Replacement — figure 17

31. Front Wheelhouse Liner Bolt (1) » Remove [3x]

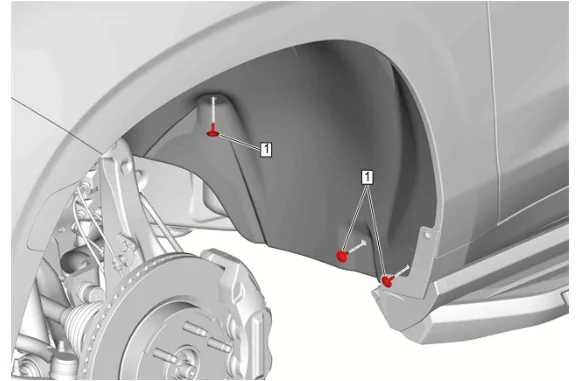

Column Lock Module Replacement — figure 18

32. Front Wheelhouse Liner Bolt (1) » Remove [3x]

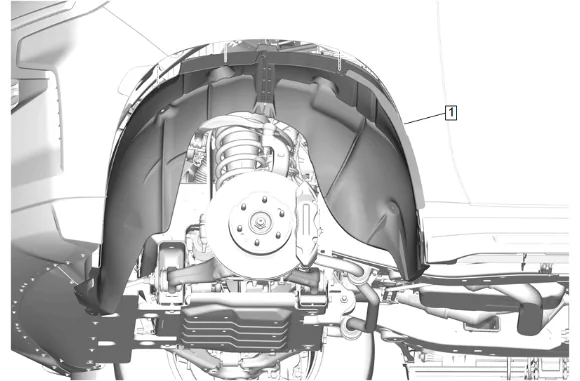

Column Lock Module Replacement — figure 19

33. Front Wheelhouse Liner (1) » Remove

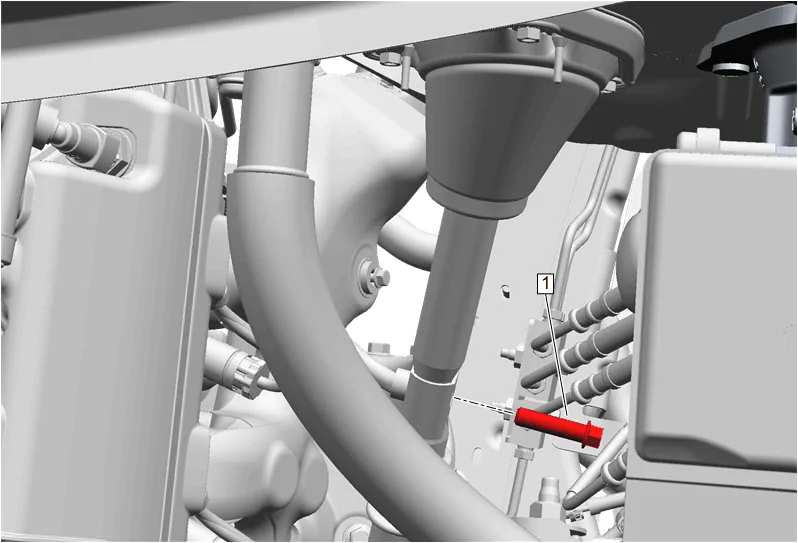

Column Lock Module Replacement — figure 20

34. Mid Intermediate Steering Shaft Bolt (1) » Remove

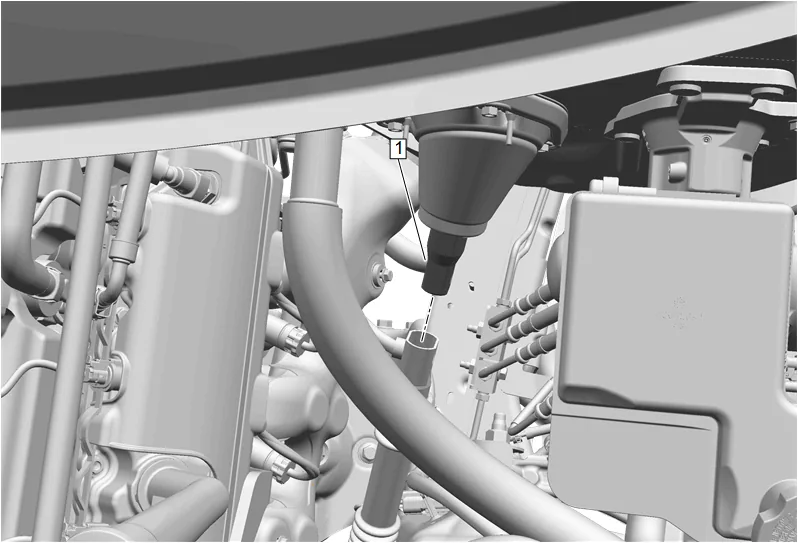

Column Lock Module Replacement — figure 21

35. Upper Intermediate Steering Shaft (1) @ Intermediate Steering Shaft » Separate
36. Disable the SIR system. SIR Disabling and Enabling

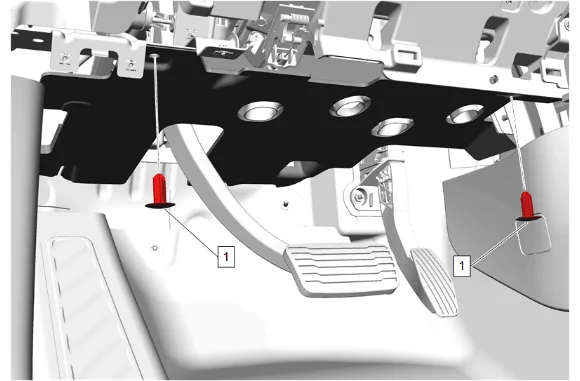

Column Lock Module Replacement — figure 22

37. Instrument Panel Lower Insulator Retainer (1) » Remove [2x]

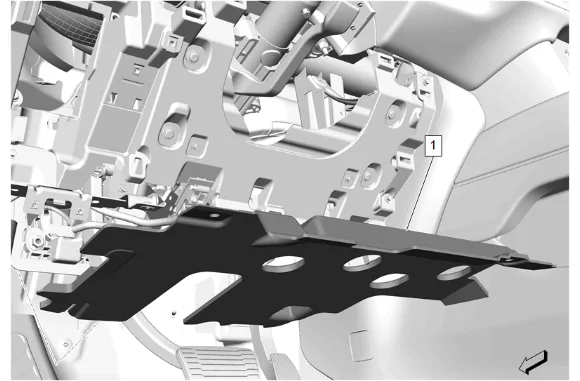

Column Lock Module Replacement — figure 23

38. Instrument Panel Lower Trim Panel Insulator (1) » Remove

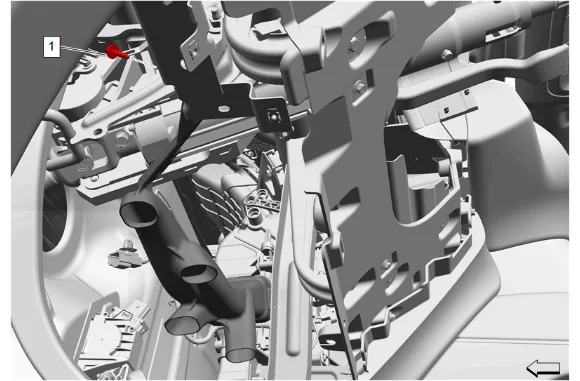

Column Lock Module Replacement — figure 24

39. Floor Front Air Outlet Duct Bolt (1) » Remove

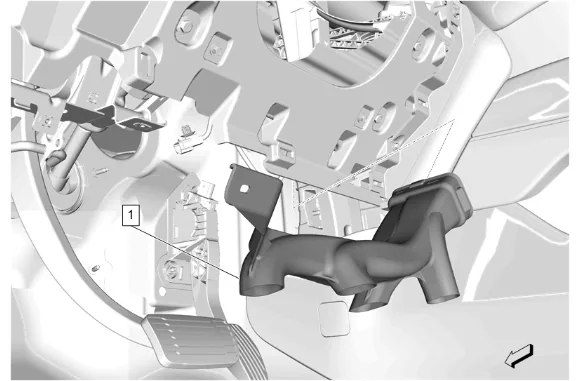

Column Lock Module Replacement — figure 25

40. Floor Front Air Outlet Duct - Left Side (1) » Remove

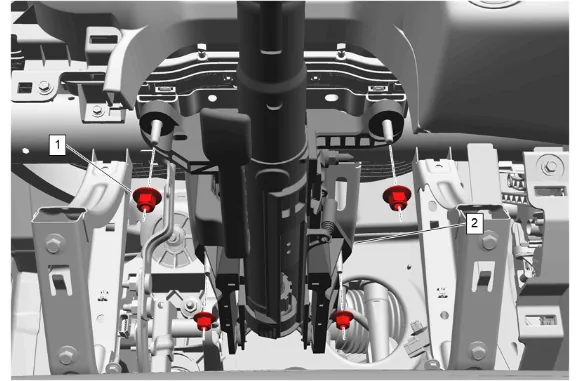

Column Lock Module Replacement — figure 26

41. Steering Column Nut (1) » Remove [4x]
42. Disconnect the electrical connectors attached to the steering column.

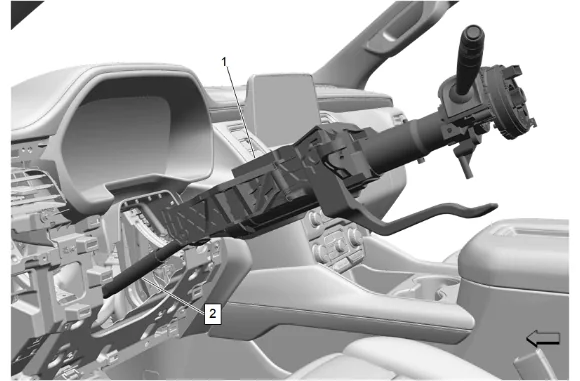

Column Lock Module Replacement — figure 27

43. Remove the steering column (1) with the upper intermediate steering shaft (2) attached.

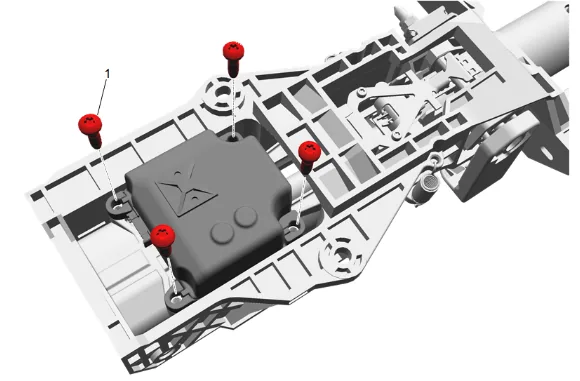

Column Lock Module Replacement — figure 28

44. Steering Column Lock Control Module Bolt (1) » Remove [4x]

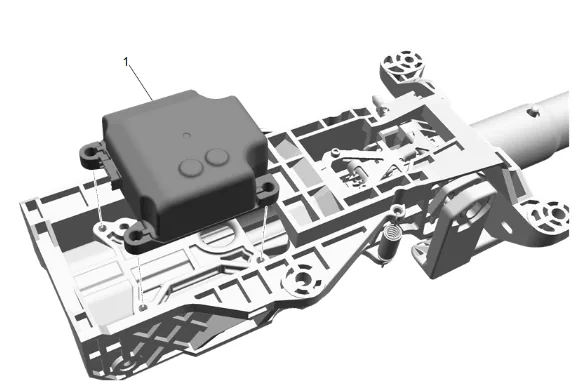

Column Lock Module Replacement — figure 29

45. Column Lock Module (1) » Remove Installation Procedure

46. Column Lock Module (1) » Install

Caution

Refer to Fastener Caution.

2. Steering Column Lock Control Module Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Install the steering column (1) with the upper intermediate steering shaft (2) attached.

4. Connect the electrical connectors attached to the steering column.

5. Steering Column Nut (1) » Install and tighten [4x] — Fastener Specifications

6. Floor Front Air Outlet Duct - Left Side (1) » Install

7. Floor Front Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

8. Instrument Panel Lower Trim Panel Insulator (1) » Install

9. Instrument Panel Lower Insulator Retainer (1) » Install [2x]

10. Enable the SIR System. SIR Disabling and Enabling

11. Upper Intermediate Steering Shaft (1) @ Intermediate Steering Shaft » Install

12. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 12.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 12.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 12.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 12.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Caution

Refer to Fastener Caution.

13. Mid Intermediate Steering Shaft Bolt (1) » Install and tighten — Fastener Specifications

14. Front Wheelhouse Liner (1) » Install

15. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

16. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

17. Front Wheelhouse Liner Retainer (2) » Install

Note

Quantity of fasteners may vary based on option content.

18. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

19. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

20. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

21. Install the left front tire and wheel assembly. Tire and Wheel Removal and Installation

22. Remove the device used to prevent steering column rotation.

23. Instrument Panel Steering Column Lower Trim Cover (1) » Install

24. { If equipped } Electrical Connector » Connect

25. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

26. Turn the steering wheel approximately 90 degrees to the right of the centered position.

27. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

28. Turn the steering wheel approximately 90 degrees to the left of the centered position.

29. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

30. Turn the steering wheel to the centered position.

31. Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

32. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

33. Instrument Panel Knee Bolster (1) » Install

34. Instrument Panel Knee Bolster Bolt (2) » Install and tighten [2x] — Fastener Specifications

35. Hood Primary Latch Release Cable Handle (1) » Install

36. Connect the electrical connectors.

37. Instrument Panel Switch Trim Plate (2) » Install

38. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

39. Connect the electrical connectors.

40. Instrument Panel Trim Pad (2) » Install

41. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

42. Instrument Panel Trim Plate Applique (1) » Install

43. Instrument Panel Fuse Block Access Hole Cover (1) » Install

44. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

45. Program the column lock module. Control Module References
