Front Seat Outer Adjuster Rear Finish Cover Replacement

Removal Procedure

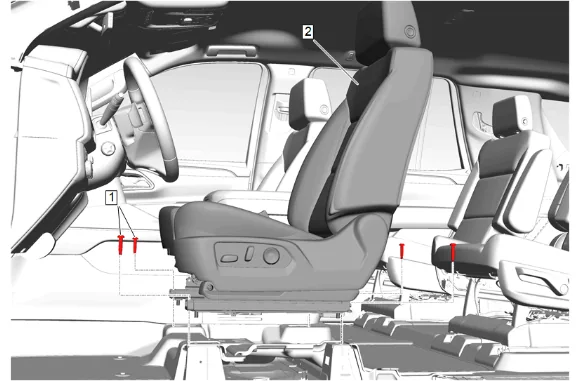

Front Seat Outer Adjuster Rear Finish Cover Replacement — figure 1

1. Front Seat (2) » Remove — Front Seat Removal and Installation

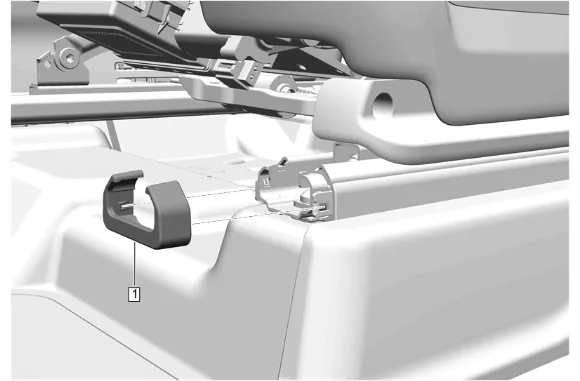

Front Seat Outer Adjuster Rear Finish Cover Replacement — figure 2

2. Using a suitable plastic trim tool, release the two retaining tabs on the front seat adjuster track end cap (1).
3. Front Seat Adjuster Track End Cap (1) » Remove

Front Seat Outer Adjuster Rear Finish Cover Replacement — figure 3

4. Front Seat Outer Adjuster Rear Finish Cover (1) » Remove Installation Procedure

5. Front Seat Outer Adjuster Rear Finish Cover (1) » Install

6. Front Seat Adjuster Track End Cap (1) » Install

7. Front Seat (2) » Install — Front Seat Removal and Installation
