Front Seat Inner Adjuster Front Finish Cover Replacement

Removal Procedure

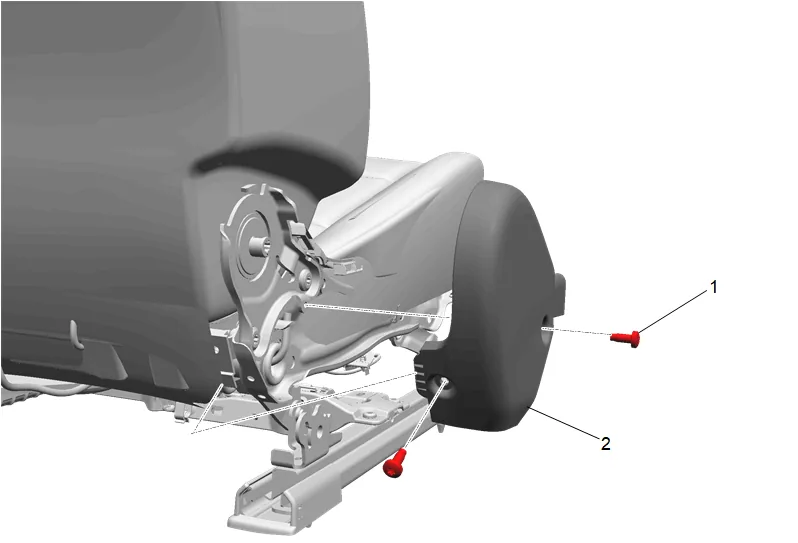

Front Seat Inner Adjuster Front Finish Cover Replacement — figure 1

1. Reposition the seat as necessary.

2. Front Seat Bolt (1) » Remove [2x]

3. Front Seat Inner Adjuster Front Finish Cover (2) » Remove Installation Procedure

4. Front Seat Inner Adjuster Front Finish Cover (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications
3. Return the seat to its original position.
