Rocker Panel Front Molding Replacement (BVE)
Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle.

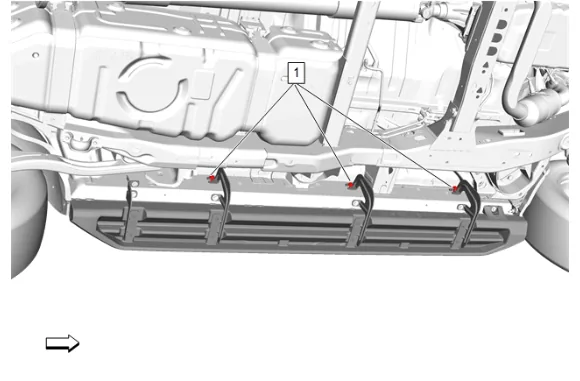

- Assist Step Bolt (1) @ Rocker Panel » Loosen [3x]

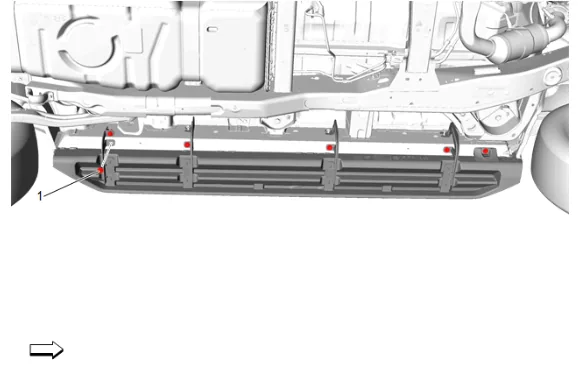

- Assist Step Bolt (1) @ Rocker Panel » Remove [6x]

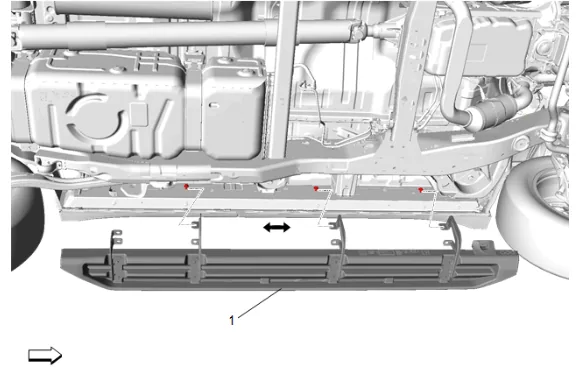

- Slide the assist step (1), out from under the loosened bolts, and remove.
- Open both front and rear side doors

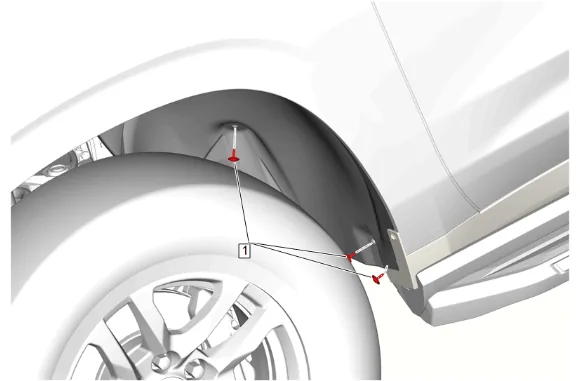

- Front Wheelhouse Liner Bolt (1) » Remove [3x]
- Rocker Panel Molding Bolt (1) » Remove
- Front Wheelhouse Liner (2) » Reposition

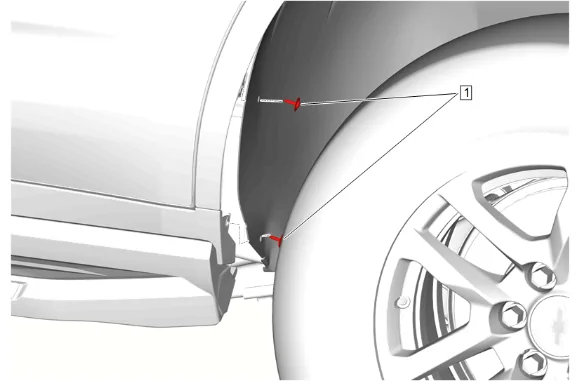

- Rear Wheelhouse Liner Bolt (1) » Remove [2x]
- Using an appropriate trim tool, release the lower rocker panel molding retainers and pull the rocker panel molding (1) away from the body side outer panel.
- Using an appropriate trim tool, release the upper rocker panel molding retainers and pull the rocker panel molding (1) away from the body side outer panel.

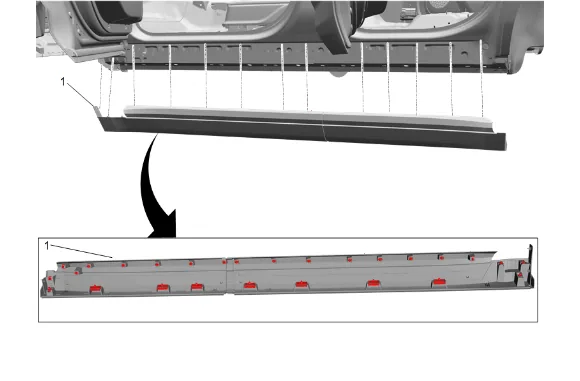

- Rocker Panel Molding (1) » Remove
-
Remove the front rocker panel (1) from the rear rocker panel Installation Procedure
-
Install the front rocker panel (1) to the rear rocker panel
-
Position the rocker panel molding (1) to the vehicle and seat the upper rocker panel molding retainers into the body side outer panel.
-
Seat the lower rocker panel molding retainers into the body side outer panel.
-
Rear Wheelhouse Liner Bolt (1) » Install and tighten [2x] — Fastener Specifications
-
Position the front wheelhouse liner (2) to its original location.
-
Rocker Panel Molding Bolt (1) » Install and tighten — Fastener Specifications
-
Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications
-
Close both front and rear side doors.
-
Install the assist step (1) under the loosened bolts.
-
Assist Step Bolt (1) @ Rocker Panel » Install and tighten [6x] — Fastener Specifications
-
Assist Step Bolt (1) @ Rocker Panel » Tighten [3x] — Fastener Specifications
-
Lower the vehicle.
