Fuel Tank Filler Vent Hose Replacement (Long Wheelbase)

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5599676 Single Use Fasteners and Components Fuel Tank Filler Vent Hose Strap [2x]

  1. Relieve the fuel system pressure. Fuel Pressure Relief
  2. Drain the fuel tank. Fuel Tank Draining
  3. Raise and support the vehicle. Lifting and Jacking the Vehicle

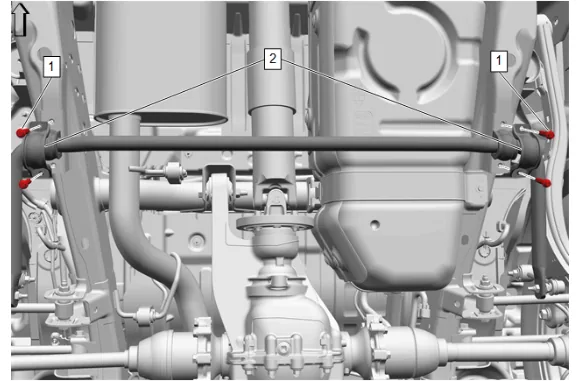

Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 1
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 1
  1. Rear Stabilizer Shaft Insulator Clamp Bolt (1) » Remove [4x]
  2. Remove both rear stabilizer shaft clamp  (2) from the frame and let the stabilizer shaft hang.

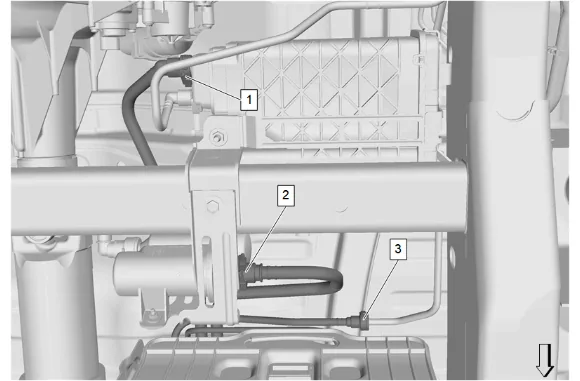

Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 2
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 2
  1. Evaporative Emission Canister Vent Hose (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Evaporative Emission Canister Filter Hose (2) » Disconnect — Plastic Collar Quick Connect Fitting Service
  3. Fuel Feed Hose (3) » Disconnect — Plastic Collar Quick Connect Fitting Service

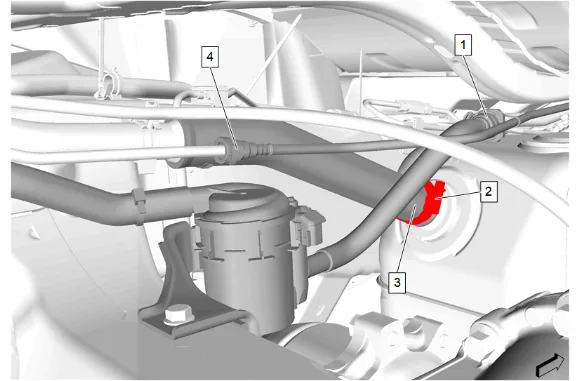

Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 3
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 3
  1. Evaporative Emission Canister Solenoid (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Fuel Tank Filler Hose Clamp (2) » Loosen
  3. Fuel Tank Filler Hose (3) » Remove
  4. Fuel Tank Filler Vent Hose (4) » Disconnect — Plastic Collar Quick Connect Fitting Service

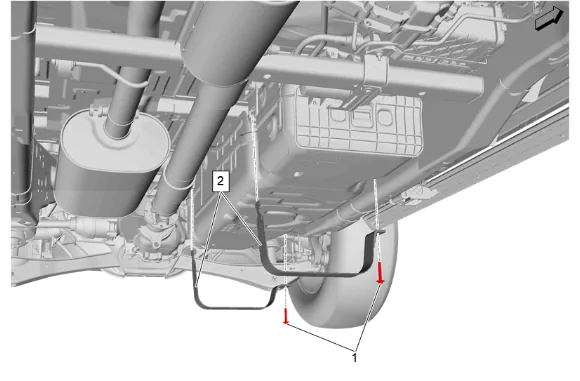

Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 4
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 4
  1. Place a suitable adjustable jack under the fuel tank.
  2. Strap fuel tank to jack.
  3. Fuel Tank Strap Bolt (1) » Remove [2x]
  4. Fuel Tank Strap (2) » Remove [2x]

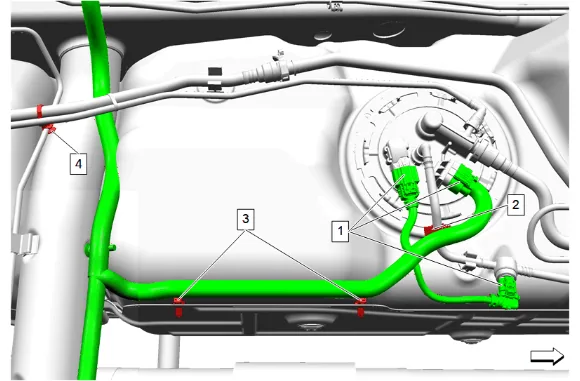

Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 5
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 5
  1. Lower the fuel tank, allowing clearance to access connections at the top of the tank.
  2. Electrical Connector (1) » Disconnect [3x]
  3. Fuel Feed Hose Clip (2) » Disengage
  4. Wiring Harness Retainer (3) » Disengage [2x]
  5. Retainer (4) » Unclip

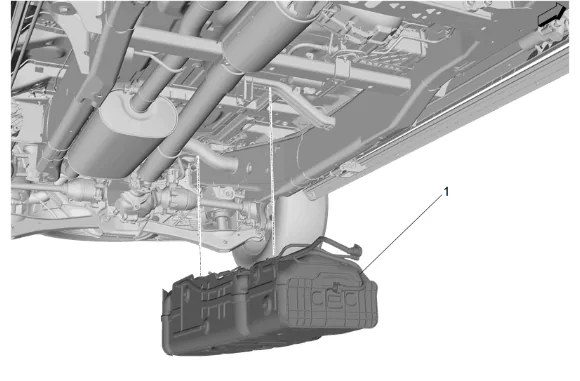

Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 6
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 6
  1. Fuel Tank (1) » Remove
  2. Remove the straps holding the fuel tank to the jack.
  3. Remove the jack.
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 7
Fuel Tank Filler Vent Hose Replacement (Long Wheelbase) — figure 7

  1. Fuel Tank Filler Vent Hose Strap (1) » Remove and DISCARD [2x]

  2. Fuel Tank Filler Vent Hose (2) » Disconnect — Plastic Collar Quick Connect Fitting Service

  3. Fuel Tank Filler Vent Hose (2) » Remove Installation Procedure

  4. Fuel Tank Filler Vent Hose (2) » Install

  5. Fuel Tank Filler Vent Hose (2) » Connect — Plastic Collar Quick Connect Fitting Service

  6. Fuel Tank Filler Vent Hose Strap (1) » Install NEW [2x]

  7. Place a suitable adjustable jack under the fuel tank.

  8. Strap fuel tank to jack.

  9. Raise the fuel tank  (1), allowing access to connections at the top of the tank.

  10. Retainer (4) » Clip

  11. Wiring Harness Retainer (3) » Engage [2x]

  12. Fuel Feed Hose Clip (2) » Engage

  13. Electrical Connector (1) » Connect [3x]

  14. Raise the tank to the installed position.

  15. Fuel Tank Strap (2) » Install [2x]

  1. Fuel Tank Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Remove the straps holding the fuel tank to the jack.

  3. Remove the jack.

  4. Fuel Tank Filler Vent Hose (4) » Connect — Plastic Collar Quick Connect Fitting Service

  5. Fuel Tank Filler Hose (3) » Install

  6. Fuel Tank Filler Hose Clamp (2) » Tighten — Fastener Specifications

  7. Evaporative Emission Canister Solenoid (1) » Connect — Plastic Collar Quick Connect Fitting Service

  8. Fuel Feed Hose (3) » Connect — Plastic Collar Quick Connect Fitting Service

  9. Evaporative Emission Canister Filter Hose (2) » Connect — Plastic Collar Quick Connect Fitting Service

  10. Evaporative Emission Canister Vent Hose (1) » Connect — Plastic Collar Quick Connect Fitting Service

  11. Raise rear stabilizer shaft into installed position.

  12. Rear Stabilizer Shaft Clamp (2) » Install [2x]

  13. Rear Stabilizer Shaft Insulator Clamp Bolt (1) » Install and tighten [4x] — Fastener Specifications

  14. Lower the vehicle.

  15. Refill the fuel tank.

  16. Inspect for fuel leaks.
