Front Bumper Fascia Upper Stiffener Replacement

Removal Procedure

Front Bumper Fascia Upper Stiffener Replacement — figure 1
Front Bumper Fascia Upper Stiffener Replacement — figure 1

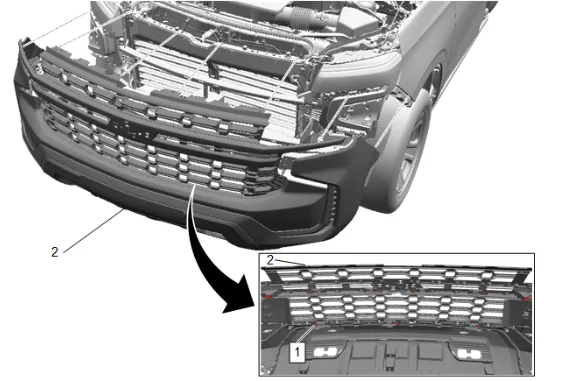

  1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation
Front Bumper Fascia Upper Stiffener Replacement — figure 2
Front Bumper Fascia Upper Stiffener Replacement — figure 2

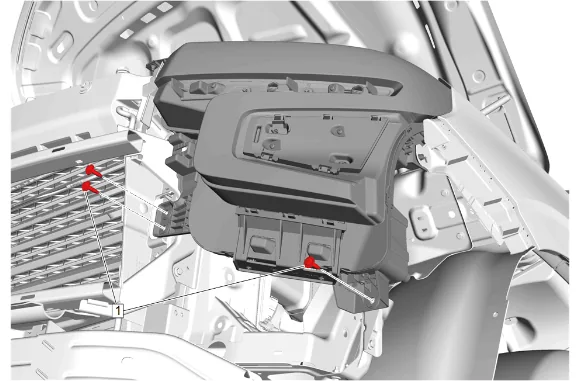

  1. Headlamp Bolt - Left Side and Right Side (1) » Remove [6x]
Front Bumper Fascia Upper Stiffener Replacement — figure 3
Front Bumper Fascia Upper Stiffener Replacement — figure 3

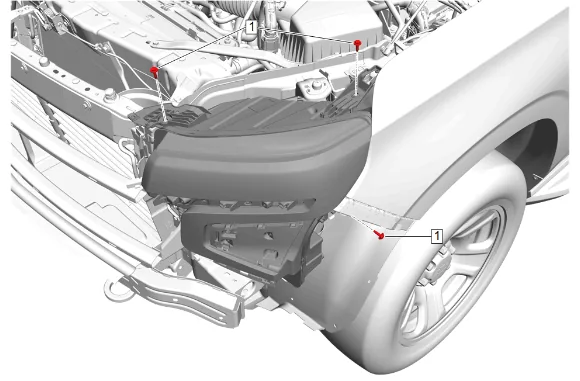

  1. Headlamp Bolt - Left Side and Right Side (1) » Remove [6x]
Front Bumper Fascia Upper Stiffener Replacement — figure 4
Front Bumper Fascia Upper Stiffener Replacement — figure 4

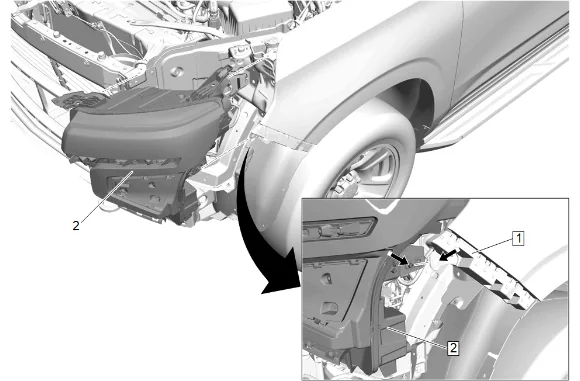

  1. Release the front headlamp guide pin from the front bumper fascia guide (1).
  2. Front Headlamp - Left Side and Right Side (2) » Remove [2x]
  3. Release the wiring harness retaining tab.
  4. Disconnect all electrical connectors.
Front Bumper Fascia Upper Stiffener Replacement — figure 5
Front Bumper Fascia Upper Stiffener Replacement — figure 5

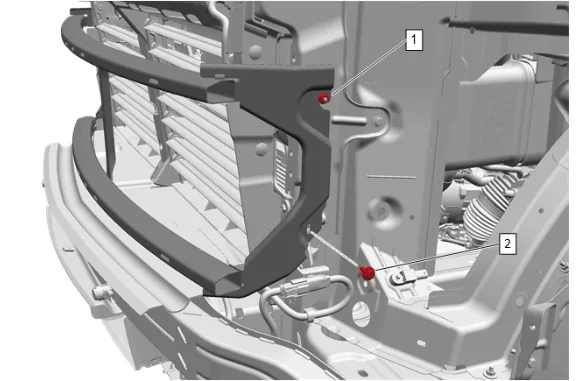

  1. Loosen the left and right side front bumper fascia upper stiffener nut (1).
  2. Remove the left and right side front bumper fascia upper stiffener bolt (2).
Front Bumper Fascia Upper Stiffener Replacement — figure 6
Front Bumper Fascia Upper Stiffener Replacement — figure 6

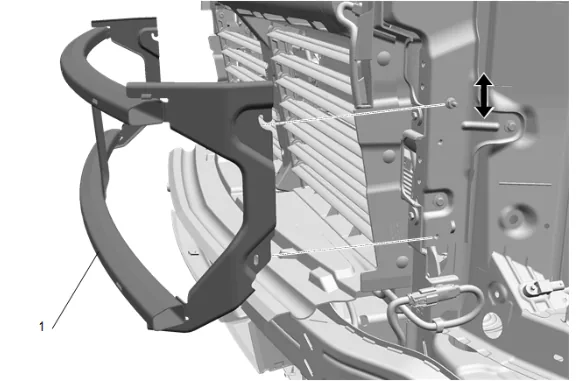

  1. Pull the front bumper fascia upper stiffener (1) up and out over the stud. Installation Procedure

  2. Front Bumper Fascia Upper Stiffener (1) » Install

  1. Install and tighten the left and right side front bumper fascia upper stiffener bolt (2). Fastener Specifications
  2. Tighten the left and right side front bumper fascia upper stiffener nut (1). Fastener Specifications
  1. Connect all electrical connectors.
  2. Secure the wiring harness retaining tab.
  3. Front Headlamp - Left Side and Right Side (2) » Install [2x]
  4. Secure the front headlamp guide pin to the front bumper fascia guide (1).
  1. Headlamp Bolt - Left Side and Right Side (1) » Install and tighten [6x] — Fastener Specifications

  1. Headlamp Bolt - Left Side and Right Side (1) » Install and tighten [6x] — Fastener Specifications

  2. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation

  3. After installation, aim the front headlamps. Front Headlamp Aiming
